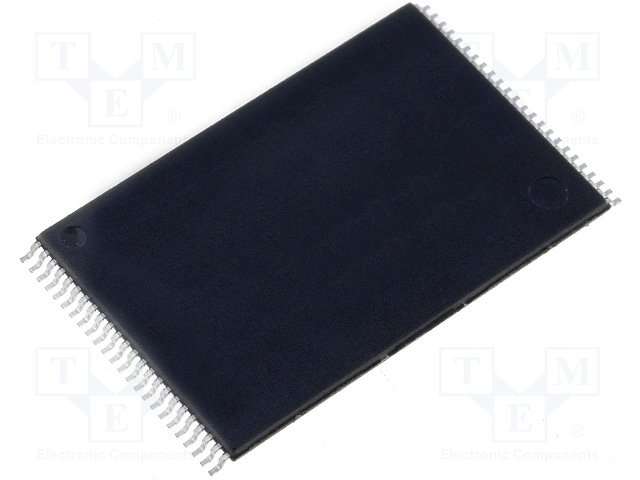

SST39VF800A-70-4I-EKE - Microchip
Parallel Flash, 2.7 - 3.6 V, 8 Mbit, x16, 70 ns, -40°C to +125°C, TSOP-48, RoHS
Technical Details
| Projected EOL Date | 2034-08-27 |
| Access Time | 70ns |
| Address Bus Width | 19b |
| Case/Package | TSOP |
| Country of Assembly | South Korea, Taiwan |
| Country of Fabrication | China |
| Country of Origin | South Korea, Taiwan |
| Data Bus Width | 16b |
| Density | 8Mb |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Harmonized Tariff Schedule (HTS) Code | 8542.32.0051 |
| Interface | Parallel |
| Lead Free | Lead Free |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | REL |
| Max Operating Temperature | 85°C |
| Max Supply Current | 30mA |
| Max Supply Voltage | 3.6V |
| Memory Size | 1MB |
| Memory Type | FLASH, NOR |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 2.7V |
| Nominal Supply Current | 30mA |
| Number of Pins | 48 |
| Number of Words | 512000 |
| Operating Supply Voltage | 3.3V |
| Radiation Hardening | No |
| REACH SVHC | No |
| RoHS | Compliant |
| Schedule B | 8542320050 |
| Sync/Async | Asynchronous |
| Word Size | 16b |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : No
