TC1411NVOA713 - Microchip
Tape & Reel (TR) TC1411N Low-Side 2006 gate driver 35ns -40C~150C TJ 1A 1A 470mW
Technical Details
| Projected EOL Date | 2034-04-18 |
| Case/Package | SOIC |
| Country of Assembly | Thailand |
| Country of Fabrication | United States of America |
| Country of Origin | Thailand |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Fall Time | 35ns |
| Harmonized Tariff Schedule (HTS) Code | 8542.39.0060 |
| Introduction Date | 2006-04-18 |
| Lead Free | Lead Free |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | REL |
| Max Operating Temperature | 125°C |
| Max Output Current | 1A |
| Max Power Dissipation | 470mW |
| Max Supply Voltage | 16V |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 4.5V |
| Mount | Surface Mount |
| Nominal Supply Current | 500µA |
| Number of Drivers | 1 |
| Number of Outputs | 1 |
| Number of Pins | 8 |
| Packaging | Tape and Reel |
| Power Dissipation | 470mW |
| Propagation Delay | 40ns |
| Rise Time | 35ns |
| RoHS | Compliant |
| Turn-On Delay Time | 40ns |
Compliance
RoHS : Unconfirmed

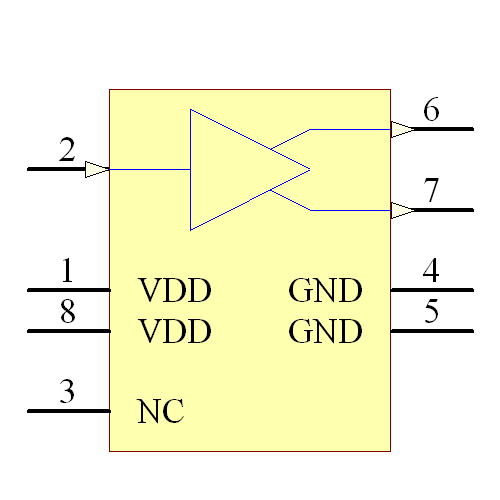

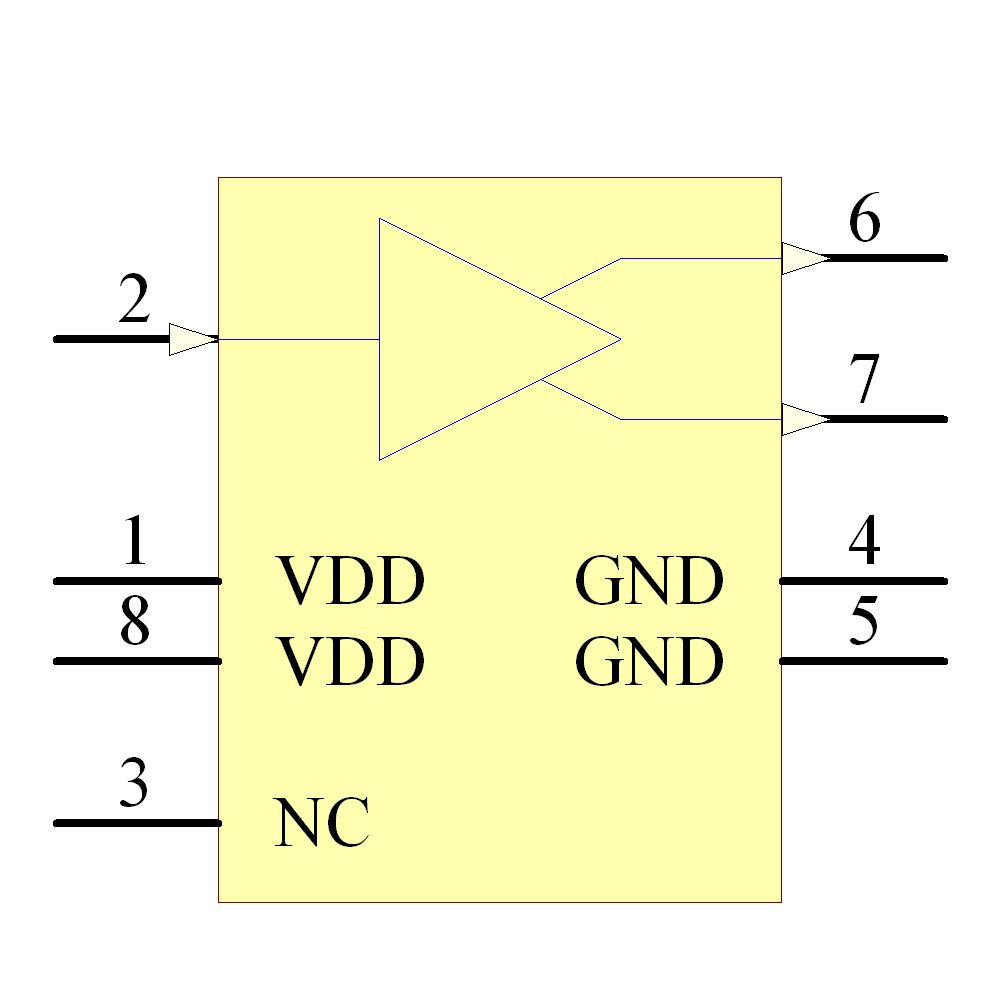

Images
