TC4420EMF713 - Microchip
Tape & Reel (TR) TC4420 Low-Side 2001 gate driver 35ns -40C~150C TJ 6A 6A 0.8V 2.4V
Technical Details
| Projected EOL Date | 2034-10-21 |
| Case/Package | DFN |
| Country of Assembly | Philippines, Thailand |
| Country of Fabrication | United States of America |
| Country of Origin | Philippines, Thailand |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Fall Time | 35ns |
| Harmonized Tariff Schedule (HTS) Code | 8542.39.0060 |
| Introduction Date | 2002-10-21 |
| Lead Free | Lead Free |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | REL |
| Max Operating Temperature | 85°C |
| Max Output Current | 6A |
| Max Supply Current | 1.5mA |
| Max Supply Voltage | 18V |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 4.5V |
| Mount | Surface Mount |
| Nominal Supply Current | 3mA |
| Number of Drivers | 1 |
| Number of Outputs | 1 |
| Number of Pins | 8 |
| Propagation Delay | 75ns |
| Radiation Hardening | No |
| Rise Time | 35ns |
| RoHS | Compliant |
| Turn-On Delay Time | 75ns |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No

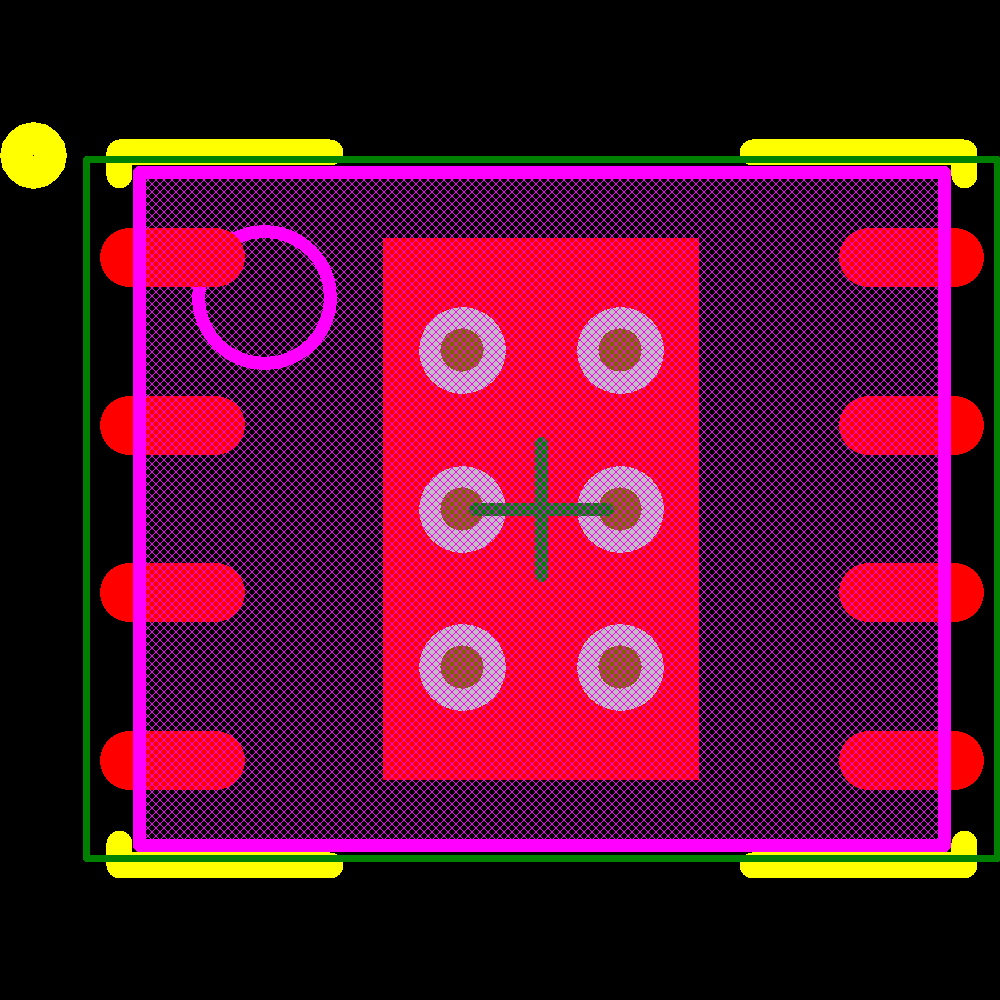

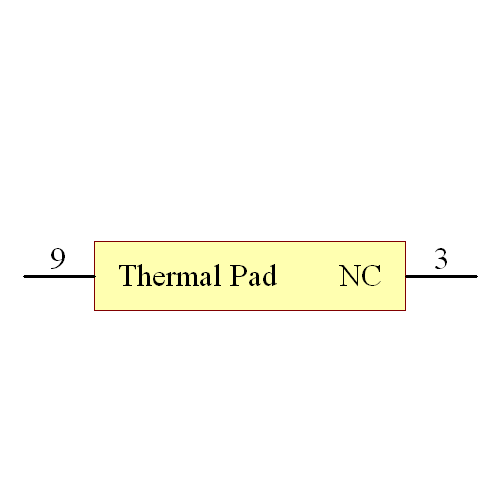

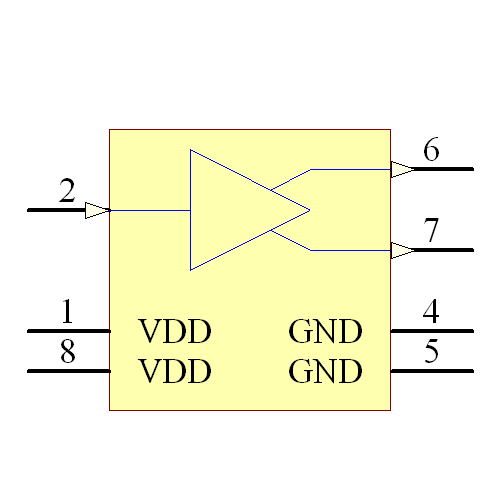

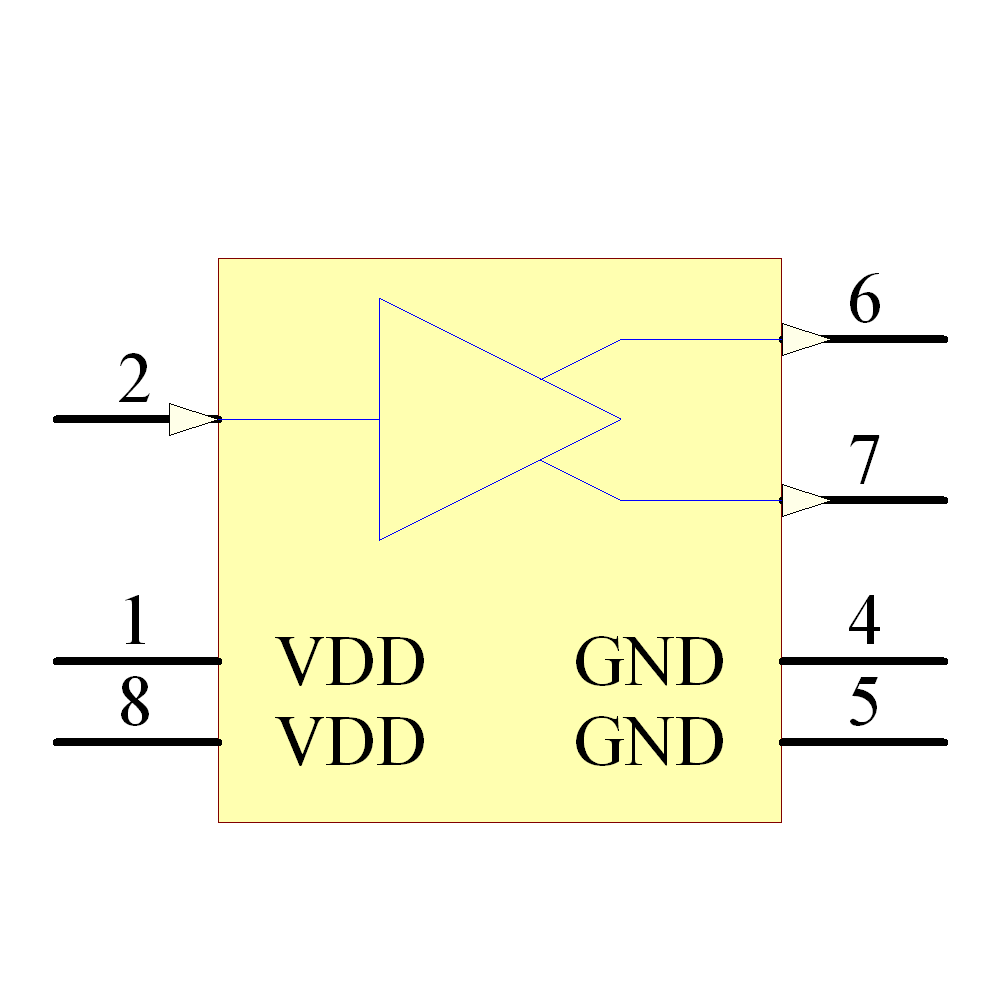

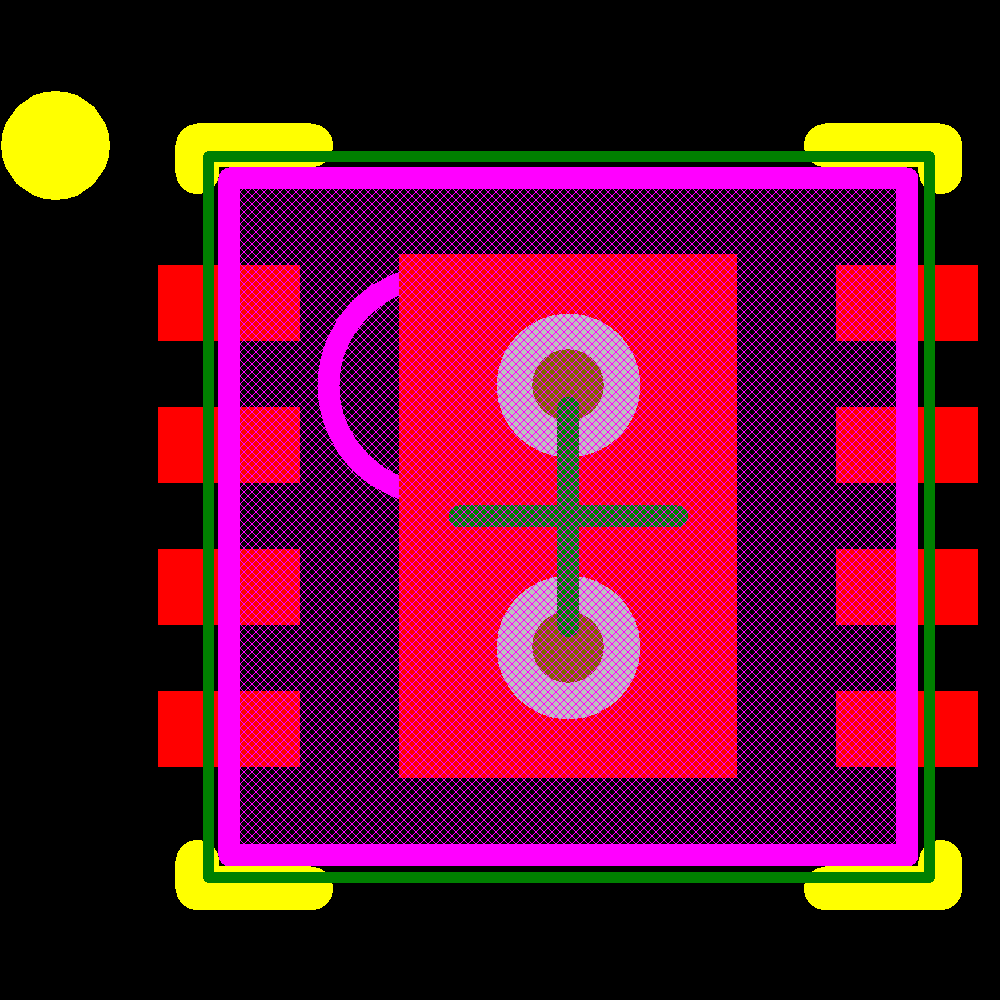

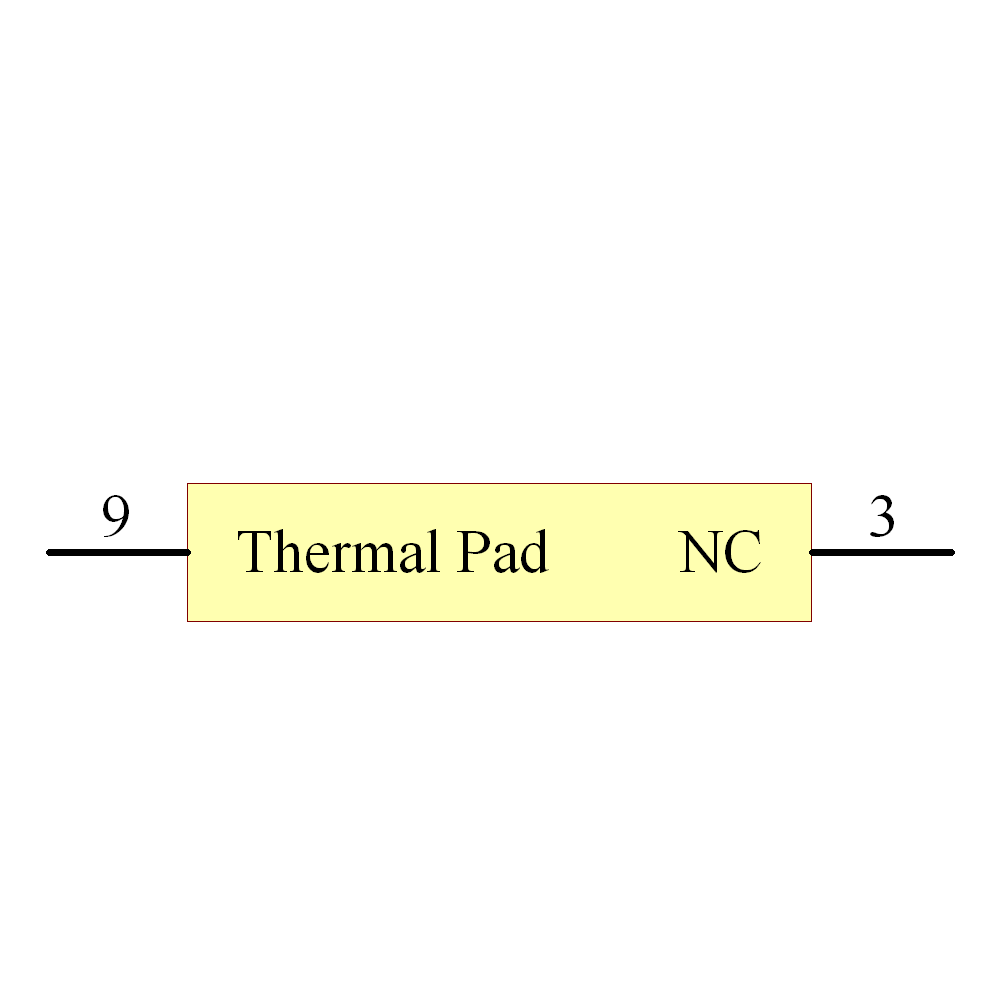

Images
Microchip
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Microchip | Production | ||
| Microchip | Production | ||
| Microchip | Production | ||
| Microchip | Unknown | ||
| Microchip | Production | ||
| Microchip | Production | ||
| Microchip | Production | ||
| Microchip | Production | ||
| Analog Devices | Production | ||
| Analog Devices | Unknown |
