TC4421AVOA - Microchip

IC GATE DRVR LOW-SIDE 8SOIC Low-Side Gate Driver IC Inverting 8-SOIC

Technical Details

Projected EOL Date	2034-05-03
Case/Package	SOIC
Country of Assembly	Thailand
Country of Fabrication	United States of America
Country of Origin	Thailand
Export Control Classification Number (ECCN) Code	EAR99
Fall Time	32ns
Height	1.42mm
Harmonized Tariff Schedule (HTS) Code	8542.39.0060
Input Bias Current	10µA
Introduction Date	2005-05-03
Lead Free	Lead Free
Length	4.9mm
Lifecycle Status	Production
Manufacturer Lifecycle Status	REL
Max Operating Temperature	125°C
Max Output Current	10A
Max Supply Current	250µA
Max Supply Voltage	18V
Min Operating Temperature	-40°C
Min Supply Voltage	4.5V
Mount	Surface Mount
Nominal Supply Current	150µA
Number of Channels	1
Number of Drivers	1
Number of Pins	8
Output Current	9A
Output Voltage	17.975V
Propagation Delay	49ns
Radiation Hardening	No
REACH SVHC	No
Rise Time	34ns
RoHS	Compliant
Schedule B	8542390000
Turn-On Delay Time	49ns
Width	3.91mm

Compliance

RoHS : Unconfirmed

Radiation Hardening : No

REACH SVHC : No

Images

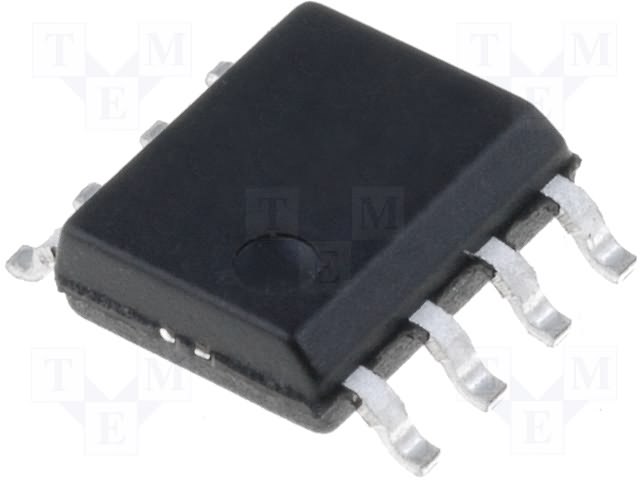

Microchip TC4421AVOA | TME

TME

Datasheets

Onlinecomponents.com

Master Electronics

Lifecycle Status Indicator

Production

Symbol

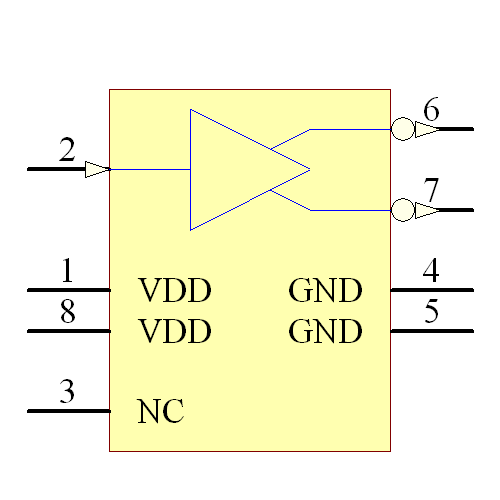

TC4421AVOA Symbol - Microchip

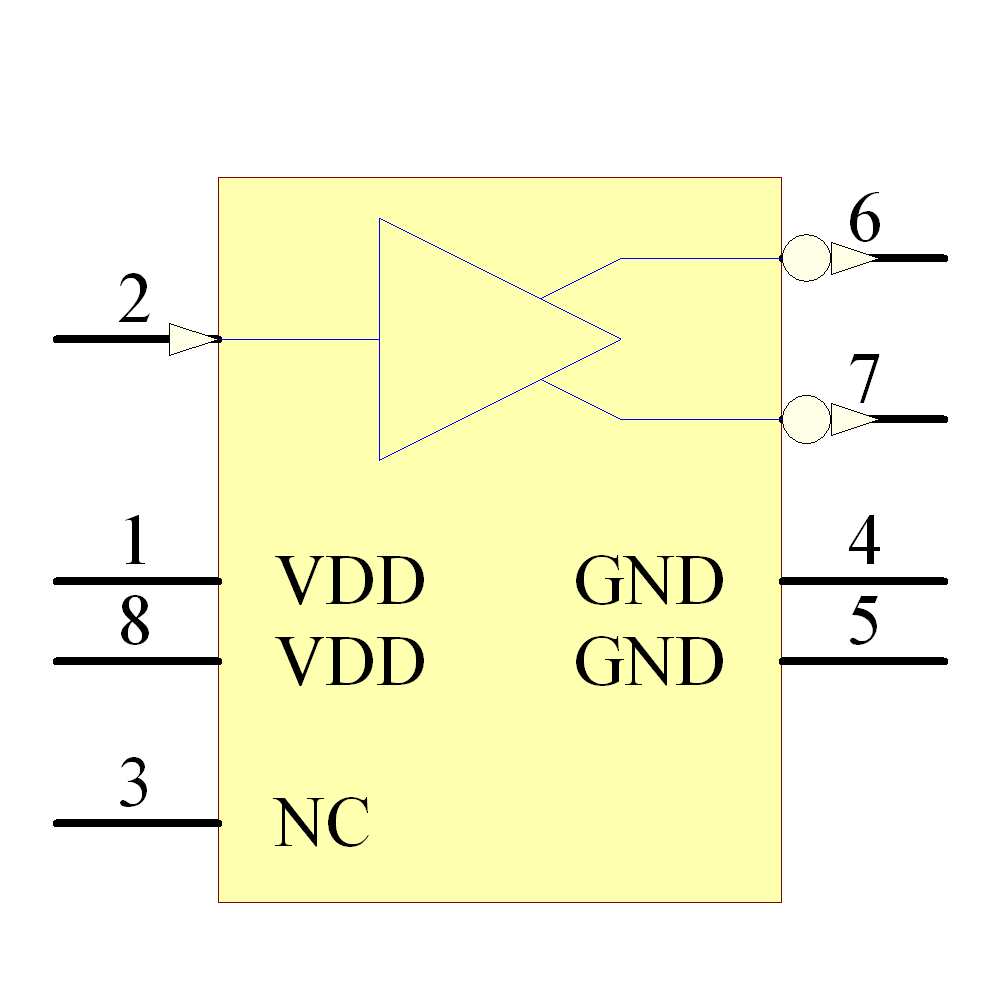

TC4421AVOA Symbol - Microchip

TC4421AVOA Symbol - Microchip

TC4421AVOA Symbol - Microchip

‹ ›

Footprint

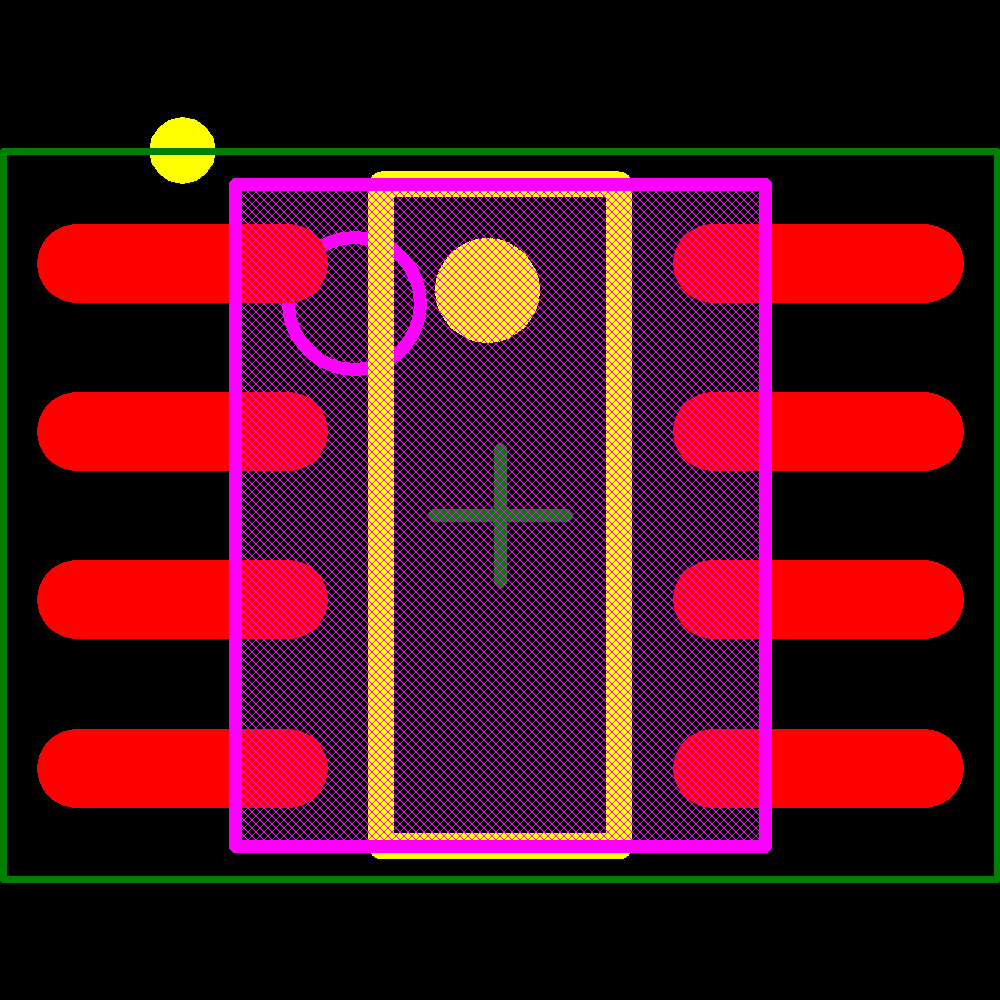

TC4421AVOA Footprint - Microchip

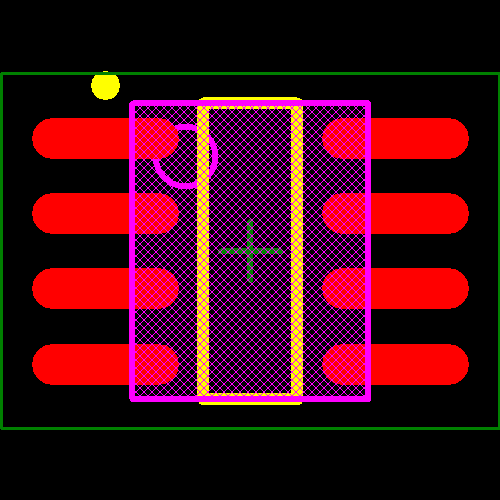

TC4421AVOA Footprint - Microchip

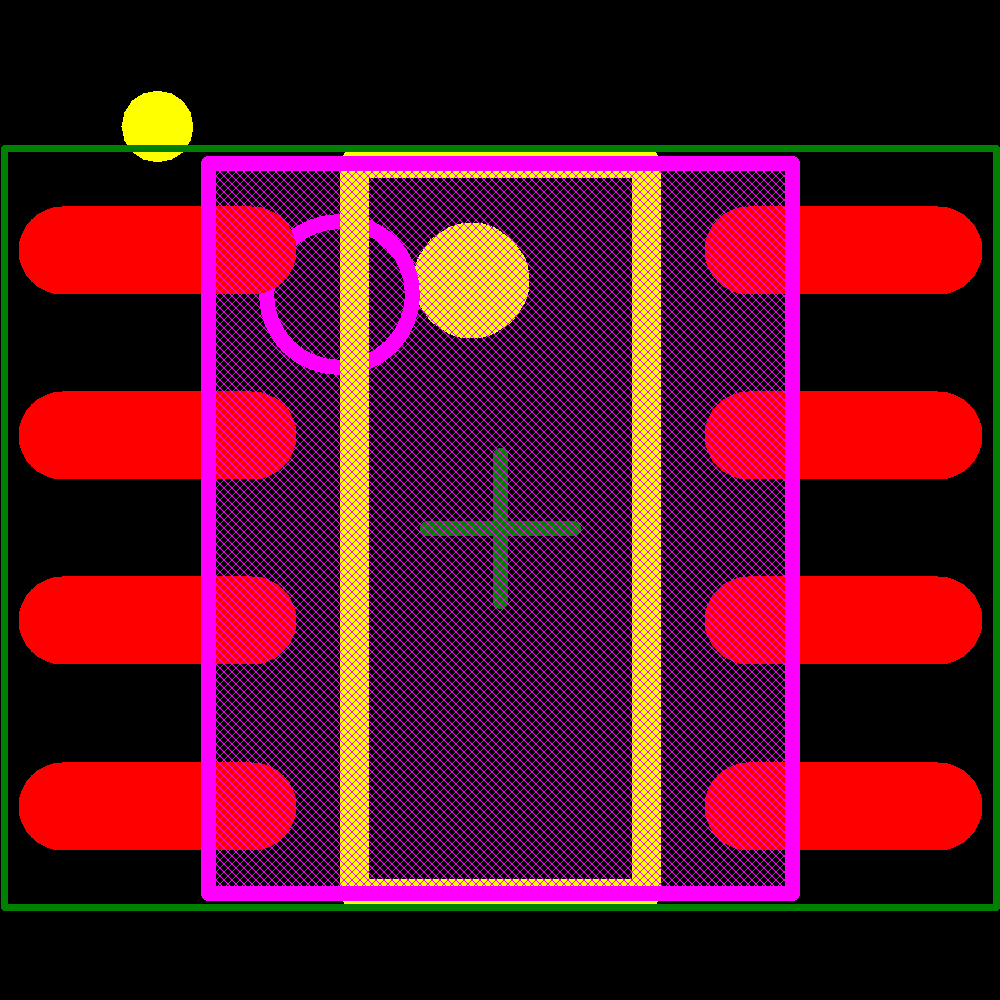

TC4421AVOA Footprint - Microchip

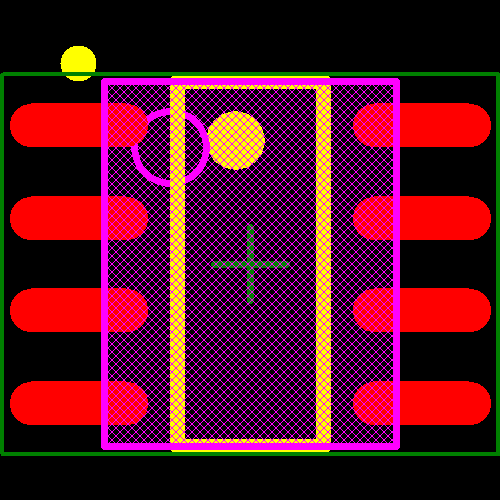

TC4421AVOA Footprint - Microchip

TC4421AVOA Footprint - Microchip

TC4421AVOA Footprint - Microchip

TC4421AVOA Footprint - Microchip

TC4421AVOA Footprint - Microchip

TC4421AVOA Footprint - Microchip

TC4421AVOA Footprint - Microchip

TC4421AVOA Footprint - Microchip

TC4421AVOA Footprint - Microchip

‹ ›
