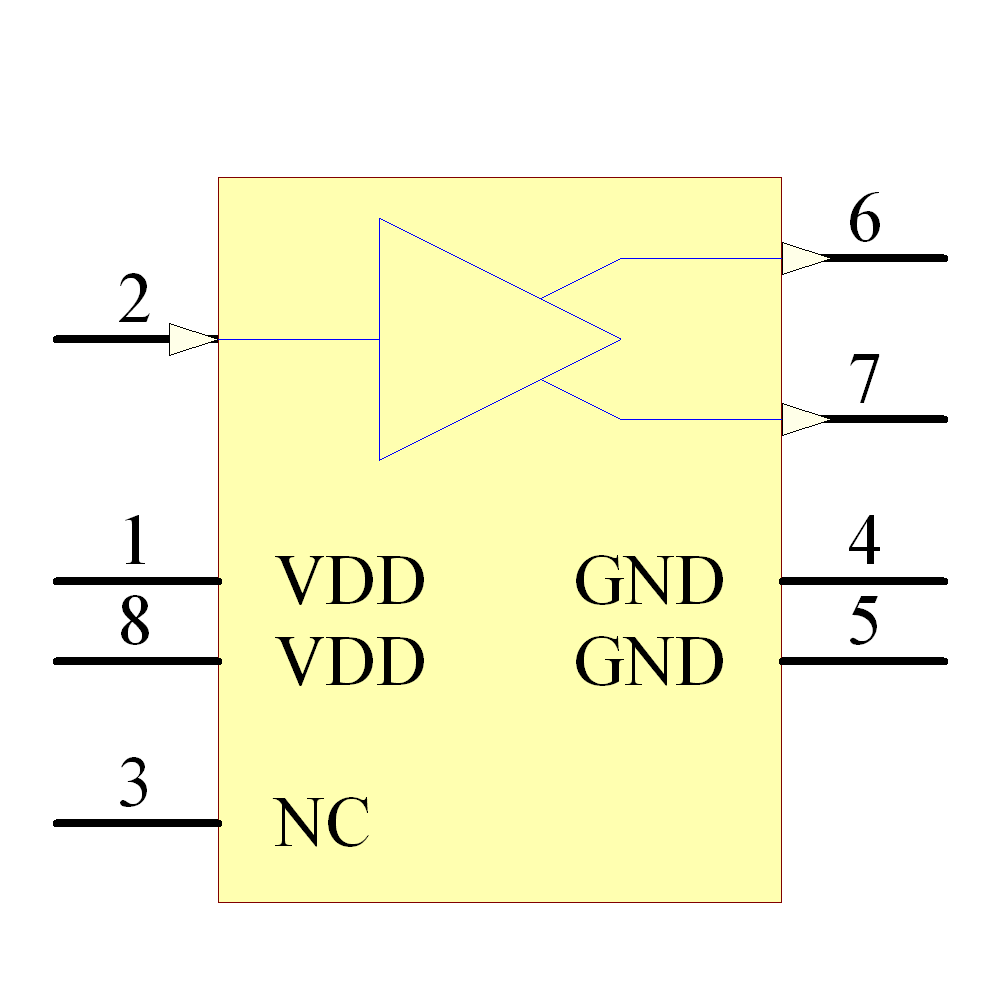

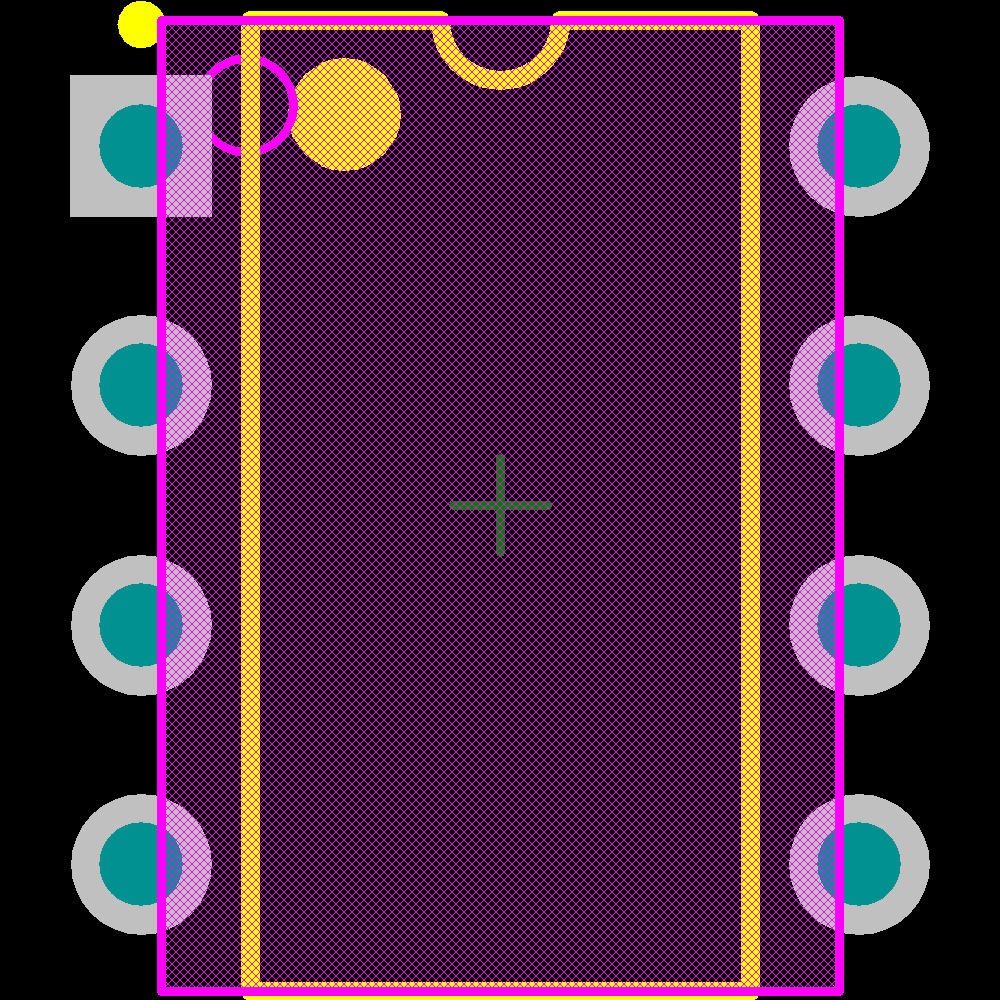

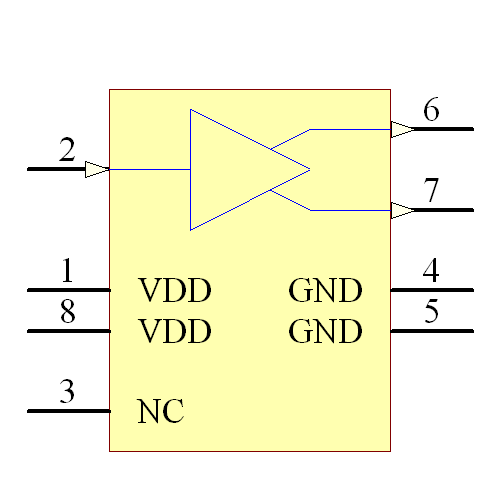

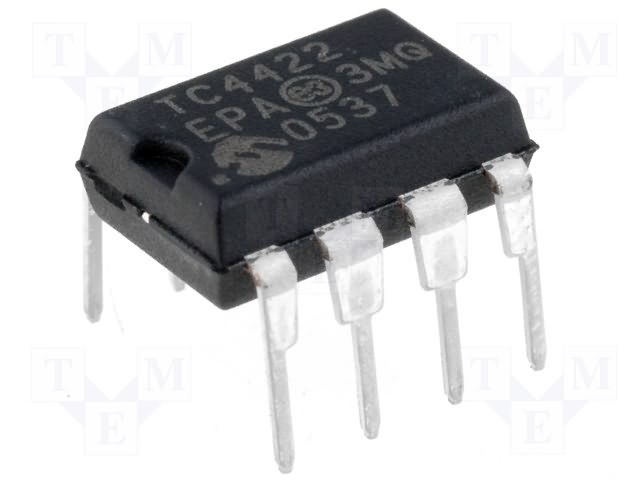

TC4422EPA - Microchip
IC GATE DRVR LOW-SIDE 8DIP Low-Side Gate Driver IC Non-Inverting 8-PDIP
Technical Details
| Projected EOL Date | 2034-01-01 |
| Case/Package | PDIP |
| Country of Assembly | Thailand |
| Country of Fabrication | United States of America |
| Country of Origin | Thailand |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Fall Time | 75ns |
| Height | 4.953mm |
| Harmonized Tariff Schedule (HTS) Code | 8542.39.0060 |
| Input Bias Current | 10µA |
| Introduction Date | 2002-01-01 |
| Lead Free | Lead Free |
| Lead Pitch | 2.29mm |
| Length | 10.16mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | REL |
| Max Operating Temperature | 85°C |
| Max Output Current | 9A |
| Max Output Voltage | 25mV |
| Max Power Dissipation | 730mW |
| Max Supply Current | 1.5mA |
| Max Supply Voltage | 18V |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 4.5V |
| Mount | Through Hole |
| Nominal Supply Current | 1.5mA |
| Number of Channels | 1 |
| Number of Drivers | 1 |
| Number of Outputs | 1 |
| Number of Pins | 8 |
| Operating Supply Voltage | 15V |
| Output Current | 9A |
| Output Voltage | 18V |
| Packaging | Bulk |
| Power Dissipation | 730mW |
| Propagation Delay | 60ns |
| Radiation Hardening | No |
| REACH SVHC | No |
| RoHS | Compliant |
| Row Spacing | 7.87mm |
| Schedule B | 8542390000, 8542390000|8542390000, 8542390000|8542390000|8542390000, 8542390000|8542390000|8542390000|8542390000 |
| Turn-Off Delay Time | 60ns |
| Turn-On Delay Time | 60ns |
| Width | 7.112mm |
