Integrated Circuits (ICs)  >  Power Management ICs  >  Gate Drivers

Microchip - TC4431EJA

TC4431EJA - Microchip

IC GATE DRVR HI/LOW SIDE 8CERDIP High-Side or Low-Side Gate Driver IC Inverting 8-CERDIP

 Datasheets

Technical Details

Case/Package CDIP
Fall Time 50ns
Lead Free Lead Free
Max Operating Temperature 85°C
Max Power Dissipation 800mW
Max Supply Voltage 30V
Min Operating Temperature -40°C
Min Supply Voltage 4.5V
Mount Through Hole
Nominal Supply Current 4mA
Number of Drivers 1
Number of Outputs 1
Number of Pins 8
Packaging Bulk
Rise Time 40ns
RoHS Compliant

Compliance

   RoHS : Unconfirmed

Images

Datasheets

 Component Stockers USA
 Worldway Electronics
 AERI

Lifecycle Status Indicator

   Unknown

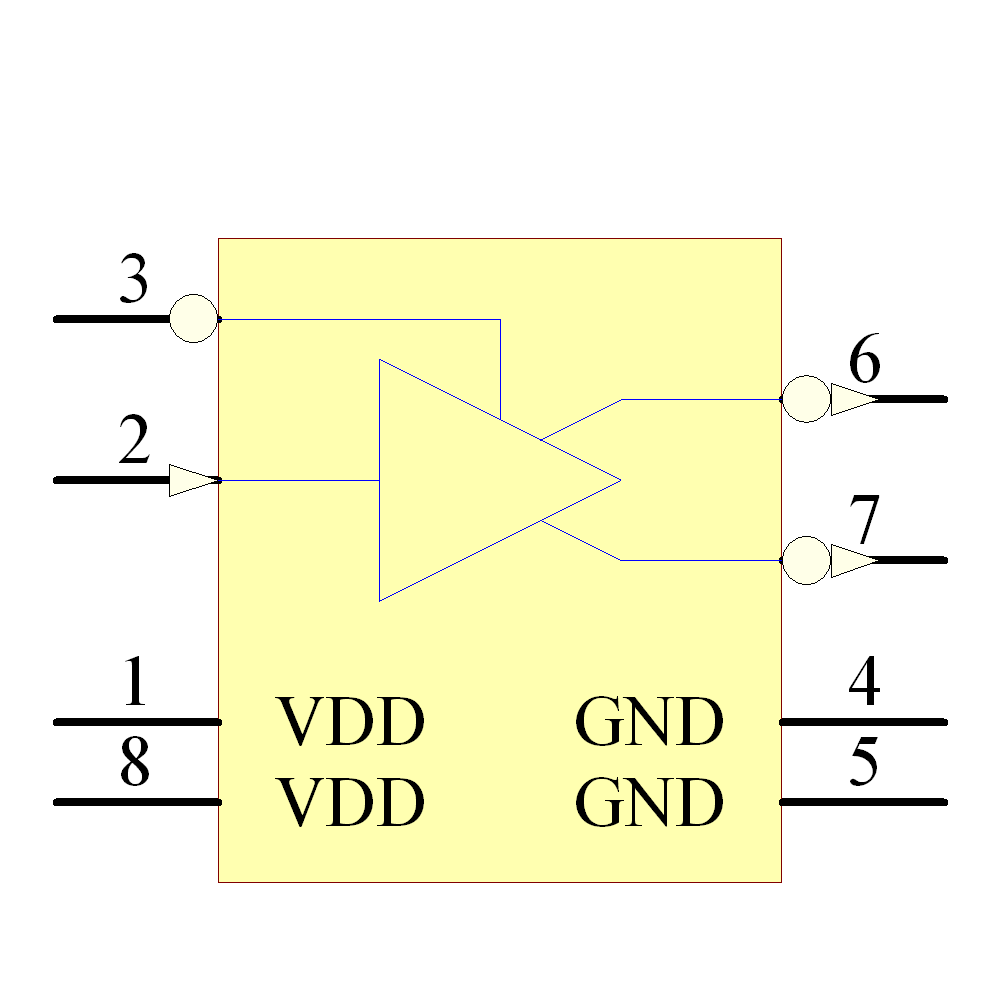

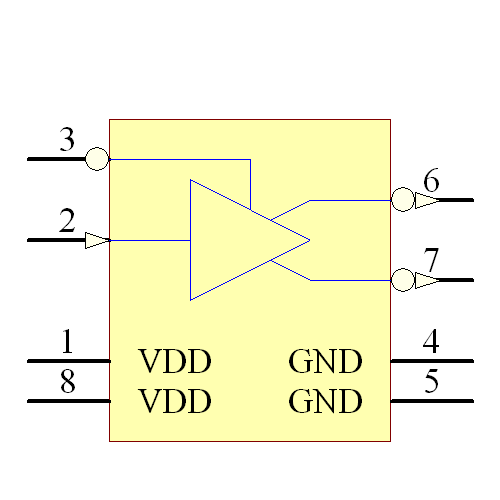

Symbol

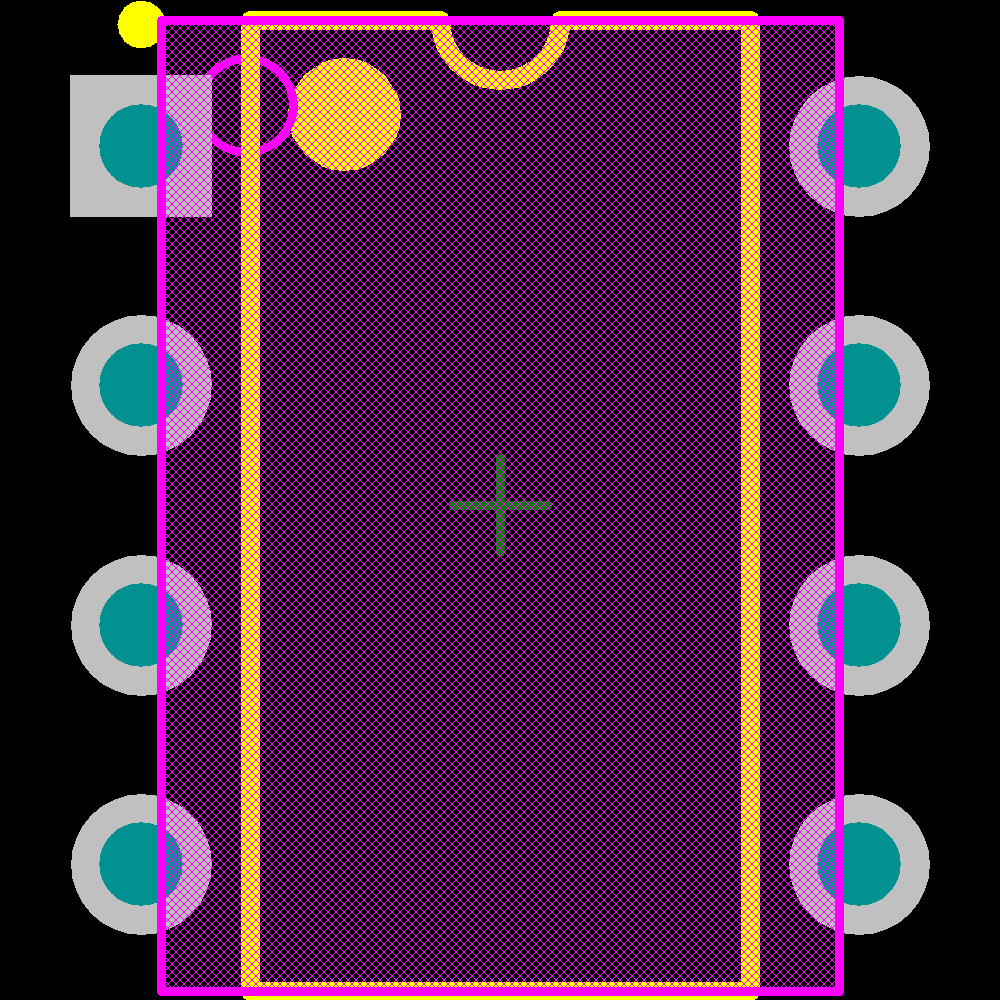

Footprint

Alternatives (Possible Substitutes)

Manufacturer Manufacturer Part No. Lifecycle Status Indicator Confidence
Microchip
TC4431VPA
Production
Microchip
TC4431EPA
Production
Microchip
TC4431CPA
Production
Microchip
TC4432COA
Production
Microchip
TC4431EOA
Production
Microchip
TC4432CPA
Production
Microchip
TC4432EPA
Production
Microchip
TC4432EJA
Unknown
Microchip
TC4431EOA713
Production
Microchip
TC4432COA713
Production

See more alternatives See less alternatives
