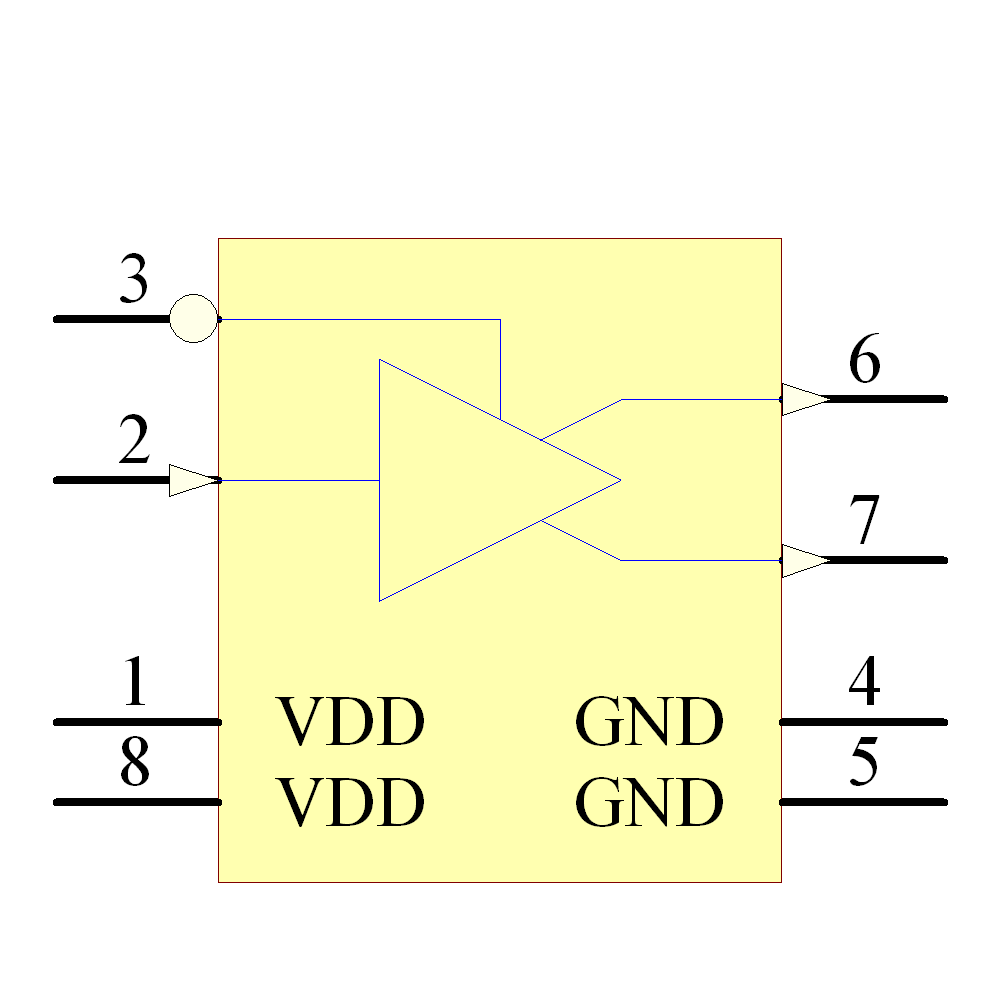

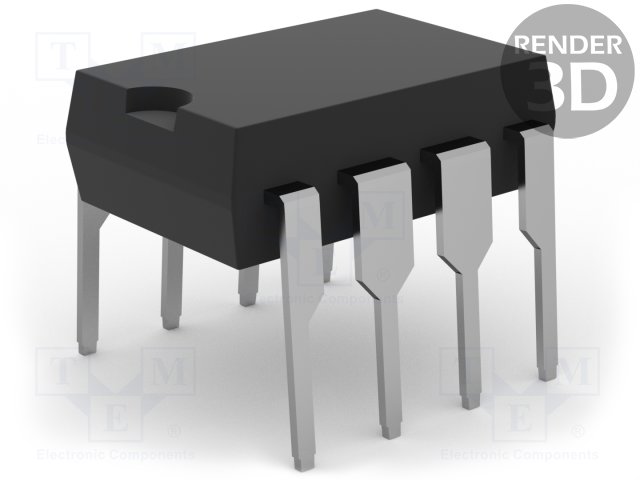

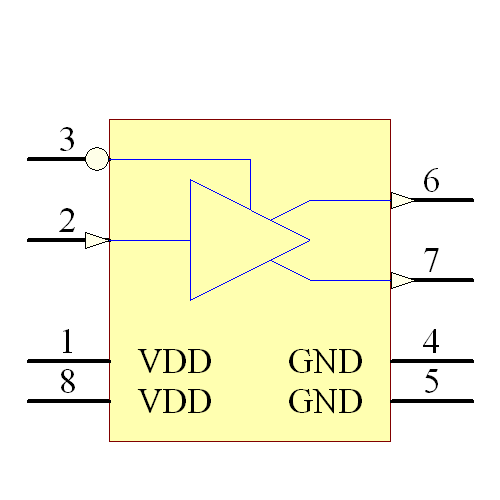

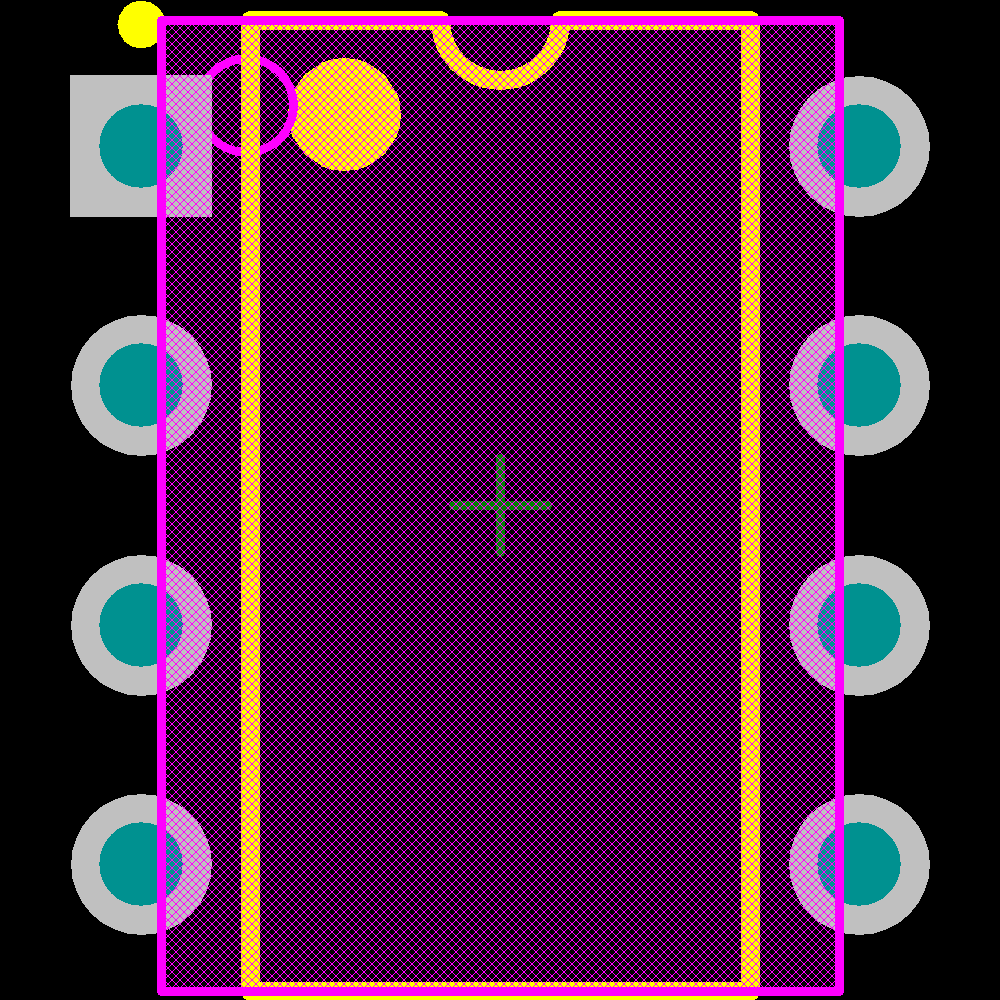

TC4432CPA - Microchip
IC GATE DRV HI-SIDE/LO-SIDE 8DIP High-Side or Low-Side Gate Driver IC Non-Inverting 8-PDIP
Technical Details
| Projected EOL Date | 2034-01-01 |
| Case/Package | PDIP |
| Country of Assembly | Thailand |
| Country of Fabrication | United States of America |
| Country of Origin | Thailand |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Fall Time | 50ns |
| Height | 4.06mm |
| Harmonized Tariff Schedule (HTS) Code | 8541.29.0095 |
| Introduction Date | 2002-01-01 |
| Lead Free | Lead Free |
| Length | 10.16mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | REL |
| Max Operating Temperature | 150°C |
| Max Output Current | 1.5A |
| Max Power Dissipation | 730mW |
| Max Supply Current | 4mA |
| Max Supply Voltage | 30V |
| Min Operating Temperature | 0°C |
| Min Supply Voltage | 4.5V |
| Mount | Through Hole |
| Nominal Supply Current | 4mA |
| Number of Channels | 1 |
| Number of Drivers | 1 |
| Number of Outputs | 1 |
| Number of Pins | 8 |
| Packaging | Bulk |
| Power Dissipation | 730mW |
| Propagation Delay | 90ns |
| Radiation Hardening | No |
| Rise Time | 40ns |
| RoHS | Compliant |
| Schedule B | 8541290080, 8541290080|8541290080|8541290080|8541290080|8541290080 |
| Turn-On Delay Time | 90ns |
| Width | 6.6mm |
