TC4432EJA - Microchip
IC GATE DRVR HI/LOW SIDE 8CERDIP High-Side or Low-Side Gate Driver IC Non-Inverting 8-CERDIP
Technical Details
| Case/Package | CDIP |
| Fall Time | 50ns |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Max Power Dissipation | 800mW |
| Max Supply Voltage | 30V |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 4.5V |
| Mount | Through Hole |
| Nominal Supply Current | 4mA |
| Number of Drivers | 1 |
| Number of Outputs | 1 |
| Number of Pins | 8 |
| Packaging | Bulk |
| Rise Time | 40ns |
| RoHS | Compliant |
Compliance
RoHS : Unconfirmed

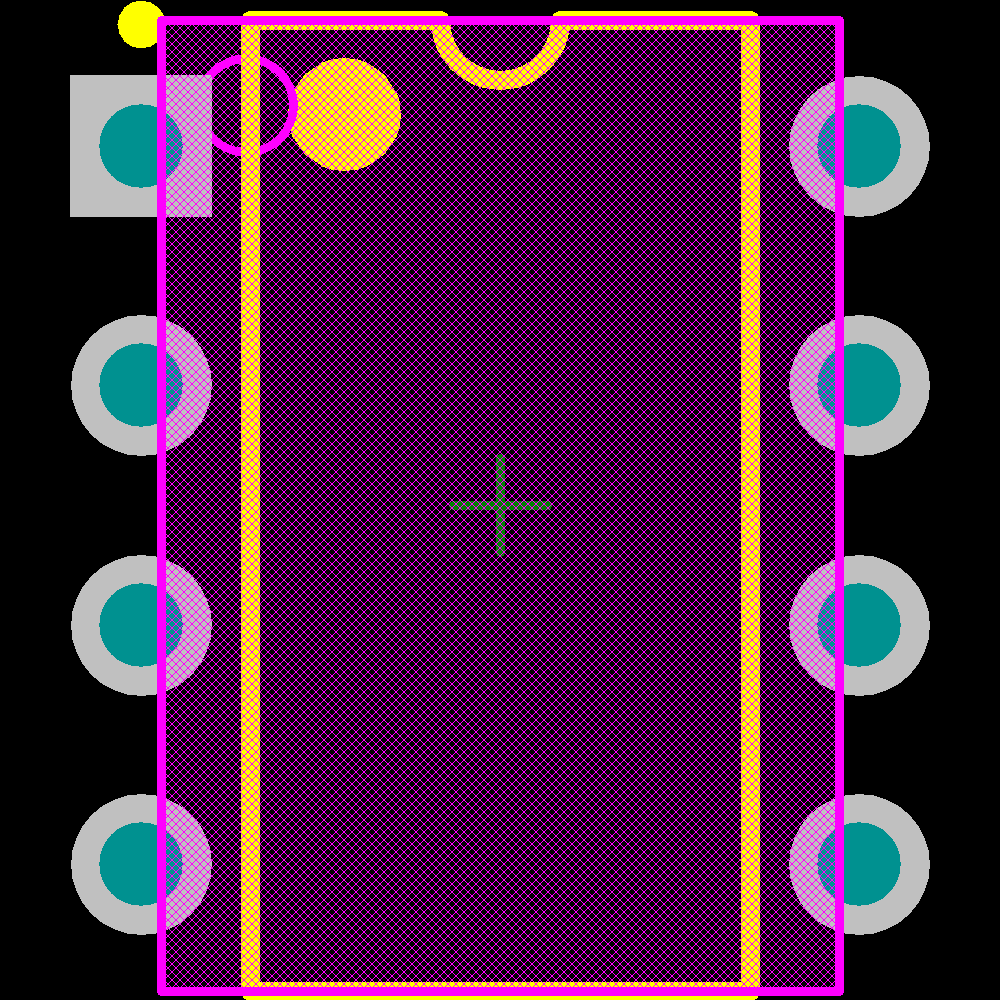

Images
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Microchip | Production | ||
| Microchip | Production | ||
| Microchip | Production | ||
| Microchip | Production | ||
| Microchip | Production | ||
| Microchip | Production | ||
| Microchip | Production | ||
| Microchip | Unknown | ||
| Microchip | Production | ||
| Microchip | Production |
