TC4626EOE - Microchip
IC GATE DRVR HI/LOW SIDE 16SOIC High-Side or Low-Side Gate Driver IC Inverting 16-SOIC
Technical Details
| Projected EOL Date | 2034-01-01 |
| Case/Package | SOIC |
| Country of Assembly | Philippines |
| Country of Fabrication | N/A |
| Country of Origin | Philippines |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Fall Time | 35ns |
| Frequency | 1MHz |
| Height | 2.34mm |
| Harmonized Tariff Schedule (HTS) Code | 8541.29.0095 |
| Introduction Date | 2002-01-01 |
| Lead Free | Lead Free |
| Length | 10.49mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | REL |
| Max Operating Temperature | 85°C |
| Max Output Current | 1.5A |
| Max Power Dissipation | 760mW |
| Max Supply Current | 2.5mA |
| Max Supply Voltage | 6V |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 4V |
| Mount | Surface Mount |
| Nominal Supply Current | 2.5mA |
| Number of Drivers | 1 |
| Number of Outputs | 1 |
| Number of Pins | 16 |
| Packaging | Bulk |
| Power Dissipation | 760mW |
| Propagation Delay | 55ns |
| Radiation Hardening | No |
| REACH SVHC | No |
| Rise Time | 40ns |
| RoHS | Compliant |
| Turn-On Delay Time | 55ns |
| Width | 7.59mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : No

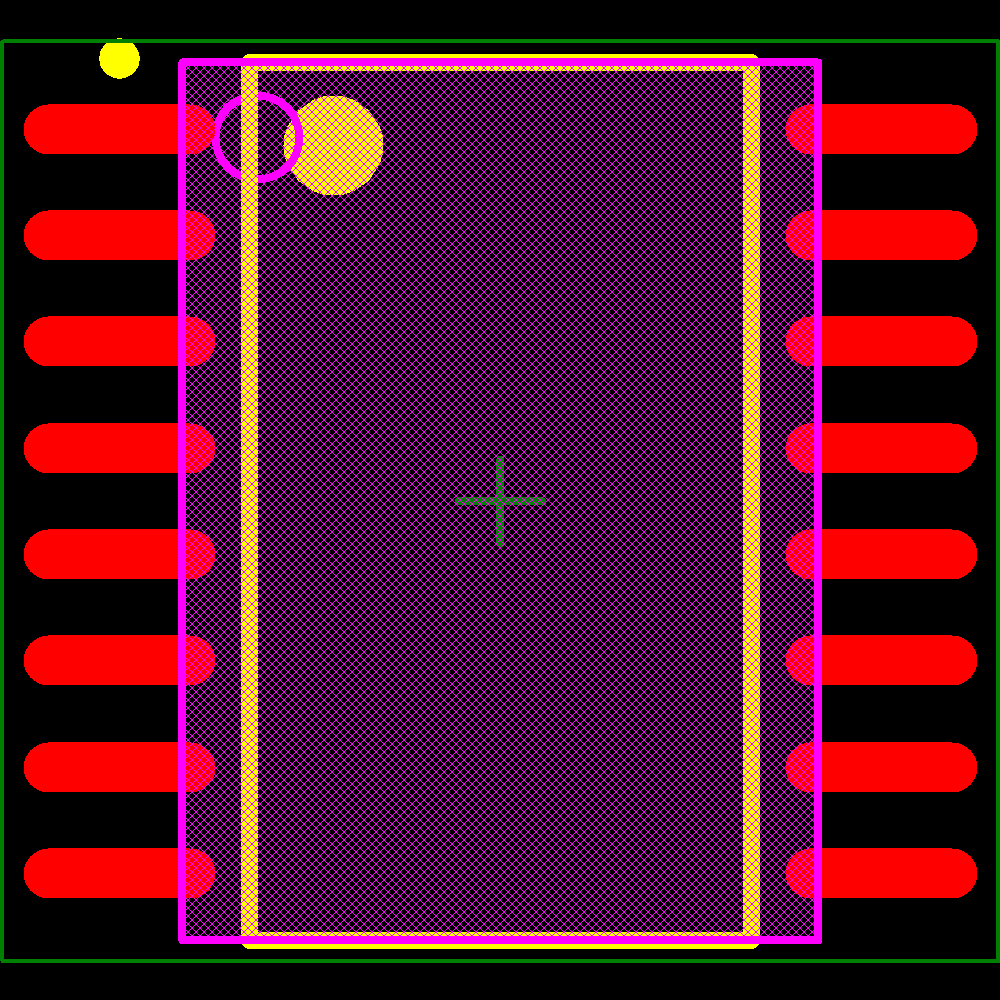

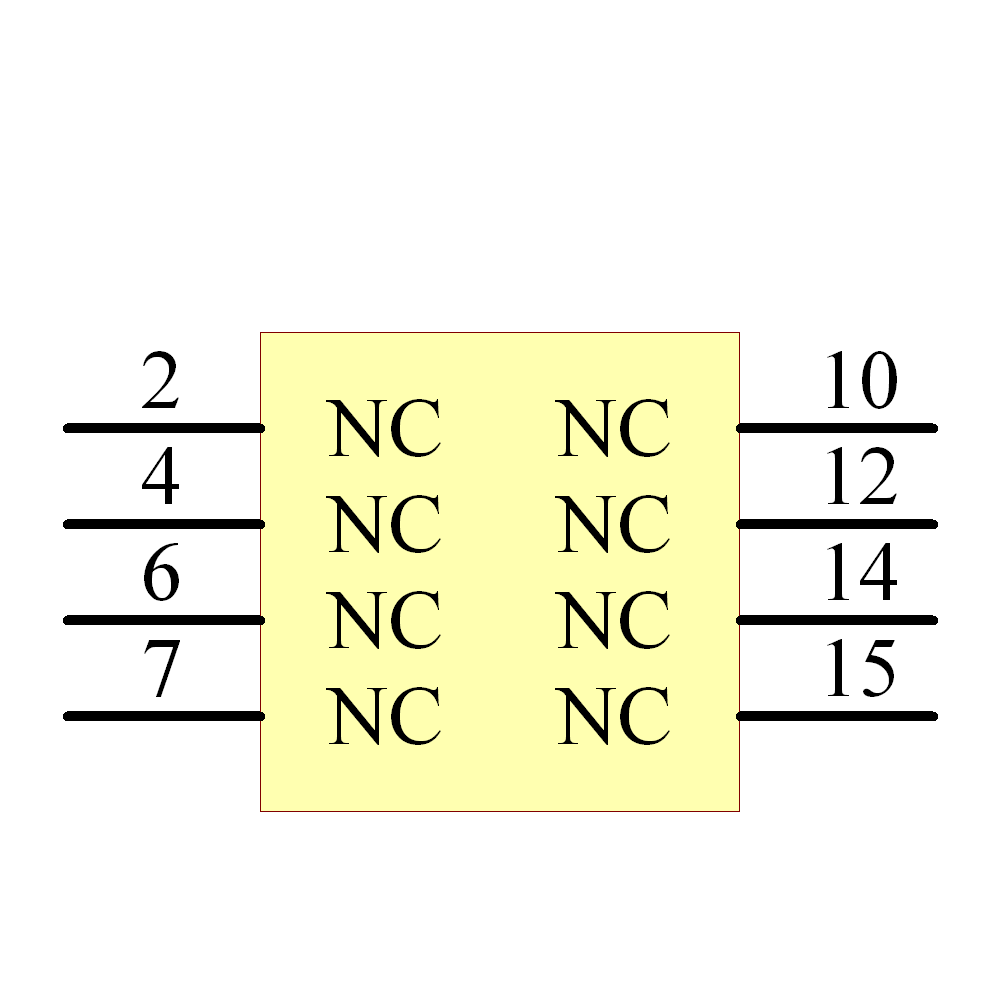

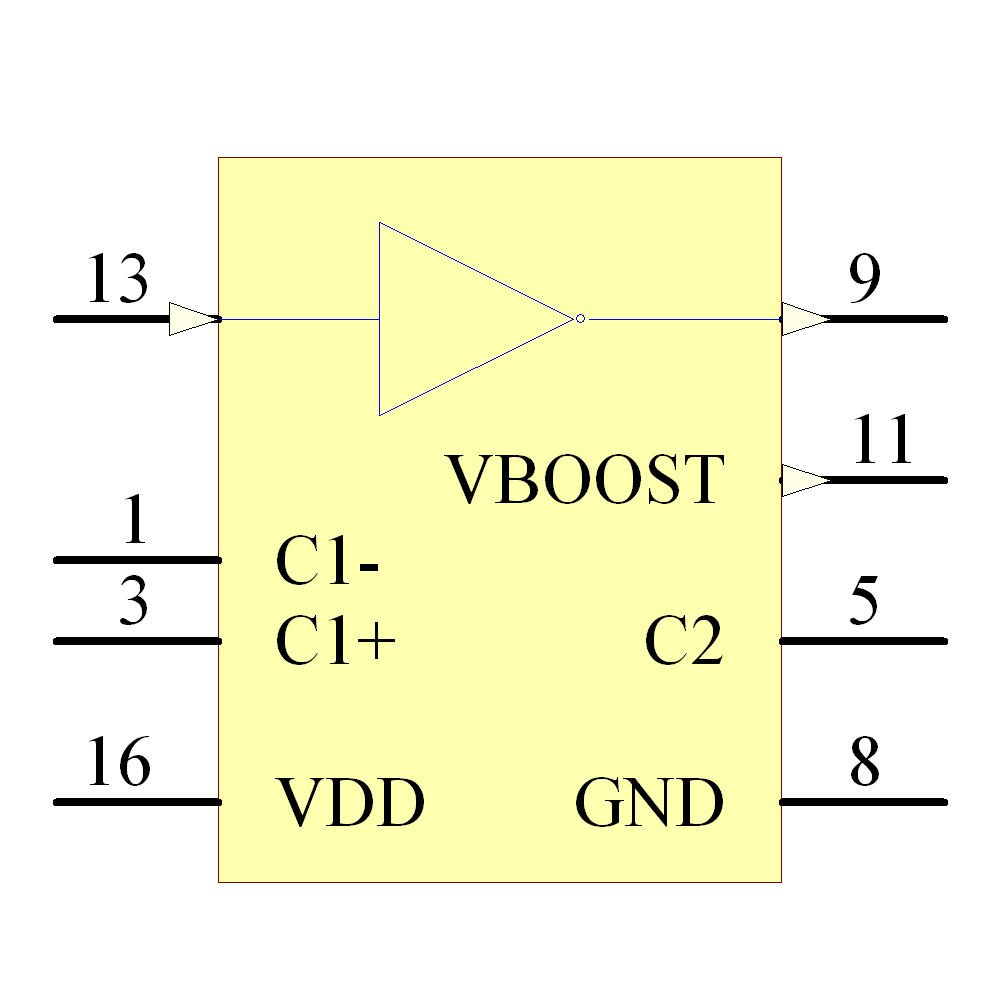

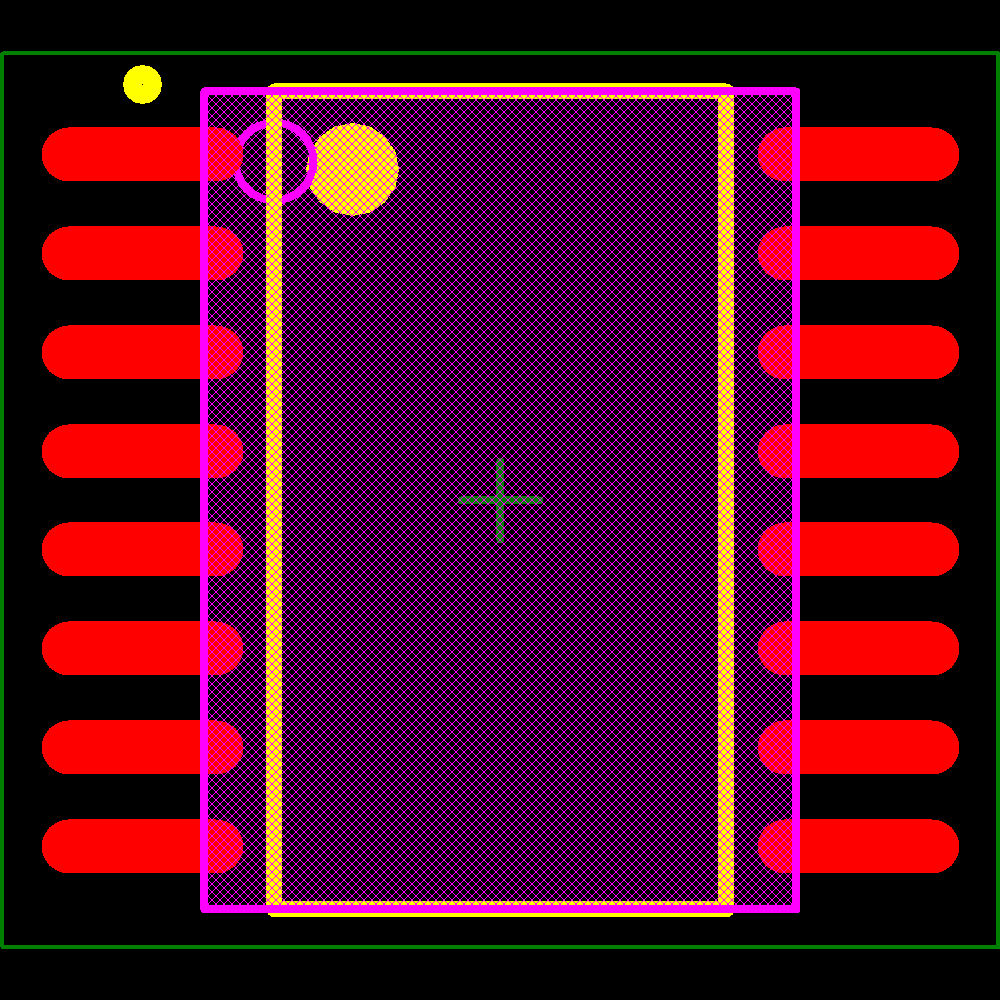

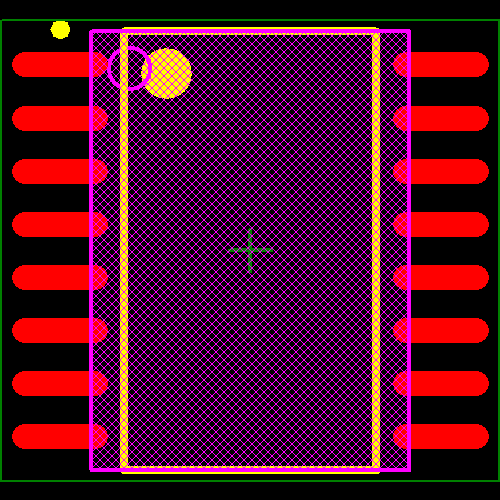

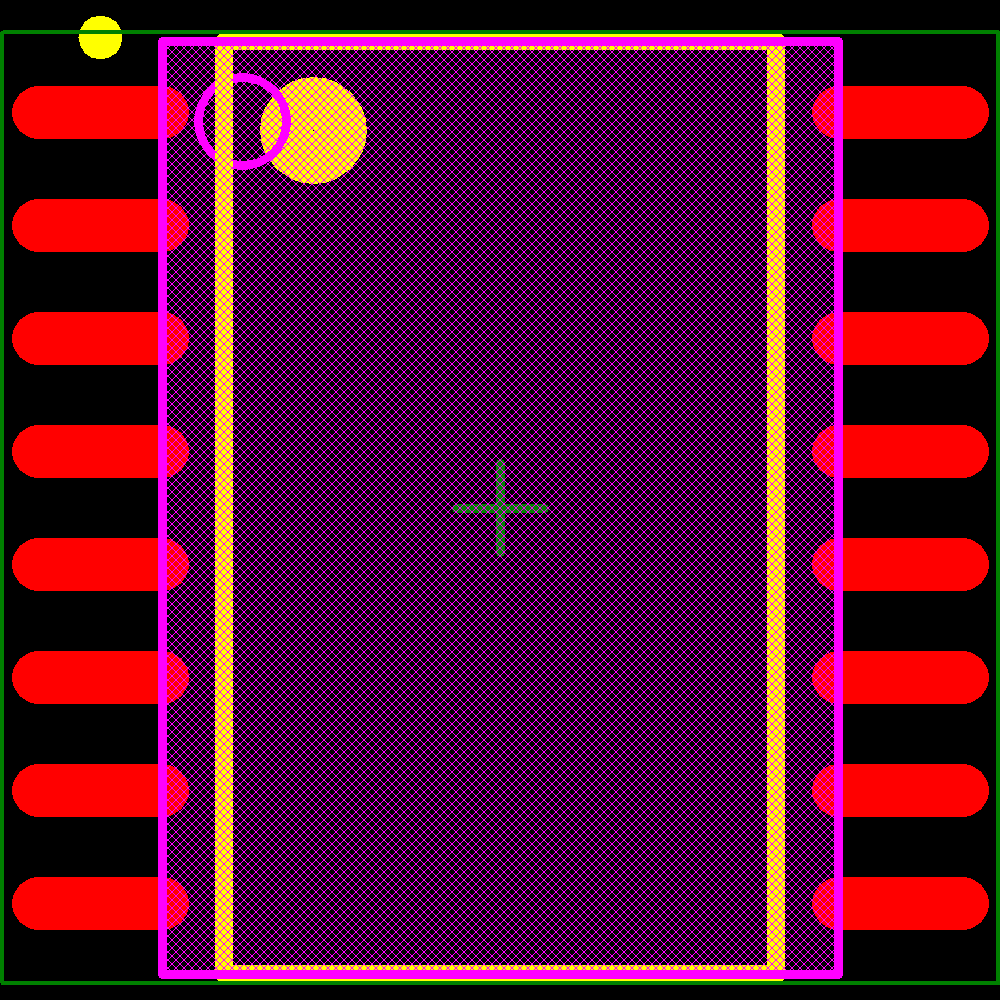

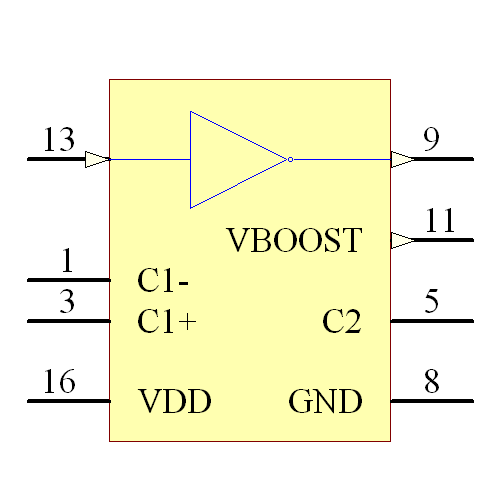

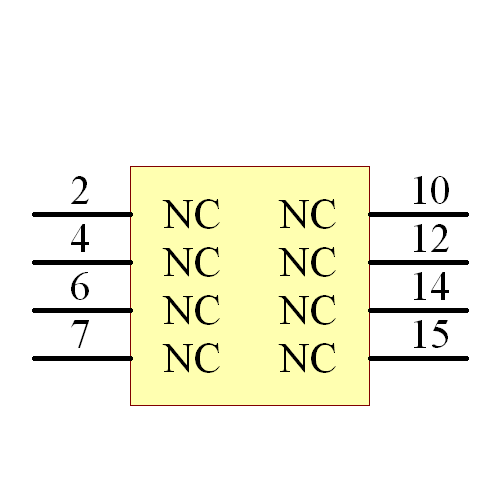

Images
Onlinecomponents.com
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Microchip | Production | ||
| Microchip | Unknown | ||
| Microchip | Production | ||
| Microchip | Production | ||
| Microchip | Production | ||
| Microchip | Production | ||
| Texas Instruments | Unknown | ||
| Analog Devices | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production |
