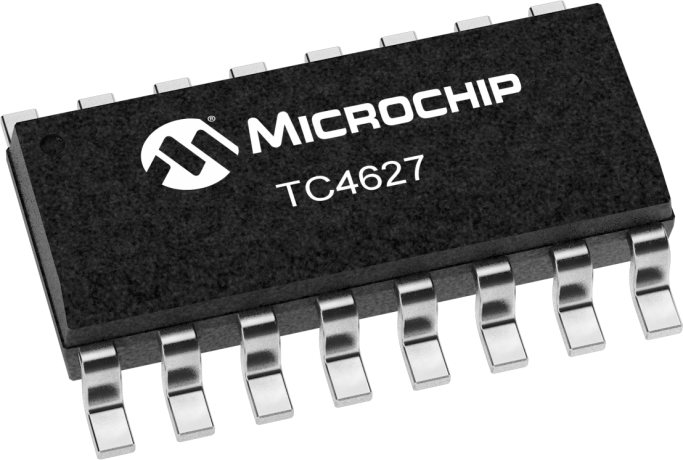

TC4627EOE713 - Microchip
IC GATE DRVR HI/LOW SIDE 16SOIC High-Side or Low-Side Gate Driver IC Non-Inverting 16-SOIC
Technical Details
| Projected EOL Date | 2034-03-09 |
| Case/Package | SOIC |
| Country of Assembly | Philippines |
| Country of Fabrication | United States of America |
| Country of Origin | Philippines |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Fall Time | 35ns |
| Frequency | 1MHz |
| Harmonized Tariff Schedule (HTS) Code | 8541.29.0095 |
| Introduction Date | 2009-03-09 |
| Lead Free | Lead Free |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | REL |
| Max Operating Temperature | 85°C |
| Max Output Current | 1.5A |
| Max Power Dissipation | 760mW |
| Max Supply Current | 2.5mA |
| Max Supply Voltage | 6V |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 4V |
| Mount | Surface Mount |
| Nominal Supply Current | 2.5mA |
| Number of Drivers | 1 |
| Number of Outputs | 1 |
| Number of Pins | 16 |
| Power Dissipation | 760mW |
| Propagation Delay | 55ns |
| Rise Time | 40ns |
| RoHS | Compliant |
| Turn-On Delay Time | 55ns |
Compliance
RoHS : Unconfirmed
