TC4627MJA - Microchip
IC GATE DRVR HI/LOW SIDE 8CERDIP High-Side or Low-Side Gate Driver IC Non-Inverting 8-CERDIP
Technical Details
| Projected EOL Date | 2025-05-16 |
| Case/Package | CDIP |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Fall Time | 35ns |
| Frequency | 1MHz |
| Harmonized Tariff Schedule (HTS) Code | 8541.29.0095 |
| Introduction Date | 2002-01-01 |
| Lead Free | Lead Free |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | PHAS |
| Max Operating Temperature | 125°C |
| Max Output Current | 1.5A |
| Max Power Dissipation | 800mW |
| Max Supply Voltage | 6V |
| Min Operating Temperature | 0°C |
| Min Supply Voltage | 4V |
| Mount | Through Hole |
| Nominal Supply Current | 2.5mA |
| Number of Drivers | 1 |
| Number of Outputs | 1 |
| Number of Pins | 8 |
| Packaging | Bulk |
| Power Dissipation | 800mW |
| Propagation Delay | 55ns |
| Rise Time | 40ns |
| RoHS | Compliant |
Compliance
RoHS : Unconfirmed

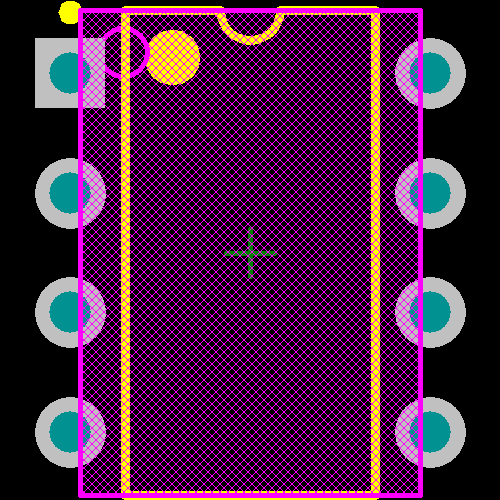

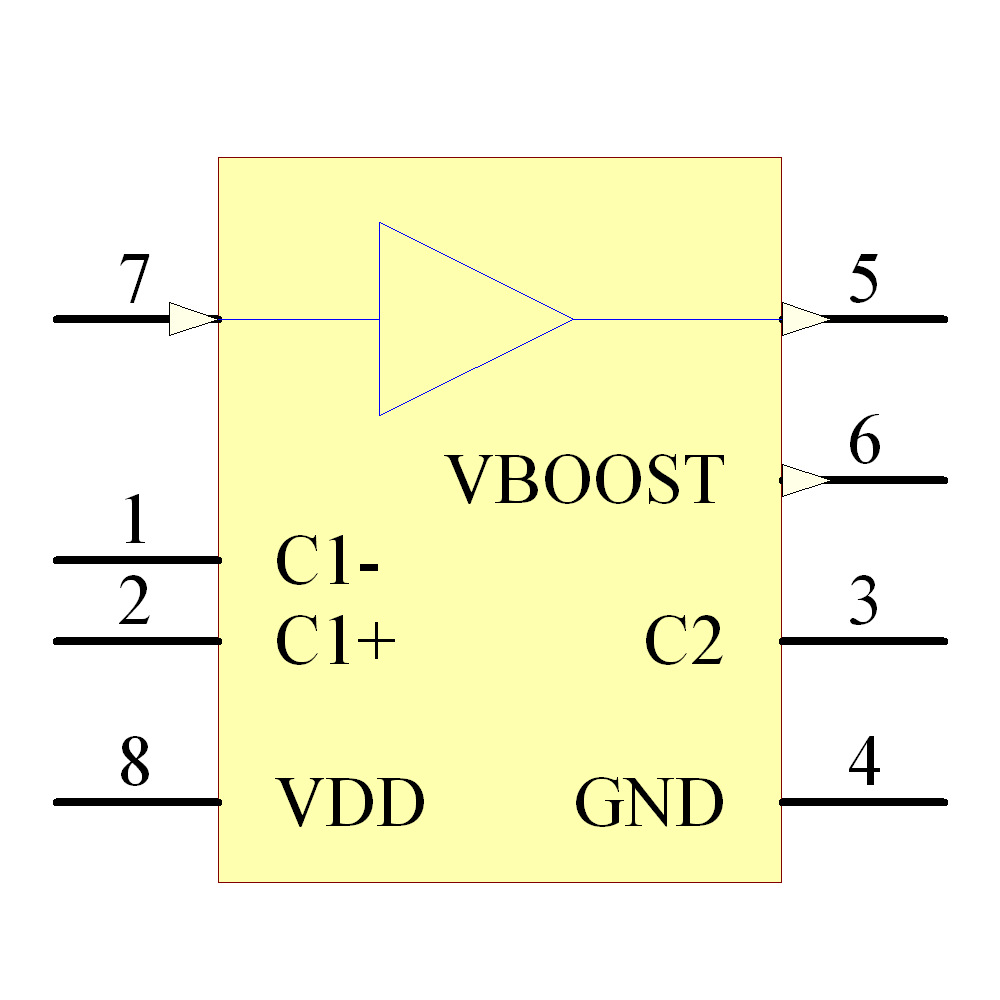

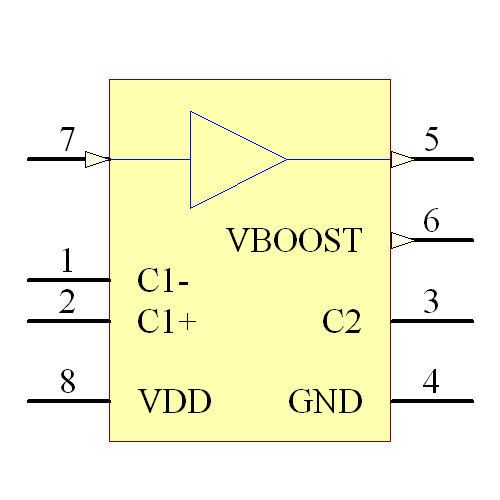

Images
Onlinecomponents.com
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Microchip | Production | ||
| Microchip | Production | ||
| Microchip | Production | ||
| Microchip | Production | ||
| Microchip | Production | ||
| Microchip | Production | ||
| Microchip | Unknown | ||
| STMicroelectronics | Obsolete | ||
| Texas Instruments | Unknown | ||
| Micrel | Obsolete |
