JS28F640P30TF75A - Micron
NOR Flash Parallel/Serial 1.8V 64Mbit 4M x 16bit 75ns 56-Pin TSOP Tray
Technical Details
| Access Time | 75ns |
| Address Bus Width | 22b |
| Case/Package | TSSOP |
| Density | 64Mb |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Harmonized Tariff Schedule (HTS) Code | 8542.32.00.51 |
| Interface | Parallel |
| Introduction Date | 2010-04-27 |
| Lifecycle Status | Obsolete |
| Max Operating Temperature | 85°C |
| Max Supply Current | 50mA |
| Max Supply Voltage | 2V |
| Memory Type | FLASH |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 1.7V |
| Nominal Supply Current | 28mA |
| Number of Pins | 56 |
| Number of Terminals | 56 |
| Operating Supply Voltage | 1.8V |
| Radiation Hardening | No |
| RoHS | Compliant |
| Sync/Async | Asynchronous |
| Temperature Grade | Industrial |
| Terminal Pitch | 500µm |
| Voltage | 1.7V |
| Word Size | 16b |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No

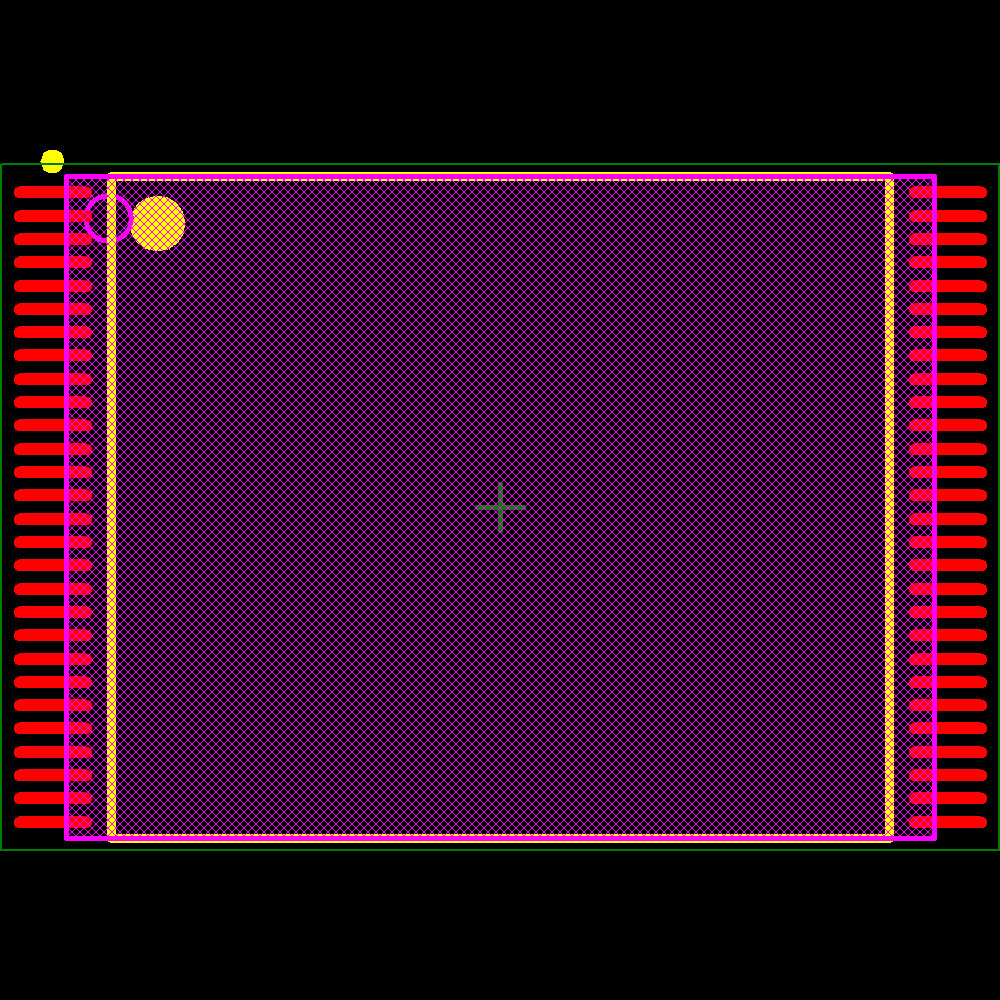

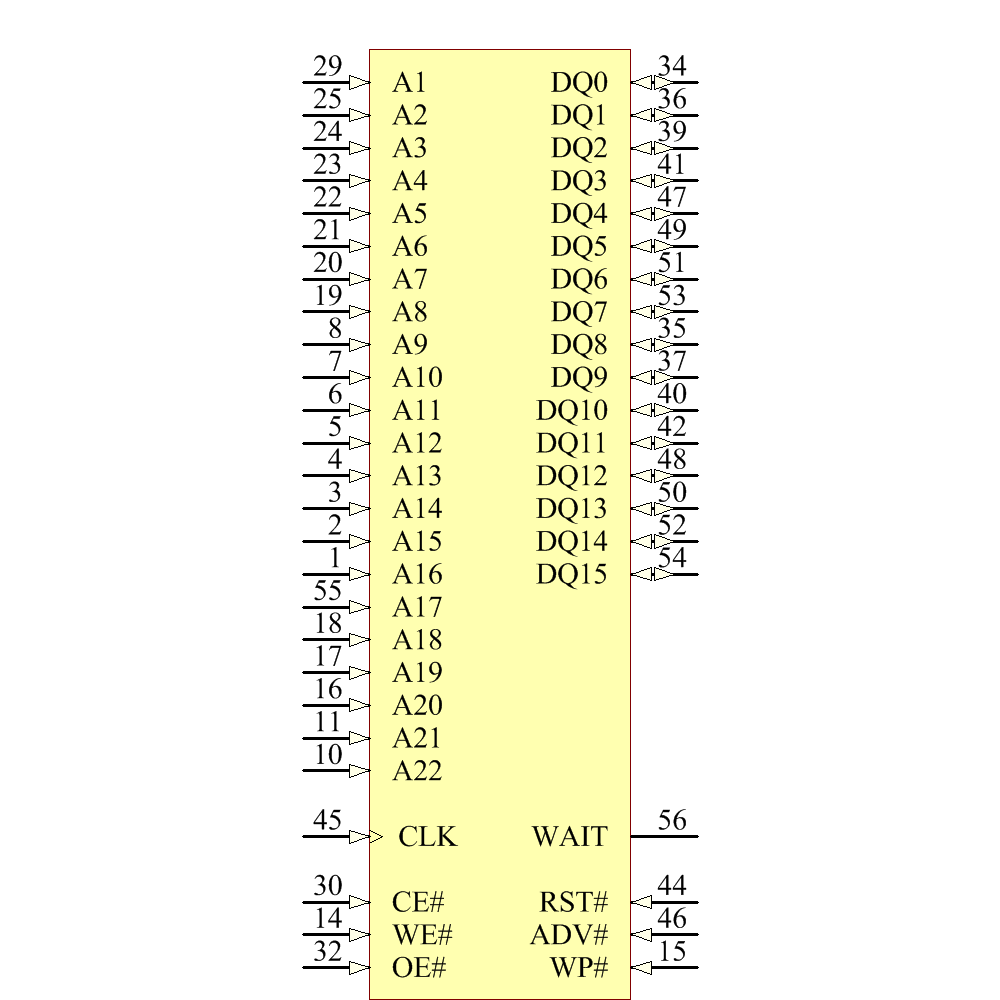

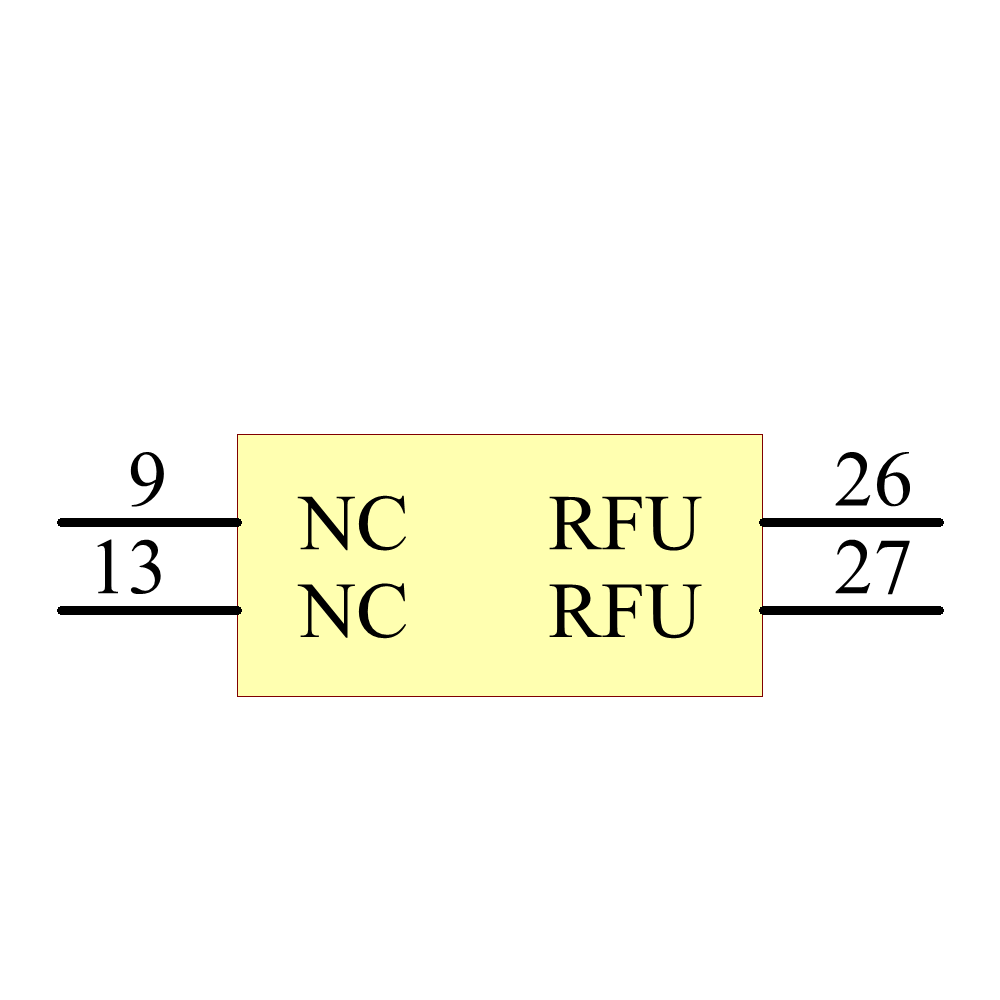

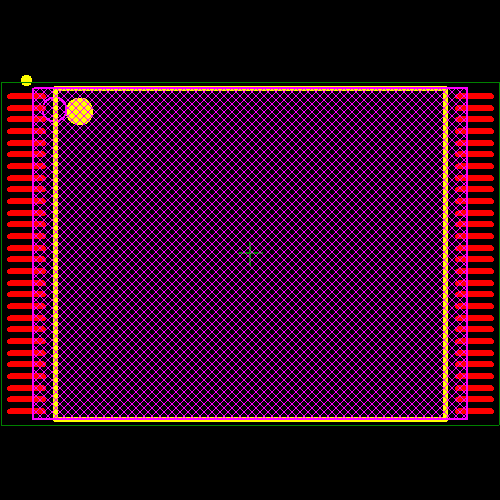

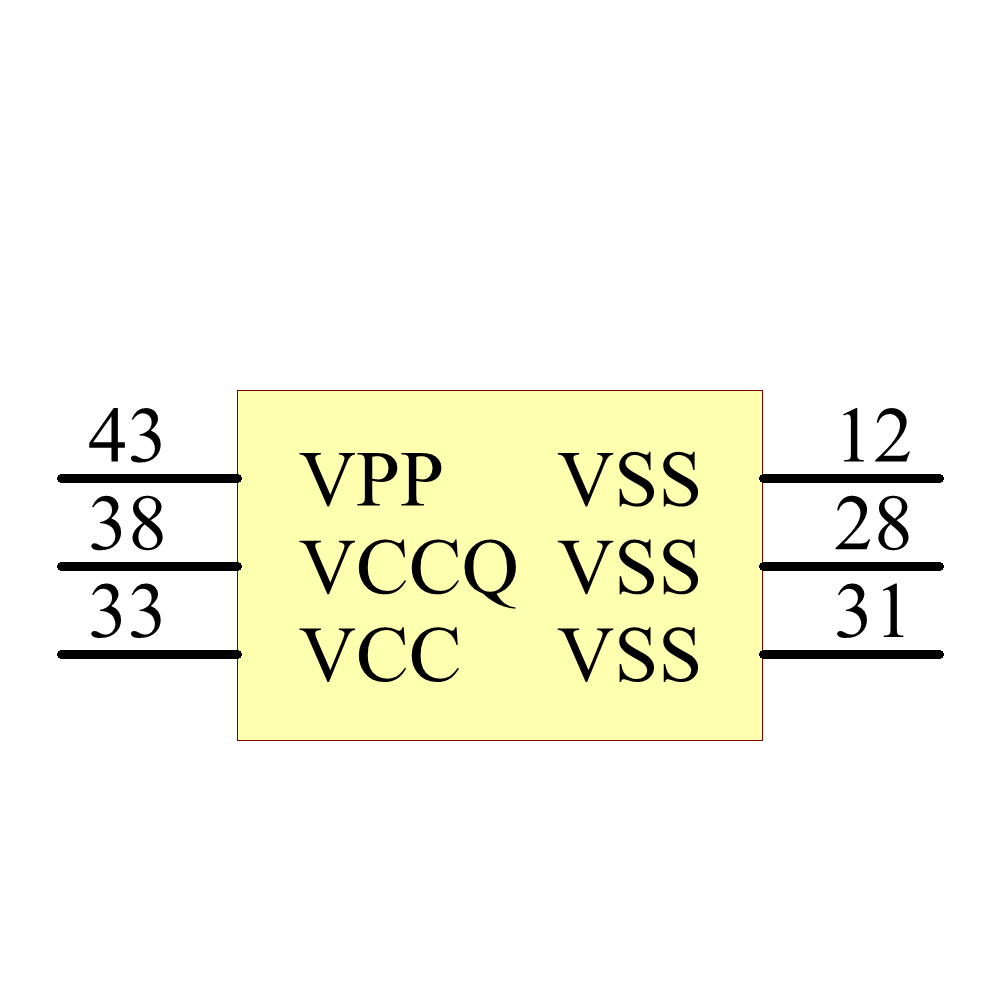

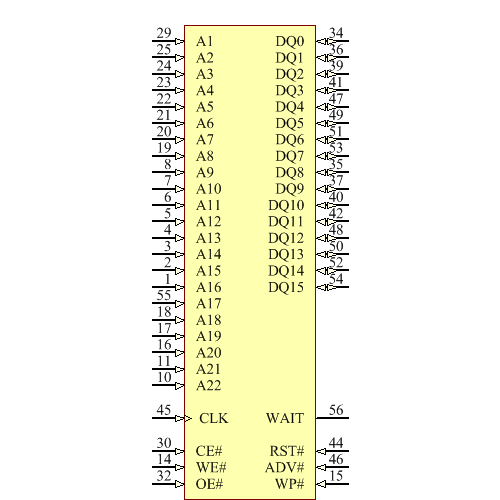

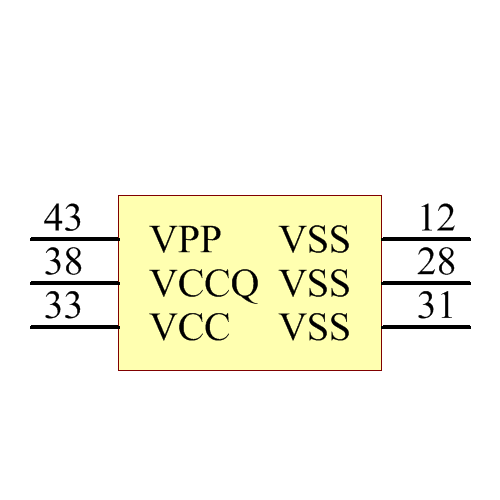

Images
