M25PE40-VMN6TP - Micron
IC FLASH 4MBIT 75MHZ 8SO / NOR Flash Serial-SPI 3.3V 4M-bit 4M x 1 15ns 8-Pin SOIC N T/R
Technical Details
| Access Time | 8ns |
| Address Bus Width | 1b |
| Case/Package | SOP |
| Contact Plating | Gold |
| Density | 4Mb |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Frequency | 75MHz |
| Height - Seated (Max) | 1.75mm |
| Harmonized Tariff Schedule (HTS) Code | 8542.32.00.51 |
| Interface | Serial |
| Introduction Date | 2004-11-09 |
| Length | 4.9mm |
| Lifecycle Status | Obsolete |
| Max Frequency | 75MHz |
| Max Operating Temperature | 85°C |
| Max Supply Current | 15mA |
| Max Supply Voltage | 3.6V |
| Memory Size | 488.3kB |
| Memory Type | FLASH |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 2.7V |
| Nominal Supply Current | 8mA |
| Number of Circuits | 1 |
| Number of Pins | 8 |
| Number of Terminals | 8 |
| Number of Words | 512000 |
| Operating Supply Voltage | 3V |
| Packaging | Tape & Reel |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Schedule B | 8542320070, 8542320070|8542320070|8542320070|8542320070|8542320070 |
| Sync/Async | Synchronous |
| Temperature Grade | Industrial |
| Terminal Pitch | 1.27mm |
| Voltage | 2.7V |
| Width | 3.9mm |
| Word Size | 8b |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes

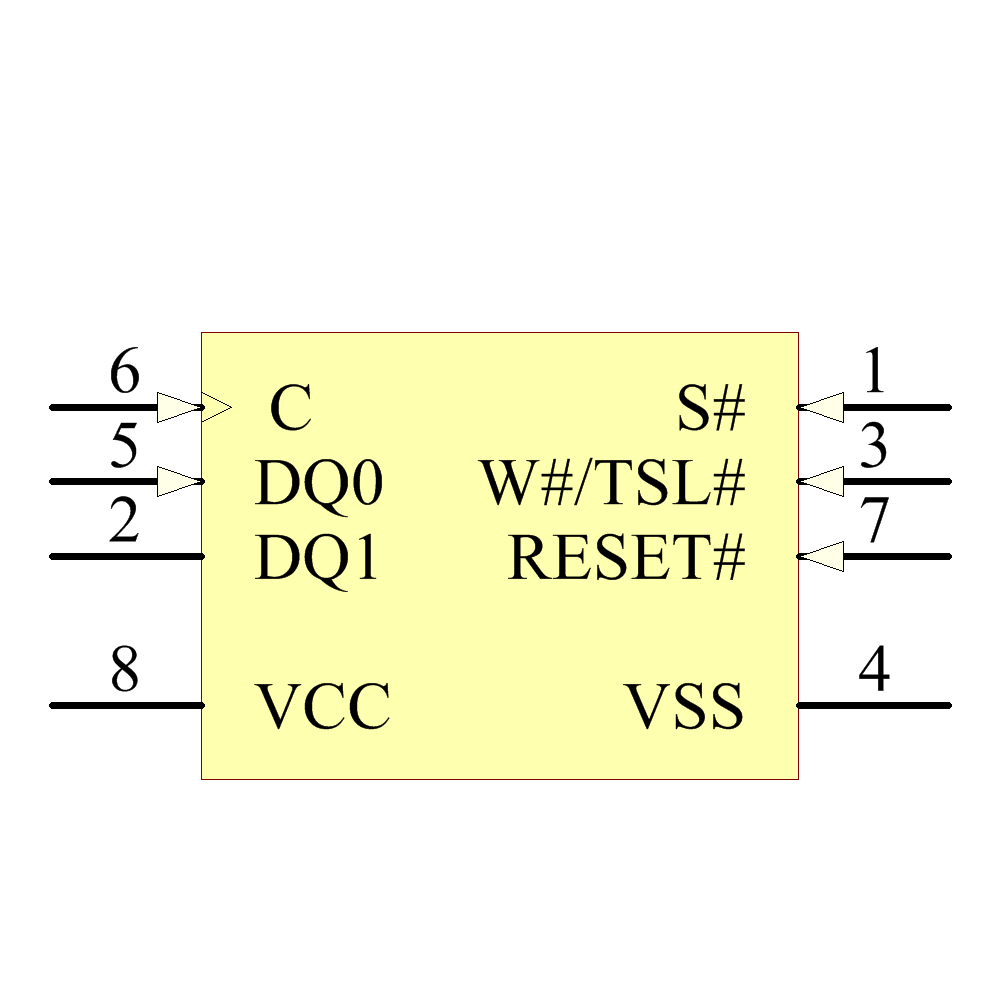

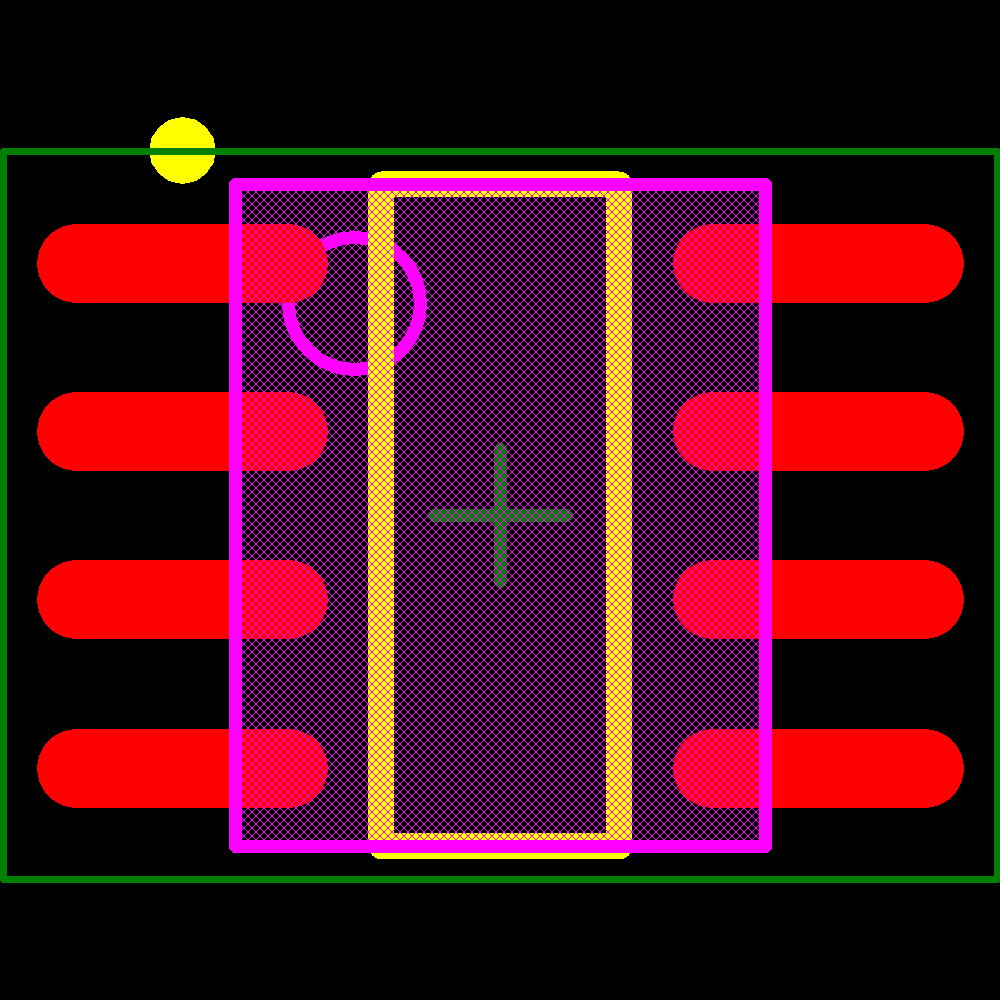

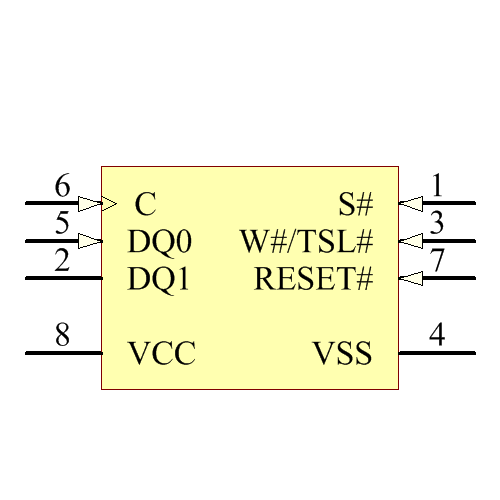

Images
