Technical Details
| Case/Package | TO-5 |
| Collector Emitter Breakdown Voltage | 40V |
| Collector Emitter Saturation Voltage | 300mV |
| Collector Emitter Voltage (VCEO) | 40V |
| Current Transfer Ratio | 100% |
| Dark Current | 100nA |
| Export Control Classification Number (ECCN) Code | 3A001.a.2.c |
| Fall Time | 20µs |
| Forward Current | 40mA |
| Forward Voltage | 1.3V |
| Harmonized Tariff Schedule (HTS) Code | 8541.40.80.00 |
| Introduction Date | 1990-01-10 |
| Isolation Voltage | 1000Vrms |
| Lifecycle Status | Production |
| Max Collector Current | 50mA |
| Max Operating Temperature | 125°C |
| Max Power Dissipation | 300mW |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Number of Elements | 1 |
| Number of Pins | 6 |
| Packaging | Tape and Reel |
| Power Dissipation | 300mW |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| Reverse Breakdown Voltage | 2V |
| Rise Time | 20µs |
| RoHS | Compliant |
| Schedule B | 8541408000|8541408000|8541408000|8541408000|8541408000 |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes

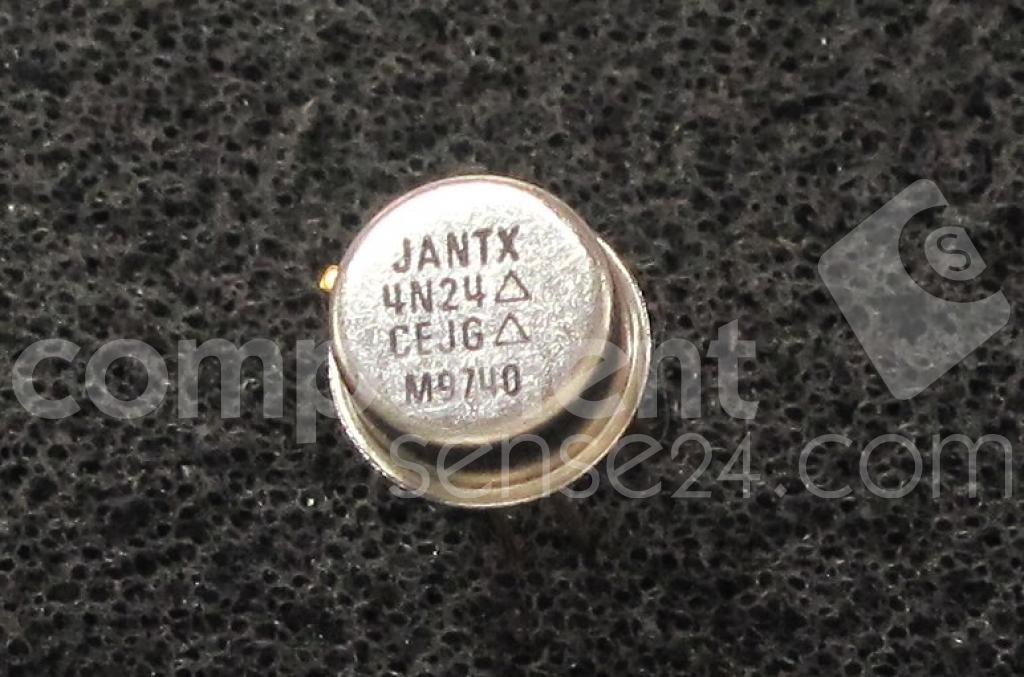

Images
Component Sense
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Texas Instruments | Unknown | ||
| Micropac | Production | ||
| Texas Instruments | Unknown | ||
| Micropac | Production | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Unknown | ||
| Micropac | Production | ||
| Optek | Unknown | ||
| Optek | Production | ||
| Optek | Production |
