SXBP-20R5+ - Mini-Circuits
Band Pass Filter, 1 Section(s) Min, 1 Section(s) Max, 20.5MHz, 8 Pin(s)
Technical Details
| Bandwidth | 1MHz |
| Cutoff Frequency | 20.5MHz |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Frequency | 20.5MHz |
| Height | 6.86mm |
| Impedance | 50Ω |
| Insertion Loss (dB) | 3dB |
| Introduction Date | 2017-01-31 |
| Length | 18.8mm |
| Lifecycle Status | Production |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Number of Terminals | 8 |
| RoHS | Compliant |
| Width | 11.18mm |
Compliance
RoHS : Unconfirmed

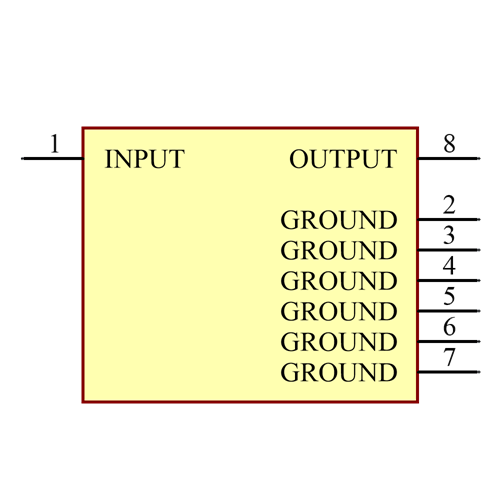

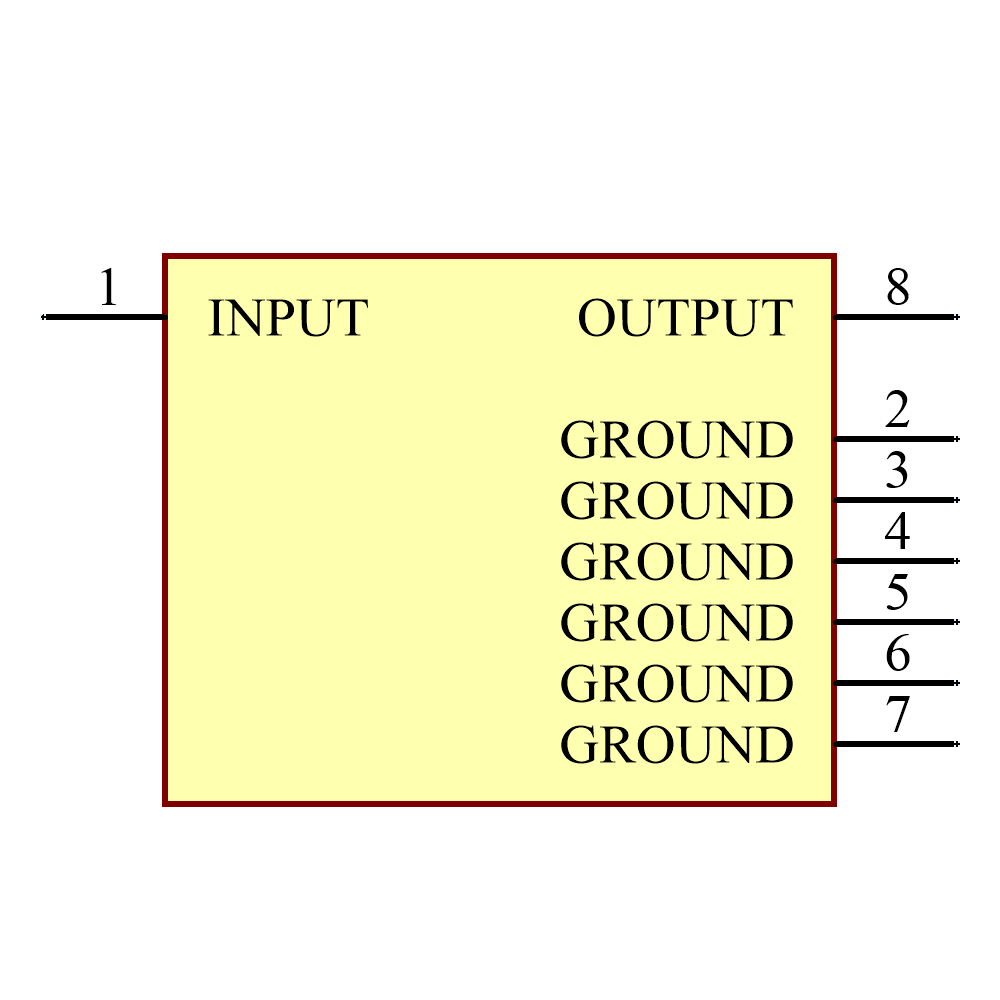

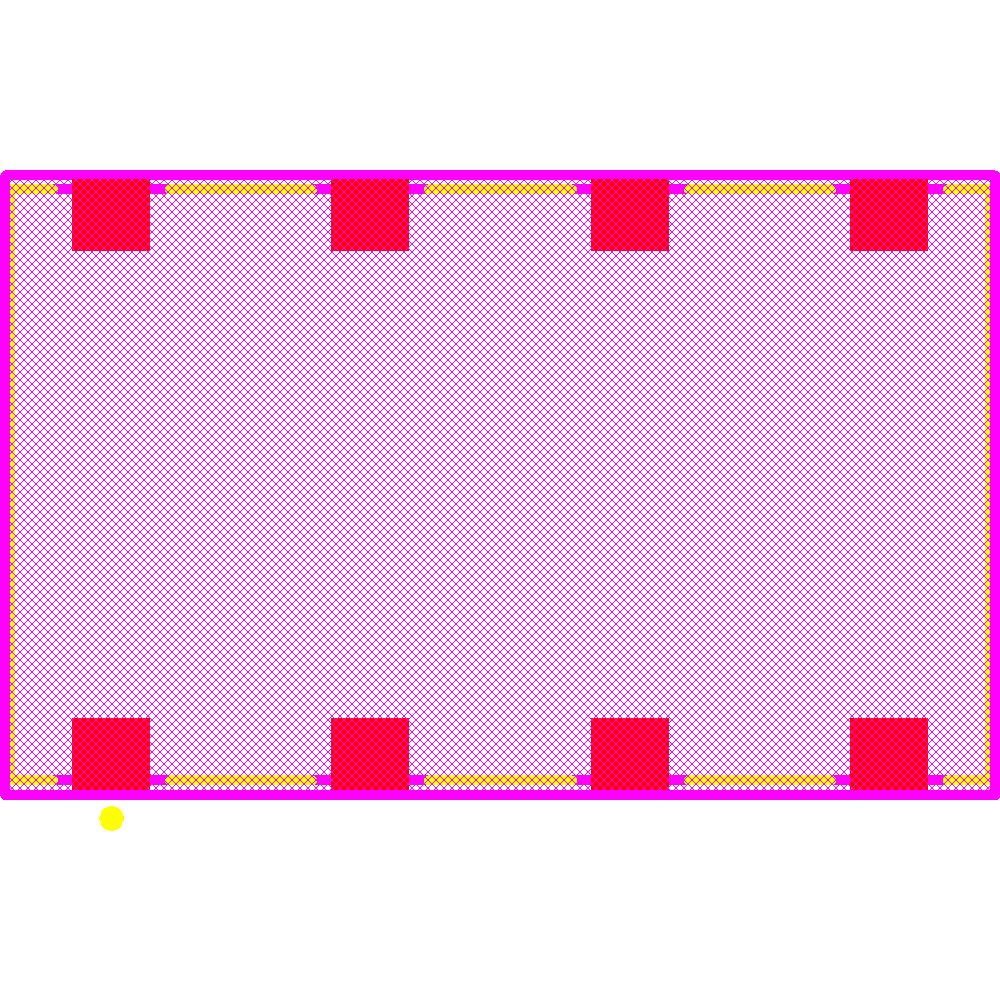

Images
Authorized Distributors
Non-Authorized Distributors
| Distributor | SKU | Stock | USD | 1 | 10 | 50 | 100 | 1000 | 10000 | Buy |
|---|---|---|---|---|---|---|---|---|---|---|
| Worldway Electronics |
HK: 36158
|
$ | 5.133 | 5.133 | 4.9758 | 4.7139 | 4.7139 | |||
| Eurochip Technologies LTD |
IL: 3064
|
$ | 16.19 | 16.19 | 16.19 | 16.19 | 16.19 | 16.19 | ||
