19418-0039 - Molex
Automotive Connectors Recpt 16P 16-14 Awg Dual Rohs Compliant: Yes |Molex 19418-0039
Technical Details
| China RoHS | Compliant |
| Color | Black |
| Contact Gender | Female |
| Country of Origin | US |
| Current Rating | 18A |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Flammability Rating | UL94 V-0 |
| Gender | Receptacle |
| Glow Wire Compliant | Non-compliant |
| Housing Material | Polymer |
| Harmonized Tariff Schedule (HTS) Code | 8536.69.40.30 |
| Introduction Date | 2004-10-15 |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Operating Temperature | 125°C |
| Max Voltage Rating (AC) | 600V |
| Min Operating Temperature | -40°C |
| Number of Contacts | 16 |
| Number of Pins | 16 |
| Number of Positions | 16 |
| Number of Rows | 2 |
| Orientation | Straight |
| Packaging | Bulk |
| Pitch | 5.84mm |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Termination | Crimp |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes

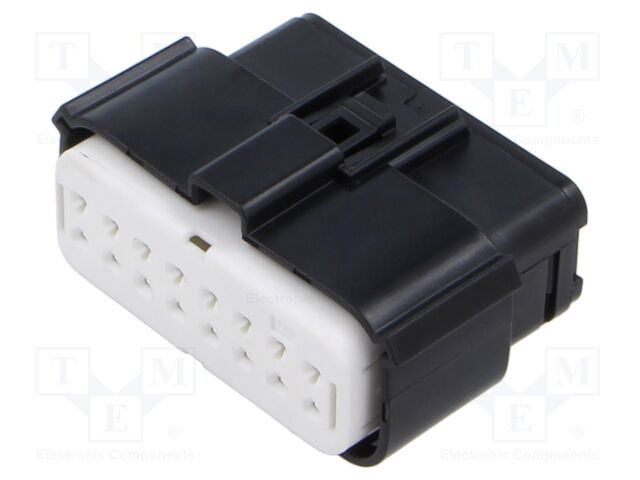

Images
