Integrated Circuits (ICs) > RF Semiconductors and Devices > RF Antennas

204774-0001 - Molex

Chip Antenna, Dual Band, Linear, 790 MHz to 960 MHz, 1.7 GHz to 2.7 GHz, Surface Mount

Technical Details

Body Material	Ceramic
China RoHS	Compliant
Country of Origin	CN
Frequency	1.71GHz
Height	3.25mm
Impedance	50Ω
Introduction Date	2020-04-17
Length	33mm
Lifecycle Status	Production
Manufacturer Lifecycle Status	ACTIVE
Max Frequency	960MHz
Max Operating Temperature	125°C
Min Operating Temperature	-40°C
Mount	Surface Mount
Number of Bands	2
Power Rating	2W
REACH SVHC	Yes
Return Loss	-6dB
RoHS	Compliant
Thickness	3mm
Width	6mm

Compliance

RoHS : Unconfirmed

REACH SVHC : Yes

Images

Datasheets

Lifecycle Status Indicator

Production

Symbol

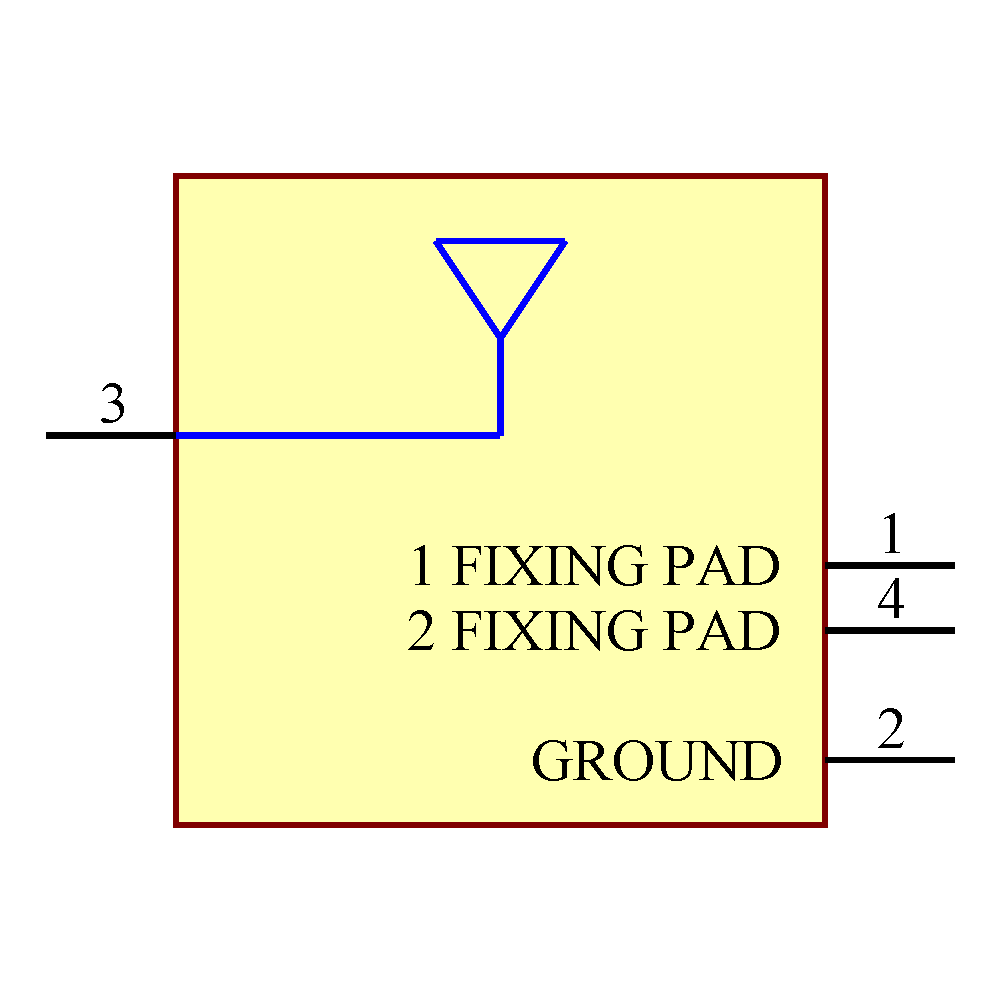

204774-0001 Symbol - Molex

204774-0001 Symbol - Molex

204774-0001 Symbol - Molex

204774-0001 Symbol - Molex

‹ ›

Footprint

204774-0001 Footprint - Molex

204774-0001 Footprint - Molex

204774-0001 Footprint - Molex

204774-0001 Footprint - Molex

‹ ›
