Connectors > Memory Connectors

47571-0001 - Molex

Memory Card Connector, MicroSD, Push-Pull, 8 Contacts, Phosphor Bronze, Gold Plated Contacts

Technical Details

China RoHS	Compliant
Contact Gender	Female
Contact Material	Gold, Nickel
Contact Plating	Gold
Contact Resistance	40mΩ
Country of Origin	US
Current Rating	500mA
Dielectric Material	Polyethylene
Export Control Classification Number (ECCN) Code	EAR99
Halogen Free	Low Halogen
Height	2.45mm
Housing Material	Stainless Steel
Harmonized Tariff Schedule (HTS) Code	8536.69.40.40
Insulation Resistance	100MΩ
Introduction Date	2000-12-21
Lifecycle Status	Production
Manufacturer Lifecycle Status	ACTIVE
Max Operating Temperature	85°C
Min Operating Temperature	-40°C
Number of Circuits	6
Number of Contacts	8
Number of Pins	8
Number of Rows	1
Orientation	Right Angle
Pitch	1.1mm
Plating	Nickel
Plating Thickness	762nm
REACH SVHC	Yes
RoHS	Compliant
Schedule B	8536695050, 8536695050\|8536695050, 8536695050\|8536695050\|8536695050, 8536695050\|8536695050\|8536695050\|8536695050
Terminal Pitch	1.1mm
Termination	SMD/SMT
Voltage Rating	5V

Compliance

RoHS : Unconfirmed

REACH SVHC : Yes

Images

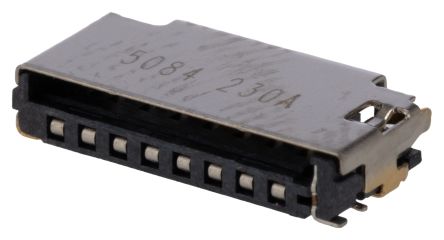

Molex 47571-0001 | RS
