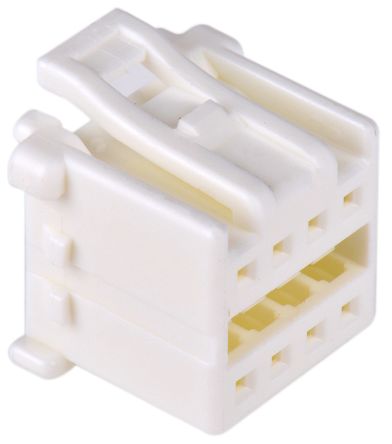

51353-0800 - Molex
2.00mm Pitch MicroClasp™ Wire-to-Board Receptacle Housing, Positive Lock, Dual Row, 8 circuits
Technical Details
| China RoHS | Compliant |
| Color | White |
| Contact Gender | Female |
| Contact Plating | Tin |
| Contact Resistance | 20mΩ |
| Current Rating | 4A |
| Depth | 10.9mm |
| Dielectric Material | Polyamide |
| Flammability Rating | UL94 V-0 |
| Gender | Receptacle |
| Glow Wire Compliant | Non-compliant |
| Halogen Free | Low Halogen |
| Housing Color | Natural |
| Housing Material | Nylon |
| Insulation Resistance | 1GΩ |
| Lead Pitch | 2mm |
| Length | 11.4mm |
| Lifecycle Status | Production |
| Max Operating Temperature | 85°C |
| Max Voltage Rating (DC) | 250.25kV |
| Min Operating Temperature | -25°C |
| Mount | Cable |
| Number of Circuits | 6 |
| Number of Contacts | 8 |
| Number of Pins | 8 |
| Number of Positions | 8 |
| Number of Rows | 1 |
| Orientation | Vertical |
| Pitch | 2mm |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Schedule B | 8536695050, 8536695050|8536695050, 8536695050|8536695050|8536695050, 8536695050|8536695050|8536695050|8536695050 |
| Termination | Crimp |
| Voltage Rating (AC) | 250V |
| Width | 11.5mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes
