Connectors > USB Connectors

67068-7041 - Molex

USB Connector, USB Type B, USB 2.0, Receptacle, 4 Ways, Through Hole Mount, Right Angle

Technical Details

China RoHS	Compliant
Color	Black
Connector Type	Receptacle, USB
Contact Gender	Female
Contact Material	Gold, Nickel
Contact Plating	Gold
Contact Resistance	30mΩ
Country of Origin	US
Current Rating	1.5A
Depth	17mm
Export Control Classification Number (ECCN) Code	EAR99
Flammability Rating	UL94 V-0
Gender	Female
Height	11.25mm
Housing Material	Nylon
Harmonized Tariff Schedule (HTS) Code	8536.69.40.30
Insulation Resistance	1GΩ
Introduction Date	2007-01-28
Length	12mm
Lifecycle Status	Production
Manufacturer Lifecycle Status	ACTIVE
Max Operating Temperature	50°C
Max Voltage Rating (AC)	30V
Min Operating Temperature	0°C
Mount	Through Hole
Number of Circuits	4
Number of Contacts	4
Number of Pins	4
Number of Ports	1
Number of Positions	4
Number of Rows	2
Number of Terminals	4
Orientation	Right Angle
Pitch	2.5mm
Plating	Tin
Plating Thickness	762nm
Radiation Hardening	No
REACH SVHC	Yes
RoHS	Compliant
Row Spacing	2mm
Schedule B	8536695050, 8536695050\|8536695050, 8536695050\|8536695050\|8536695050, 8536695050\|8536695050\|8536695050\|8536695050
Terminal Pitch	2.4892mm
Termination	Solder
USB Standard	USB 2.0
Voltage Rating	30V

Compliance

RoHS : Unconfirmed

Radiation Hardening : No

REACH SVHC : Yes

Images

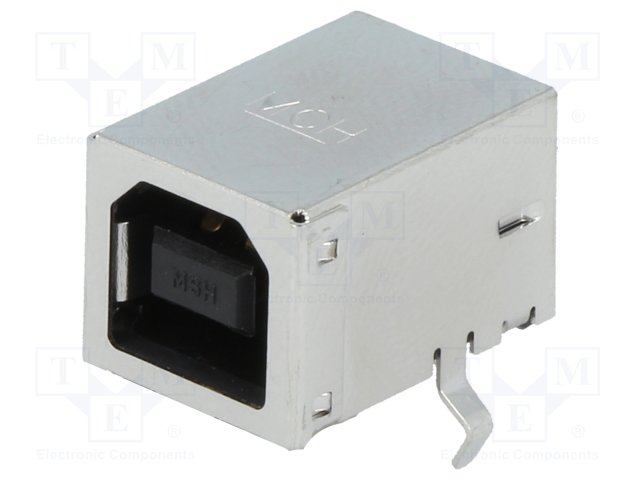

Molex 67068-7041 | TME

TME

Datasheets

Lifecycle Status Indicator

Production

Alternatives (Possible Substitutes)

Manufacturer	Manufacturer Part No.	Lifecycle Status Indicator	Confidence
Molex	67068-9001	Obsolete
Molex	67068-9000	Production
Molex	67068-8010	Production
Kycon	KUSBX-BSFS1N-B30	Obsolete
TE Connectivity / AMP	292304-4	Production
Molex	67068-8001	Production
Molex	67068-2041	Obsolete
Molex	67248-0000	Obsolete
TE Connectivity	292304-3	Production
TE Connectivity	292304-1	Production

See more alternatives See less alternatives
