Connectors > USB Connectors

67068-8010 - Molex

USB Connector, USB Type B, USB 2.0, Receptacle, 4 Ways, Through Hole Mount, Right Angle

Technical Details

China RoHS	Compliant
Connector Type	Receptacle, USB
Contact Gender	Female
Contact Material	Bronze, Tin
Contact Plating	Gold
Contact Resistance	30mΩ
Country of Origin	JP
Current Rating	1.5A
Export Control Classification Number (ECCN) Code	EAR99
Gender	Female
Housing Material	Nylon
Harmonized Tariff Schedule (HTS) Code	8536.69.40.30
Insulation Resistance	1GΩ
Introduction Date	2009-11-18
Lifecycle Status	Production
Manufacturer Lifecycle Status	ACTIVE
Max Operating Temperature	50°C
Max Voltage Rating (AC)	30V
Min Operating Temperature	0°C
Mount	Through Hole
Number of Circuits	4
Number of Contacts	4
Number of Pins	4
Number of Ports	1
Number of Rows	2
Number of Terminals	4
Orientation	Right Angle
Pitch	2.5mm
Plating	Tin
Radiation Hardening	No
REACH SVHC	Yes
RoHS	Compliant
Row Spacing	2mm
Schedule B	8536695050, 8536695050\|8536695050\|8536695050\|8536695050\|8536695050
Shell Finish	Tin
Terminal Pitch	2.4892mm
Termination	Solder
USB Standard	USB 2.0
Voltage Rating	30V

Compliance

RoHS : Unconfirmed

Radiation Hardening : No

REACH SVHC : Yes

Images

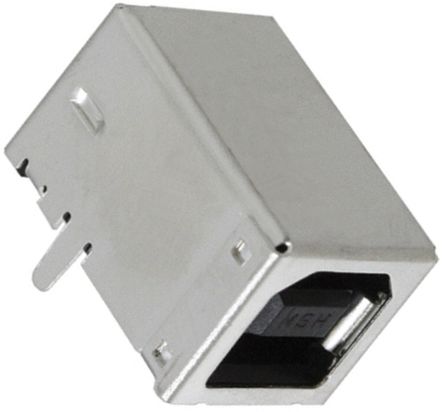

Molex 67068-8010 | RS

RS

Datasheets

Lifecycle Status Indicator

Production

Alternatives (Possible Substitutes)

Manufacturer	Manufacturer Part No.	Lifecycle Status Indicator	Confidence
Molex	67068-9000	Production
Molex	67068-9001	Obsolete
Molex	67068-7041	Production
Molex	67068-8110	Obsolete
Molex	67068-9011	Production

Authorized Distributors

Distributor

SKU

Stock

USD

1

10

50

100

1000

10000

Buy

RS

DE: 352

$

1.9354

1.9354

1.6026

1.5533

1.5286

1.5286

Farnell

DE: 1400

$

1.6889

1.6272

1.6272

Farnell

DE: 337

$

2.3669

1.8984

1.8984

1.5779

1.4546

1.4546

Powell Electronics

US: 980

$

1.33

1.28

1.28

Arrow Electronics

US: 2278

$

1.684

1.4889

1.3492

1.29

1.1629

1.0982

Verical

US: 2275

$

1.5077

1.3662

1.3063

1.1776

1.0361

Verical

US: 1245

$

1.33

1.33

1.33

1.33

1.27

1.27

Verical

US: 240

$

1.5156

1.5156

Verical

US: 79

$

1.9091

1.9091

1.9091

1.9091

TME

PL: 79

$

1.7135

1.5286

1.4177

1.3683

1.3683

1.3683

DigiKey

DE: 1257

$

2.08

1.764

1.5744

1.4991

1.3381

1.1642

Avnet Abacus

EU: 4950

$

Avnet Abacus

EU: 0

$

Heilind Europe

EU: 0

$

0.9935

Heilind Europe

EU: 0

$

Sager Electronics

US: 0

$

1.09

Conrad

DE: 12

$

2.8969

2.8969

2.8969

2.8969

2.8969

2.8969

TTI Europe

DE: 3850

$

1.43

1.3683

1.2327

1.1711

TTI Europe

DE: 3850

$

1.43

1.3683

1.2327

1.1711

Avnet

US: 0

$

1.0931

TTI Asia

SG: -3

$

1.22

Newark

US: 337

$

2.09

1.85

1.64

1.63

1.55

1.55

element14 APAC

SG: 337

$

1.9199

1.6846

1.6846

1.4494

1.3431

1.3431

JRH Electronics

US: 1245

$

1.3952

1.3952

1.344

1.1008

Mouser

US: 218

$

2.08

1.77

1.58

1.50

1.34

1.16

Heilind Americas

US: 0

$

1.1235

Heilind Americas

US: 0

$

1.1235

Interstate Connecting Components

US: 0

$

1.1235

Interstate Connecting Components

US: 0

$

1.1235

Non-Authorized Distributors

Distributor

SKU

Stock

USD

1

10

50

100

1000

10000

Buy

UnikeyIC

SG: 1400

$

0.6207

0.6207

0.6207

UnikeyIC

SG: 300

$

0.8522

0.8522

0.8522

0.8522

LCSC

CN: 1022

$

0.9129

0.8363

0.7964

0.7581

0.7246

0.7246

Rapid Electronics

GB: 12

$

3.2797

2.7081

2.3679

2.2182

2.2182

Ansinor

CN: 1310

$

1.7743

1.5089

1.5089

1.2829

1.2829

0.989

Bettlink

HK: 1306

$

1.7056

1.4961

1.4961

1.3601

1.1992

1.1313

Master Electronics

US: 1245

$

1.34

1.29

1.29

Chipsmall Limited

CN: 300

$

2.06

1.854

1.854

1.1845

1.03

1.03

Onlinecomponents.com

US: 1245

$

1.34

1.29

1.29

Classic Components

US: 10850

$

Sourcengine

US: 1245

$

TestEquity

US: 1245

$

1.45

1.45

1.45

1.45
