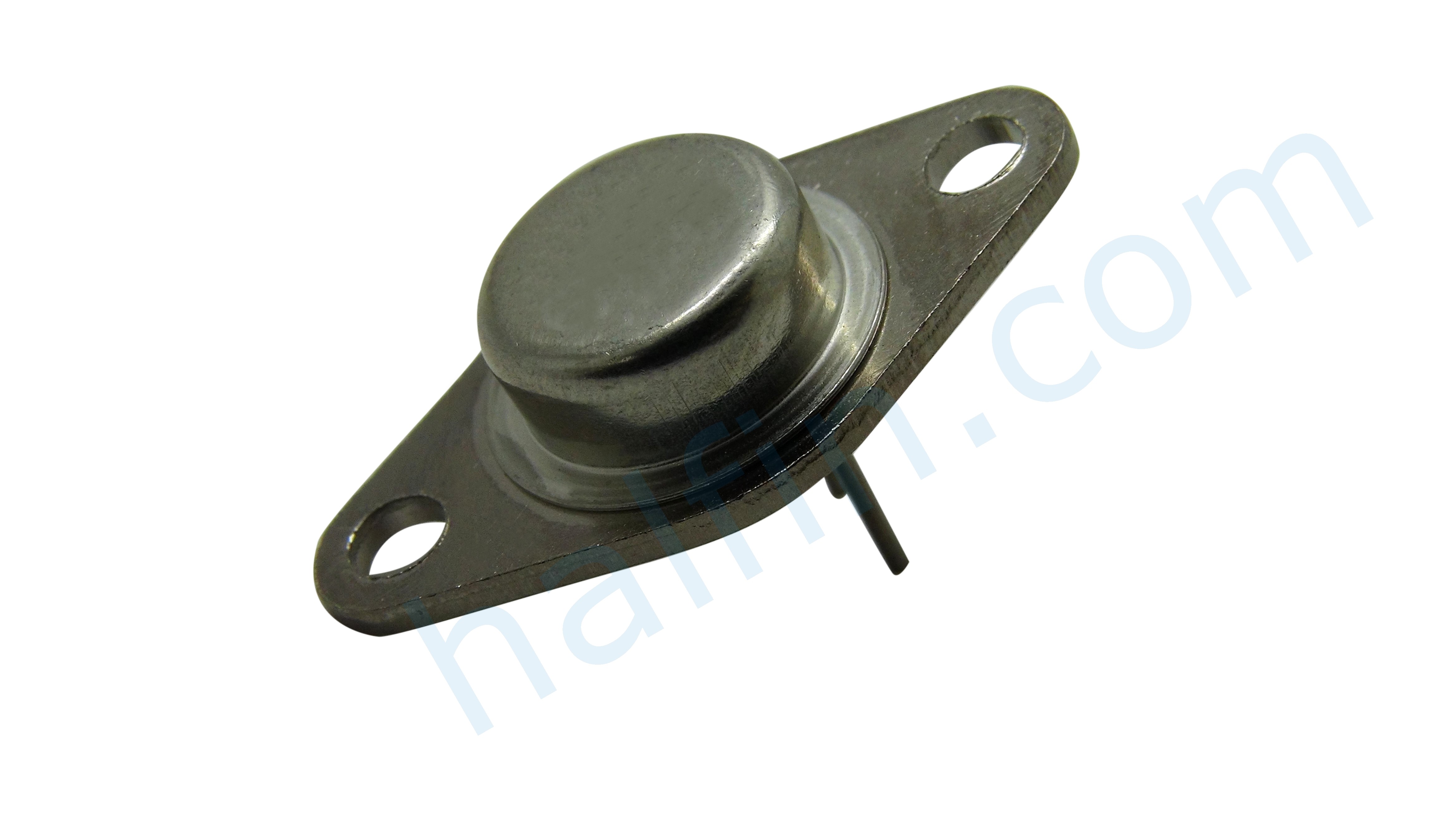

2N3054 - Motorola
Power Bipolar Transistor, 4A I(C), 60V V(BR)CEO, 1-Element, NPN, Silicon, TO-213AA, Metal, 2 Pin
Technical Details
| Body Material | Metal |
| Collector Emitter Voltage (VCEO) | 55V |
| Country of Origin | USA |
| Export Control Classification Number (ECCN) Code | EAR99 |
| hFE Min | 25 |
| Harmonized Tariff Schedule (HTS) Code | 8541.29.00.95 |
| Introduction Date | 1980-07-11 |
| Lifecycle Status | Obsolete |
| Max Collector Current | 4A |
| Max Operating Temperature | 200°C |
| Max Power Dissipation | 25W |
| Number of Elements | 1 |
| Number of Terminals | 2 |
| Power Dissipation | 75W |
| RoHS | Non-Compliant |
| Transition Frequency | 30kHz |
Compliance
RoHS : Unconfirmed
