2N3772 - Multicomp
Power Bipolar Transistor, 20A I(C), 60V V(BR)CEO, 1-Element, NPN, Silicon, TO-3, Metal, 2 Pin
Technical Details
| Body Material | Metal |
| Case/Package | TO-3 |
| Collector Emitter Breakdown Voltage | 60V |
| Collector Emitter Voltage (VCEO) | 60V |
| hFE Min | 5 |
| Lifecycle Status | Production |
| Max Collector Current | 20A |
| Max Operating Temperature | 200°C |
| Max Power Dissipation | 150W |
| Min Operating Temperature | -65°C |
| Number of Elements | 1 |
| Number of Pins | 2 |
| Number of Terminals | 2 |
| Polarity | NPN |
| Power Dissipation | 150W |
| REACH SVHC | No |
| RoHS | Compliant |
| Transition Frequency | 200kHz |
Compliance
RoHS : Unconfirmed
REACH SVHC : No

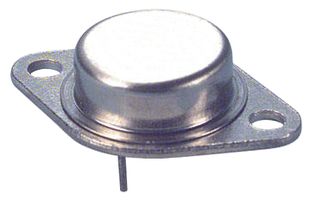

Images
Newark
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Semelab | Unknown | ||
| Microchip | Production | ||
| onsemi | Obsolete | ||
| STMicroelectronics | Obsolete | ||
| Texas Instruments | Unknown | ||
| onsemi | Obsolete | ||
| Motorola | Obsolete | ||
| Microchip | Production | ||
| Microchip | Production | ||
| Microchip | Production |
