Nexperia - 74AHCT594PW,118

74AHCT594PW,118 - Nexperia

HCT 74AHCT594 ROHS3Compliant Tape & Reel (TR) shift register 8.8ns 172.98879mg 2V -40C~125C

 Datasheets

Technical Details

Case/Package TSSOP
China RoHS Compliant
Clock Edge Trigger Type Positive Edge
Contact Plating Gold
Country of Origin Thailand
Direction Unidirectional
Frequency 70MHz
Height - Seated (Max) 1.1mm
Harmonized Tariff Schedule (HTS) Code 8542.39.00.01
Introduction Date 2006-07-05
Length 5mm
Lifecycle Status Production
Load Capacitance 50pF
Logic Function Shift Register
Manufacturer Lifecycle Status RELEASED FOR SUPPLY
Max Operating Temperature 125°C
Max Supply Current 75mA
Max Supply Voltage 5.5V
Min Operating Temperature -40°C
Min Supply Voltage 2V
Mount Surface Mount
Number of Bits 8
Number of Bits per Element 8
Number of Circuits 1
Number of Elements 1
Number of Input Lines 1
Number of Output Lines 9
Number of Pins 16
Number of Terminals 16
Operating Supply Voltage 5V
Propagation Delay 11ns
Radiation Hardening No
REACH SVHC Yes
RoHS Compliant
Temperature Grade Automotive
Terminal Pitch 650µm
Turn-On Delay Time 11.7ns
Weight 172.98879mg
Width 4.4mm

Compliance

   RoHS : Unconfirmed
   Radiation Hardening : No
   REACH SVHC : Yes

Images

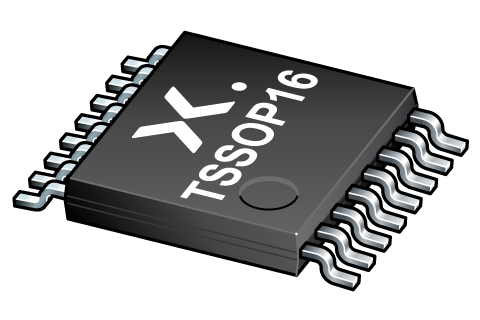

Nexperia 74AHCT594PW,118 | element14 APAC
