74HCT595BQ,115 - Nexperia
8-bit serial-in, serial or parallel-out shift register with output latches; 3-state
Technical Details
| Case/Package | SOT-763 |
| China RoHS | Compliant |
| Clock Edge Trigger Type | Positive Edge |
| Contact Plating | Gold |
| Country of Origin | Mainland China, Thailand |
| Direction | Unidirectional |
| Frequency | 20MHz |
| Height - Seated (Max) | 1mm |
| Harmonized Tariff Schedule (HTS) Code | 8542.39.00.01 |
| Introduction Date | 2003-06-27 |
| Lead Free | Lead Free |
| Length | 3.5mm |
| Lifecycle Status | Production |
| Load Capacitance | 50pF |
| Logic Function | Shift Register |
| Manufacturer Lifecycle Status | RELEASED FOR SUPPLY |
| Max Operating Temperature | 125°C |
| Max Supply Current | 70mA |
| Max Supply Voltage | 5.5V |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 4.5V |
| Mount | Surface Mount |
| Number of Bits | 8 |
| Number of Bits per Element | 8 |
| Number of Circuits | 1 |
| Number of Elements | 1 |
| Number of Input Lines | 3 |
| Number of Output Lines | 9 |
| Number of Pins | 16 |
| Number of Terminals | 16 |
| Operating Supply Voltage | 5V |
| Packaging | Tape & Reel (TR) |
| Propagation Delay | 63ns |
| Quiescent Current | 160µA |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Schedule B | 8542390000, 8542390000|8542390000, 8542390000|8542390000|8542390000, 8542390000|8542390000|8542390000|8542390000 |
| Temperature Grade | Automotive |
| Terminal Pitch | 500µm |
| Turn-On Delay Time | 63ns |
| Width | 2.5mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes

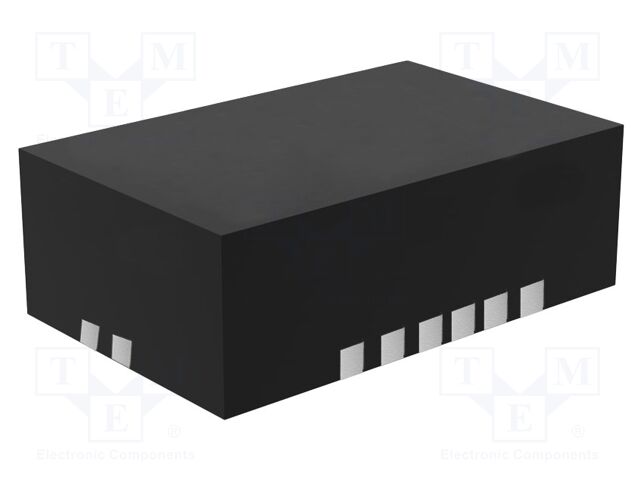

Images
TME
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Nexperia | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | Obsolete | ||
| Texas Instruments | Production | ||
| STMicroelectronics | Obsolete | ||
| STMicroelectronics | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production |
