Discrete Semiconductors  >  Diodes  >  Schottky Diodes

Nexperia - BAS70-07,215

BAS70-07,215 - Nexperia

Rectifier Diode, Schottky, 1 Phase, 2 Element, 0.07A, 70V V(RRM), Silicon

 Datasheets

Technical Details

Ambient Temperature Range High 150°C
Capacitance 2pF
China RoHS Compliant
Contact Plating Tin
Export Control Classification Number (ECCN) Code EAR99
Forward Current 70mA
Forward Voltage 410mV
Height 1.1mm
Harmonized Tariff Schedule (HTS) Code 8541.10.00.70
Introduction Date 1996-10-01
Lifecycle Status Production
Manufacturer Lifecycle Status RELEASED FOR SUPPLY
Max Forward Surge Current (Ifsm) 100mA
Max Junction Temperature (Tj) 150°C
Max Operating Temperature 150°C
Max Output Current 70mA
Min Operating Temperature -65°C
Number of Elements 2
Number of Pins 4
Number of Terminals 4
Peak Reverse Current 100nA
REACH SVHC Yes
Reverse Standoff Voltage 50V
Reverse Voltage 70V
RoHS Compliant
Schedule B 8541100070, 8541100070|8541100070, 8541100070|8541100070|8541100070, 8541100070|8541100070|8541100070|8541100070

Compliance

   RoHS : Unconfirmed
   REACH SVHC : Yes

Images

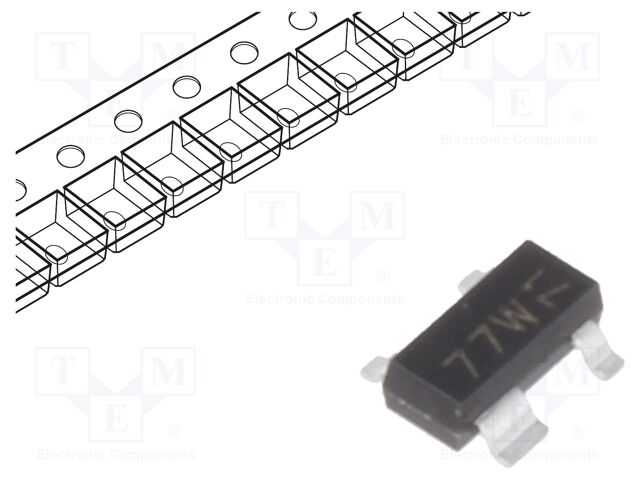

Nexperia BAS70-07,215 | TME

TME

Datasheets

 TME
 DigiKey
 DigiKey

Lifecycle Status Indicator

   Production

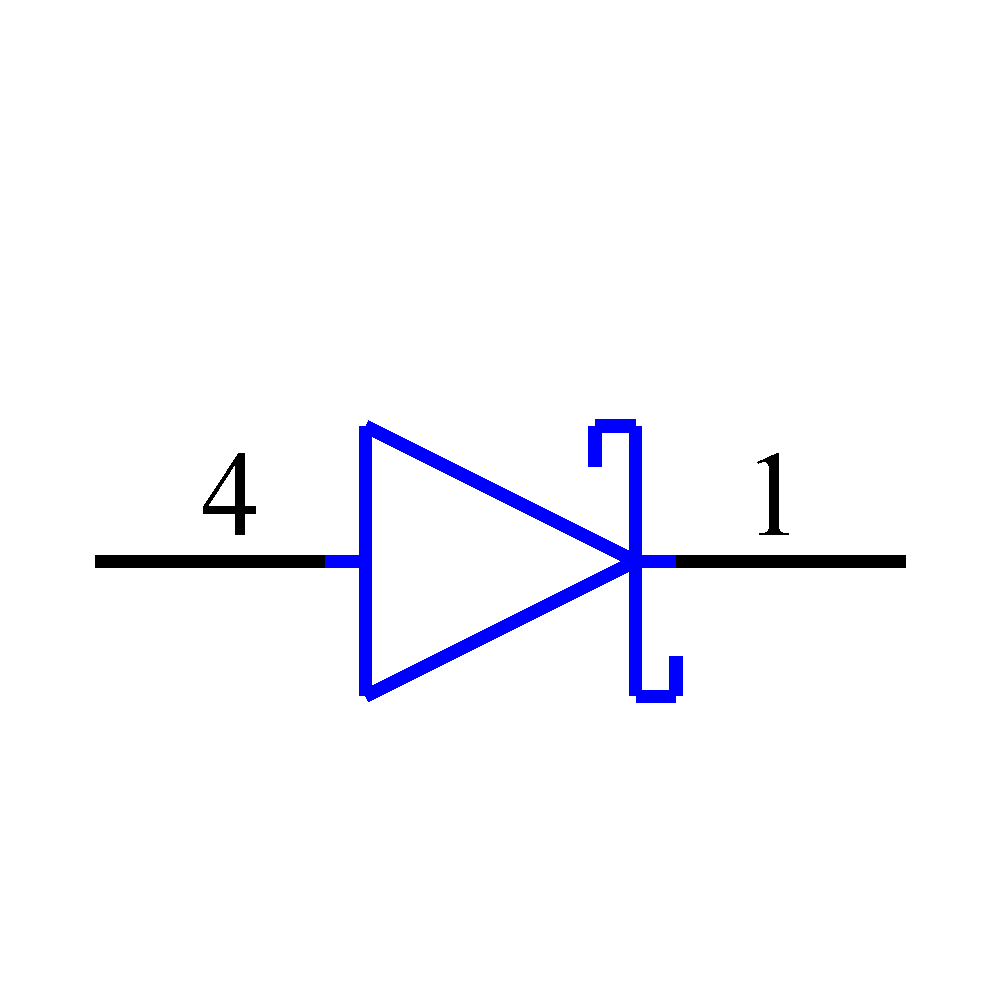

Symbol

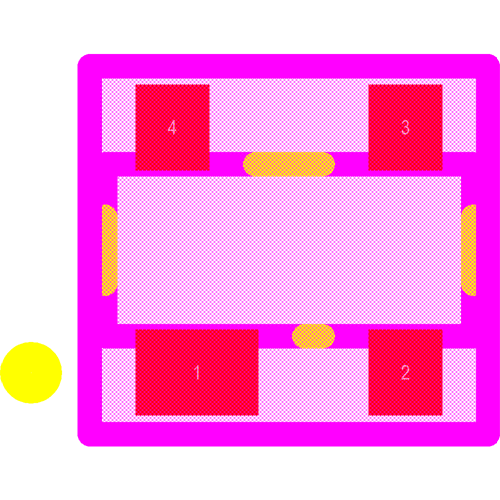

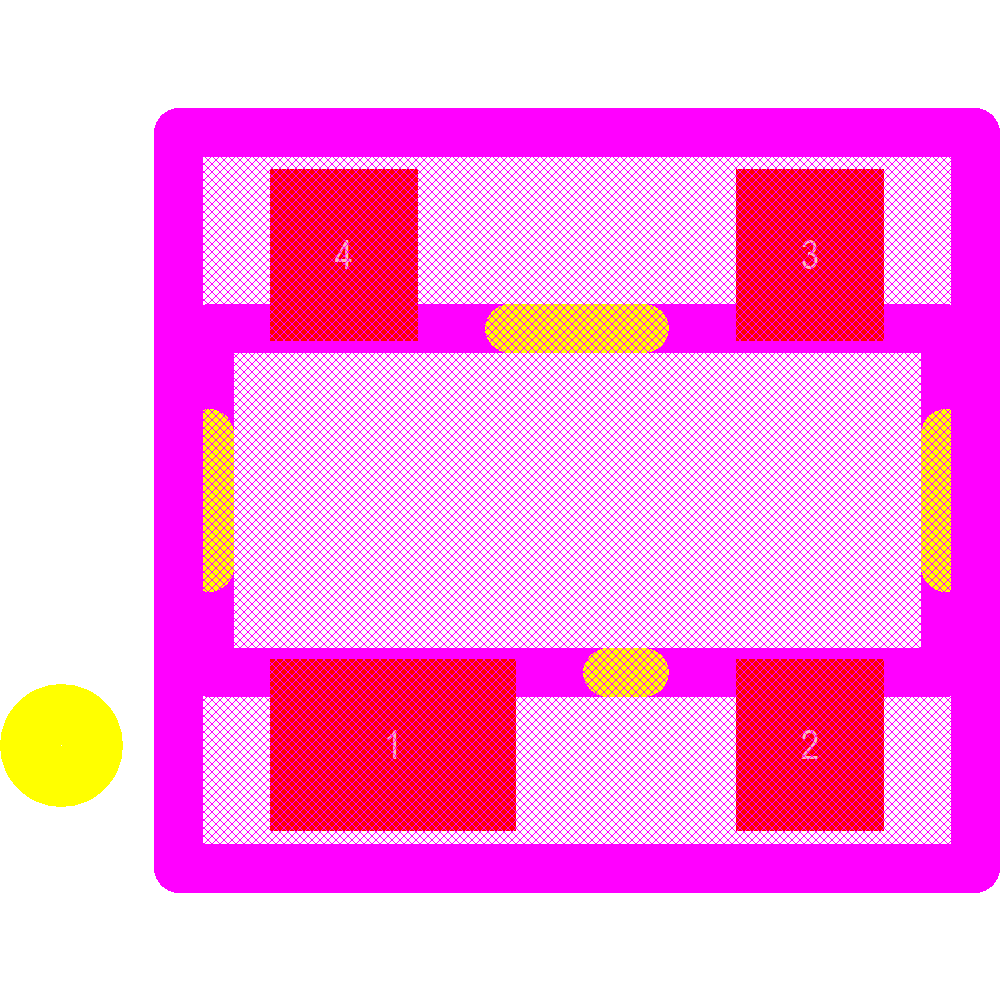

Footprint

Alternatives (Possible Substitutes)

Manufacturer Manufacturer Part No. Lifecycle Status Indicator Confidence
Broadcom
HSMS-2865-TR2G
Obsolete
Broadcom
HSMS-2805-TR2G
Obsolete
Agilent
HSMS-2805-TR1
Obsolete
Skyworks Solutions
SMS7621-015
Obsolete
Central Semiconductor
BAW100
Obsolete
Broadcom
HSMS-2825-TR2G
Obsolete
NXP Semiconductors
BAS40-07/DG,215
Obsolete
Broadcom
HSMS-2865-TR1G
Obsolete
Central Semiconductor
BAS56 BK
Unknown
Central Semiconductor
BAW101
Obsolete

See more alternatives See less alternatives
