Discrete Semiconductors  >  Transistors  >  BJTs

Nexperia - BCP69-16,115

BCP69-16,115 - Nexperia

Power Bipolar Transistor, 1A I(C), 20V V(BR)CEO, 1-Element, PNP, Silicon, Plastic/Epoxy, 4 Pin

 Datasheets

Technical Details

Ambient Temperature Range High 150°C
Collector Base Voltage (VCBO) -32V
Collector Emitter Saturation Voltage 500mV
Collector Emitter Voltage (VCEO) 20V
Contact Plating Tin
Country of Origin Mainland China
Export Control Classification Number (ECCN) Code EAR99
Emitter Base Voltage (VEBO) -5V
Gain Bandwidth Product 140MHz
Height 1.8mm
hFE Min 40
Harmonized Tariff Schedule (HTS) Code 8541.29.00.75
Introduction Date 1997-09-01
Lifecycle Status Production
Manufacturer Lifecycle Status RELEASED FOR SUPPLY
Max Collector Current 1A
Max Junction Temperature (Tj) 150°C
Max Operating Temperature 150°C
Max Power Dissipation 1.35W
Min Operating Temperature -55°C
Number of Elements 1
Number of Pins 3
Number of Terminals 4
Polarity PNP
Power Dissipation 650mW
REACH SVHC Yes
RoHS Compliant
Schedule B 8541290080, 8541290080|8541290080, 8541290080|8541290080|8541290080, 8541290080|8541290080|8541290080|8541290080
Transition Frequency 40MHz

Compliance

   RoHS : Unconfirmed
   REACH SVHC : Yes

Images

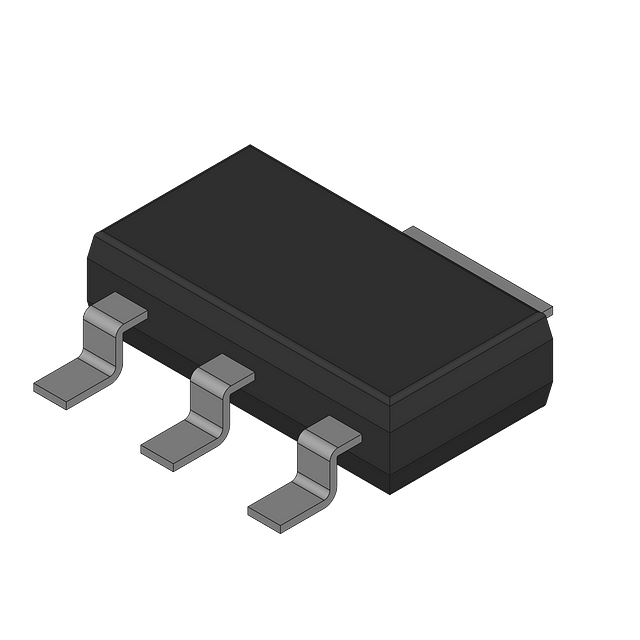

Nexperia BCP69-16,115 | Rochester Electronics

Rochester Electronics

Datasheets

 Rochester Electronics
 Avnet
 Verical

Lifecycle Status Indicator

   Production
Symbol

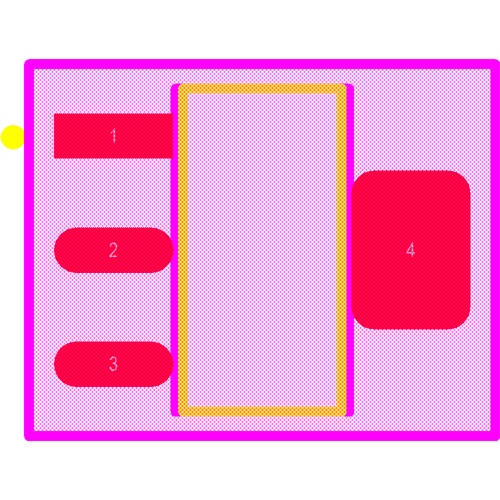

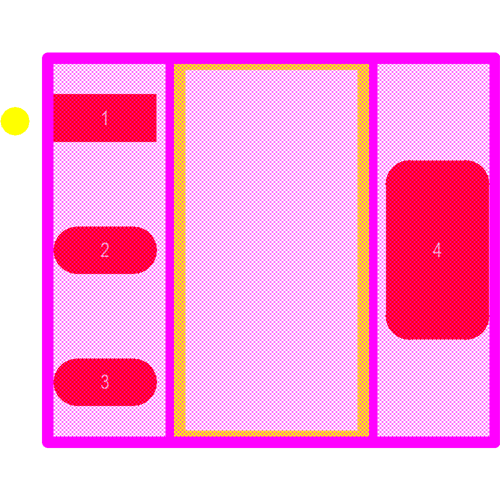

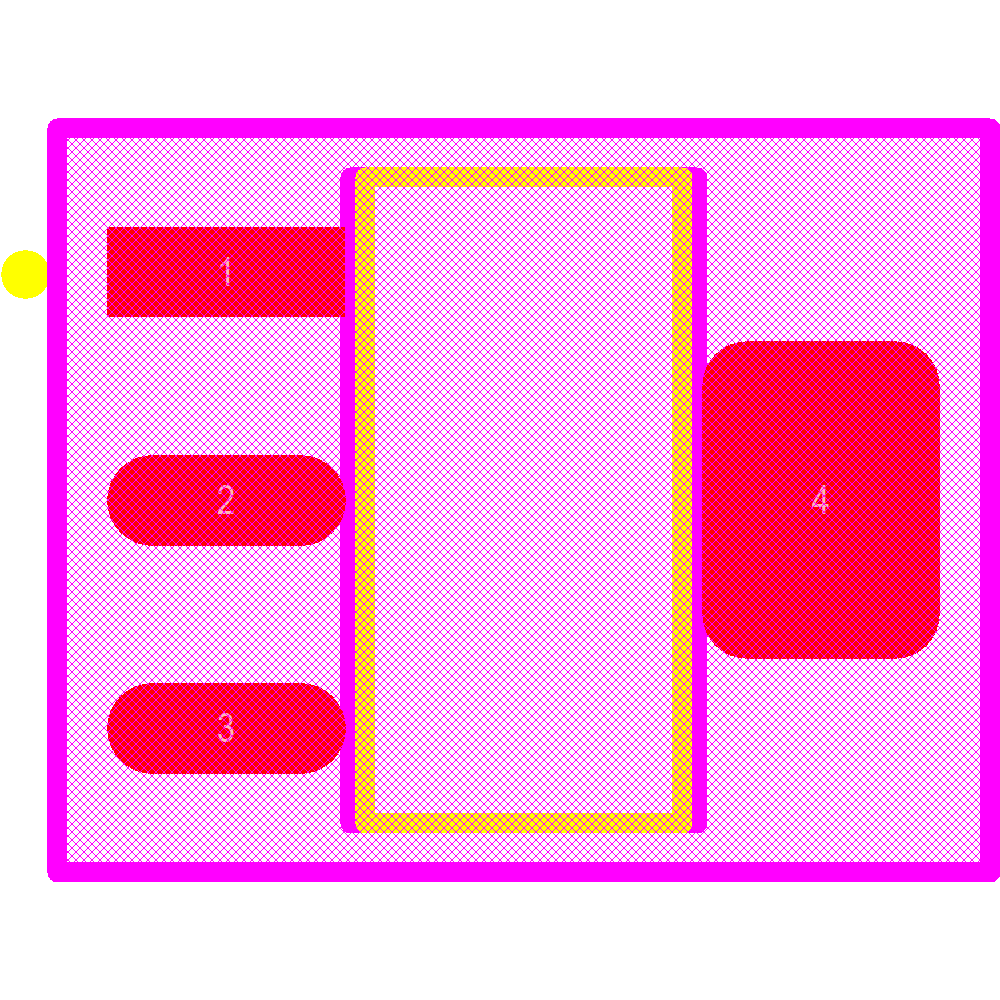

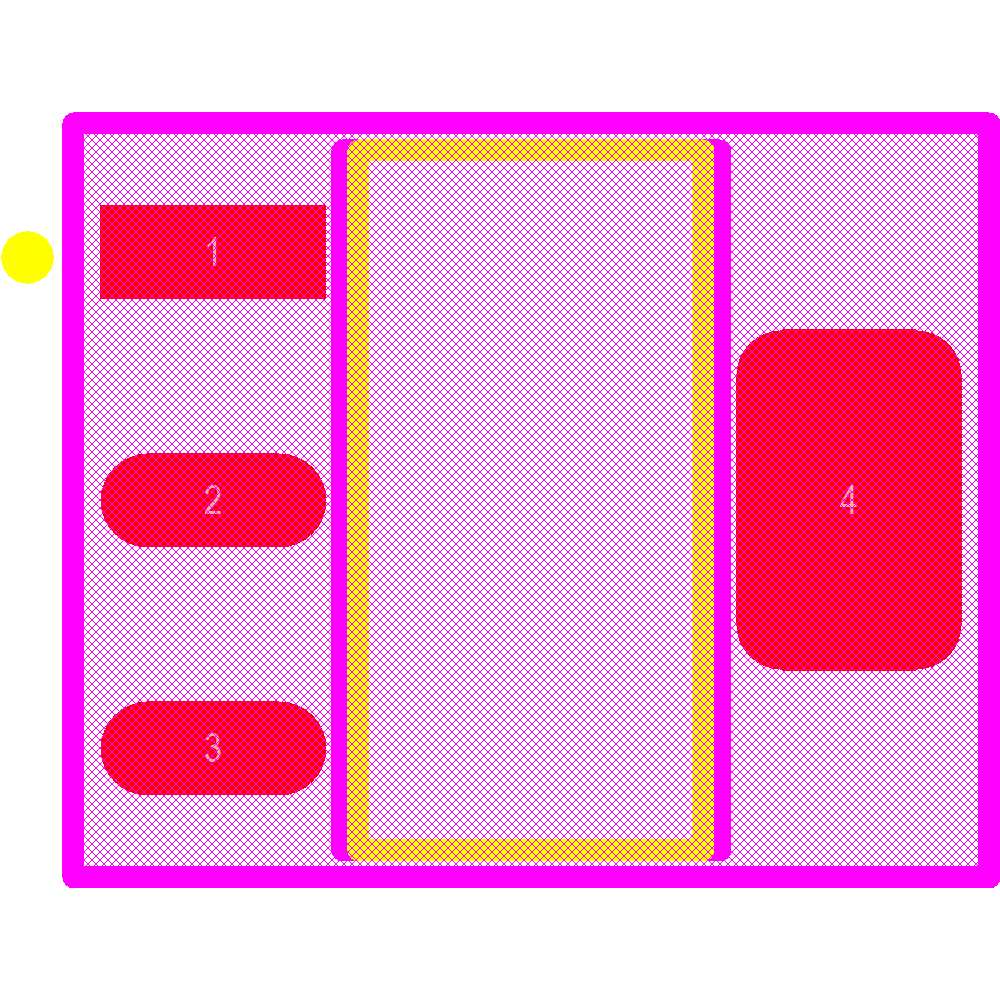

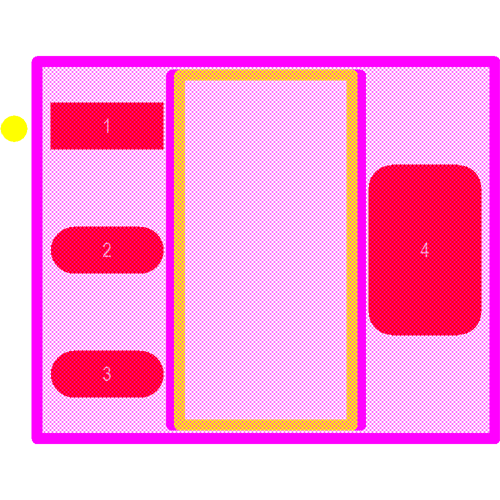

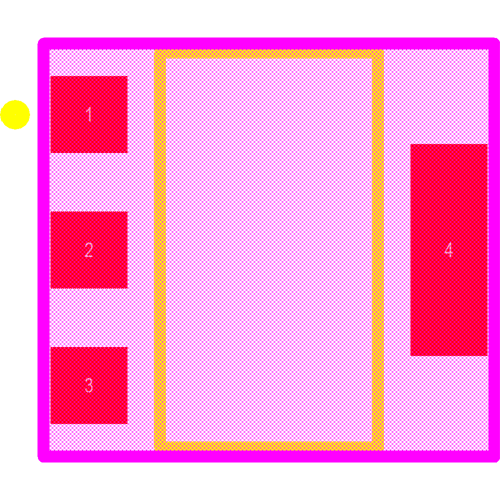

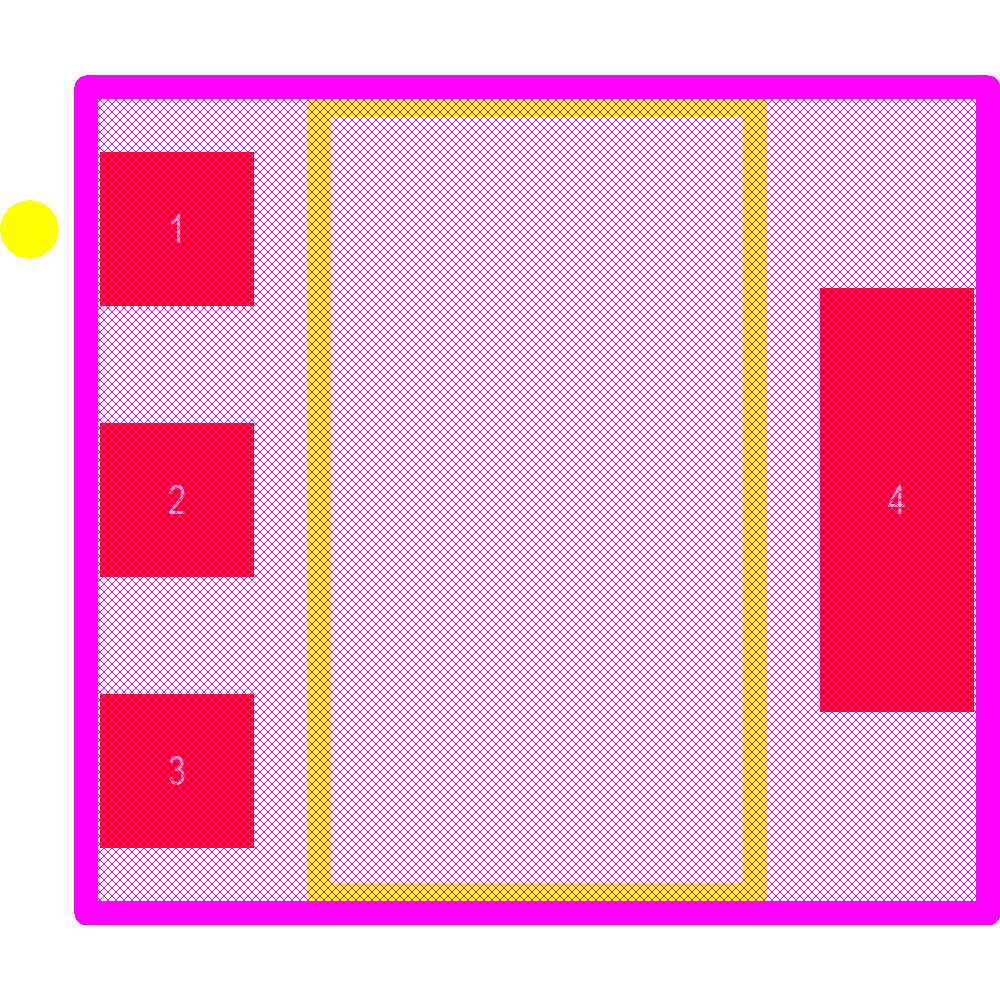

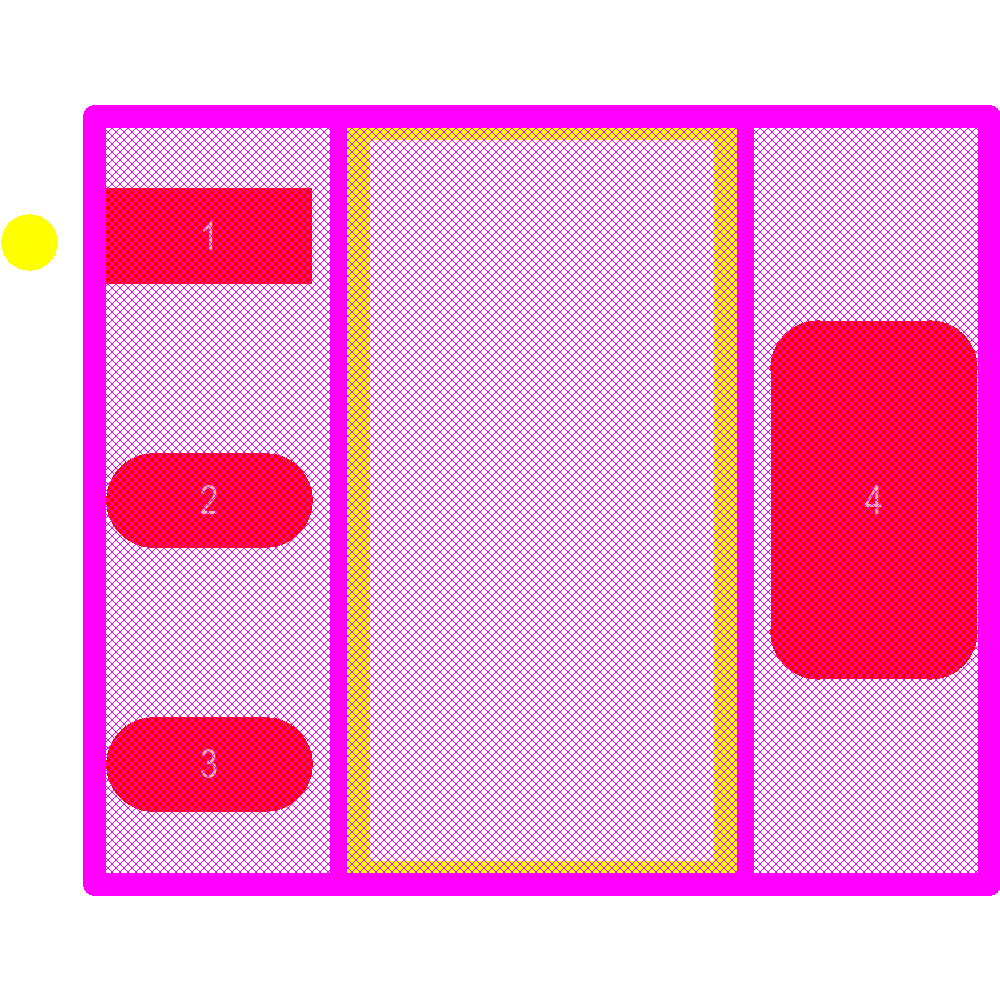

Footprint

Alternatives (Possible Substitutes)

Manufacturer Manufacturer Part No. Lifecycle Status Indicator Confidence
Infineon
BCP69
Obsolete
Infineon
BCP69E6327
Obsolete
NXP Semiconductors
BCP69-T/R
Obsolete
Infineon
BCP69-16
Obsolete
onsemi
BCP69T1
Obsolete
onsemi
BCP69T1G
Production
Nexperia
BCP69,115
Production
Diodes Inc.
BCP69TA
Obsolete
Nexperia
BCP69,135
Production
NXP Semiconductors
BCP69-25T/R
Obsolete

See more alternatives See less alternatives
