Discrete Semiconductors  >  Diodes  >  Zener Diodes

Nexperia - BZV55-C12,115

BZV55-C12,115 - Nexperia

Zener Diode; BZV55-C12, 115; 12V; 5%; 500mW; -55+175 deg.C; SMD; DO213AA(MiniMELF)

 Datasheets

Technical Details

Body Material Glass
China RoHS Compliant
Contact Plating Tin
Country of Origin Mainland China
Export Control Classification Number (ECCN) Code EAR99
Forward Current 250mA
Height 1.6mm
Harmonized Tariff Schedule (HTS) Code 8541.10.00.50
Impedance 10Ω
Introduction Date 1991-04-01
Lifecycle Status Production
Manufacturer Lifecycle Status RELEASED FOR SUPPLY
Max Junction Temperature (Tj) 200°C
Max Operating Temperature 200°C
Max Power Dissipation 400mW
Max Reverse Leakage Current 100nA
Min Operating Temperature -65°C
Number of Elements 1
Number of Pins 2
Number of Terminals 2
Peak Reverse Current 100nA
Polarity Unidirectional
Power Dissipation 400mW
REACH SVHC Yes
Reference Voltage 12V
Reverse Standoff Voltage 8V
Reverse Voltage 8V
RoHS Compliant
Schedule B 8541100050, 8541100050|8541100050|8541100050|8541100050|8541100050
Voltage Tolerance 5%
Zener Current 5mA
Zener Voltage 12V

Compliance

   RoHS : Unconfirmed
   REACH SVHC : Yes

Images

Nexperia BZV55-C12,115 | RS

RS

Datasheets

 RS
 RS
 RS

Lifecycle Status Indicator

   Production

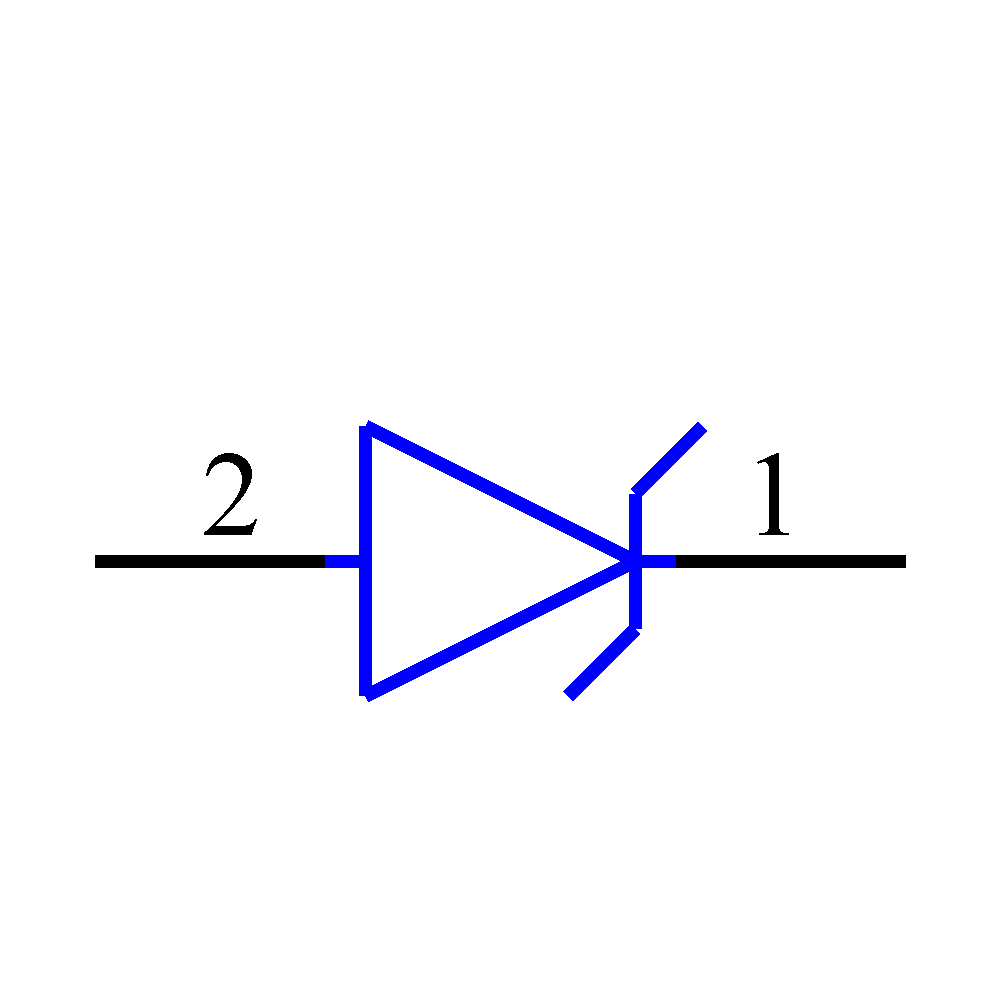

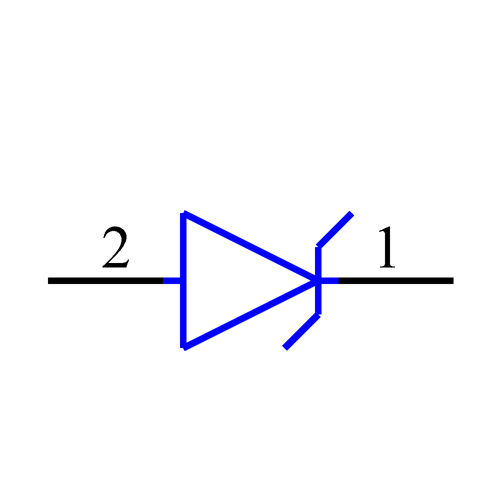

Symbol

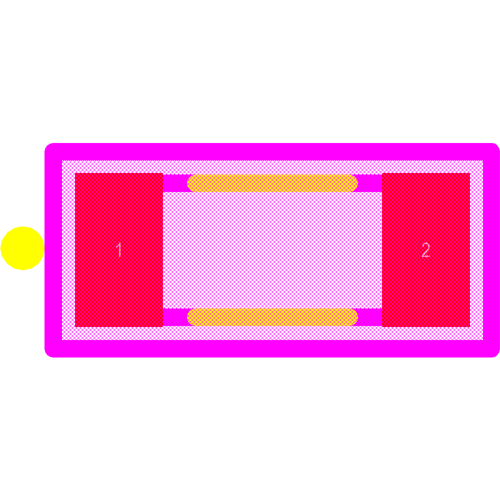

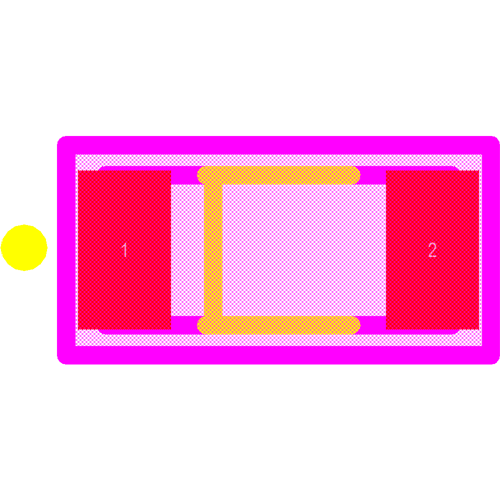

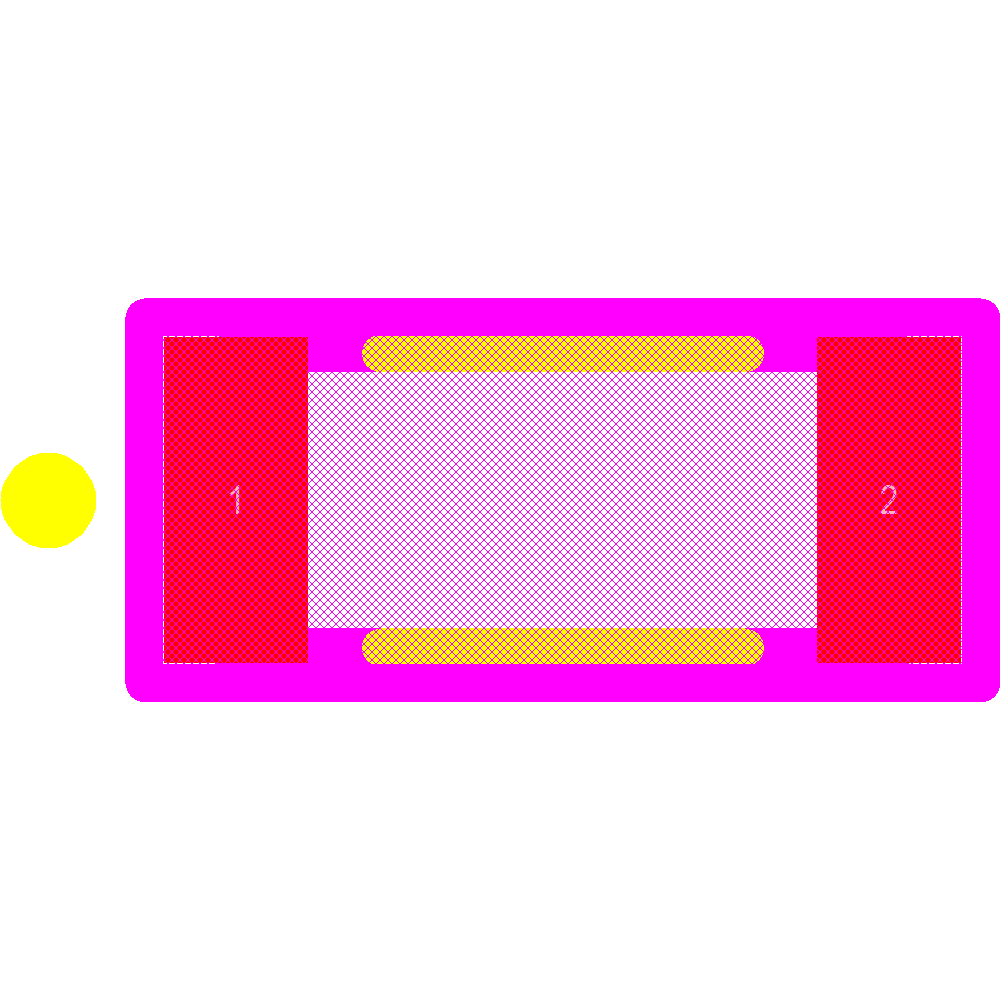

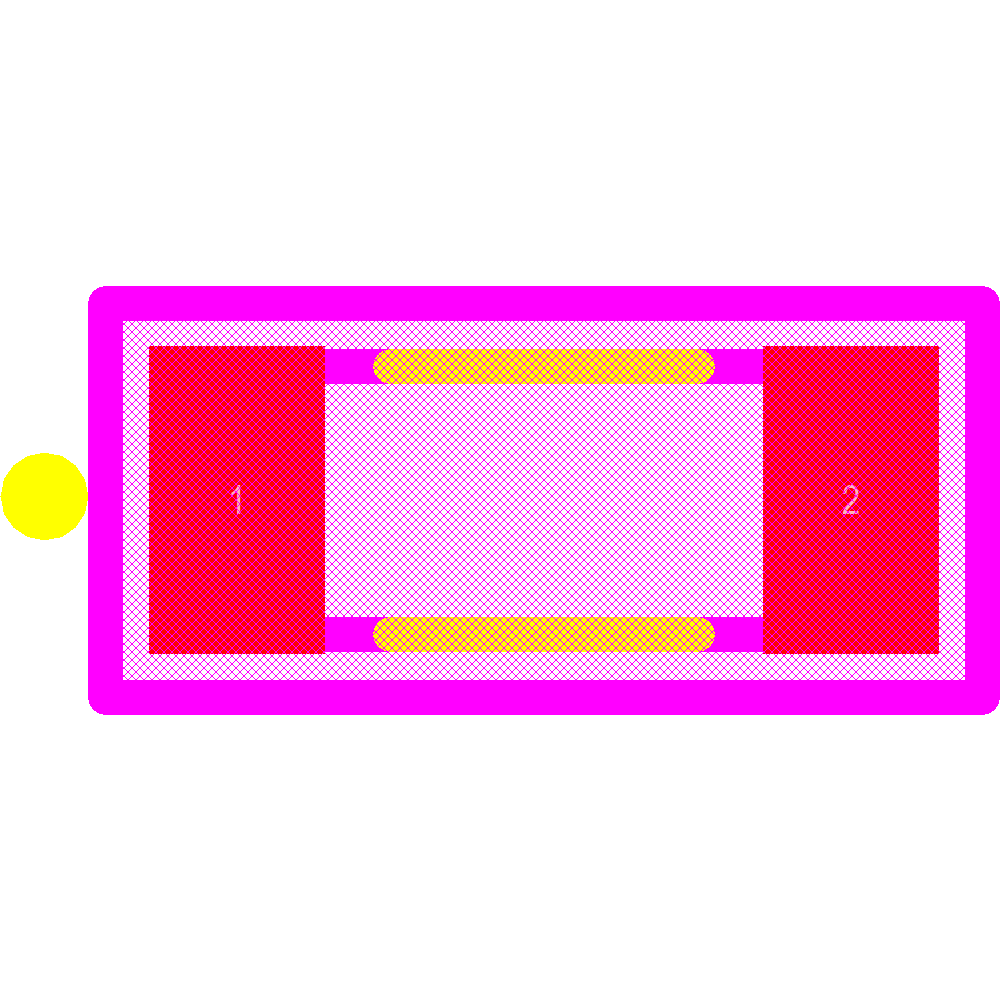

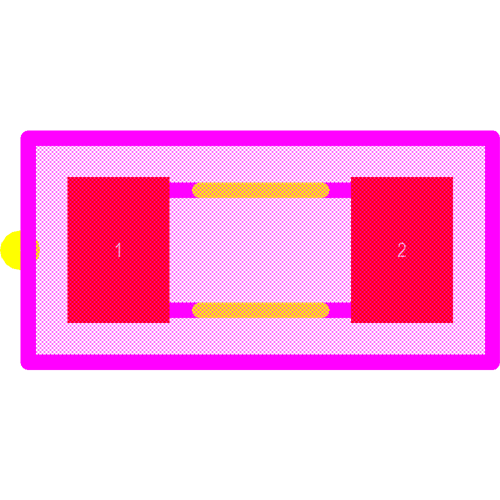

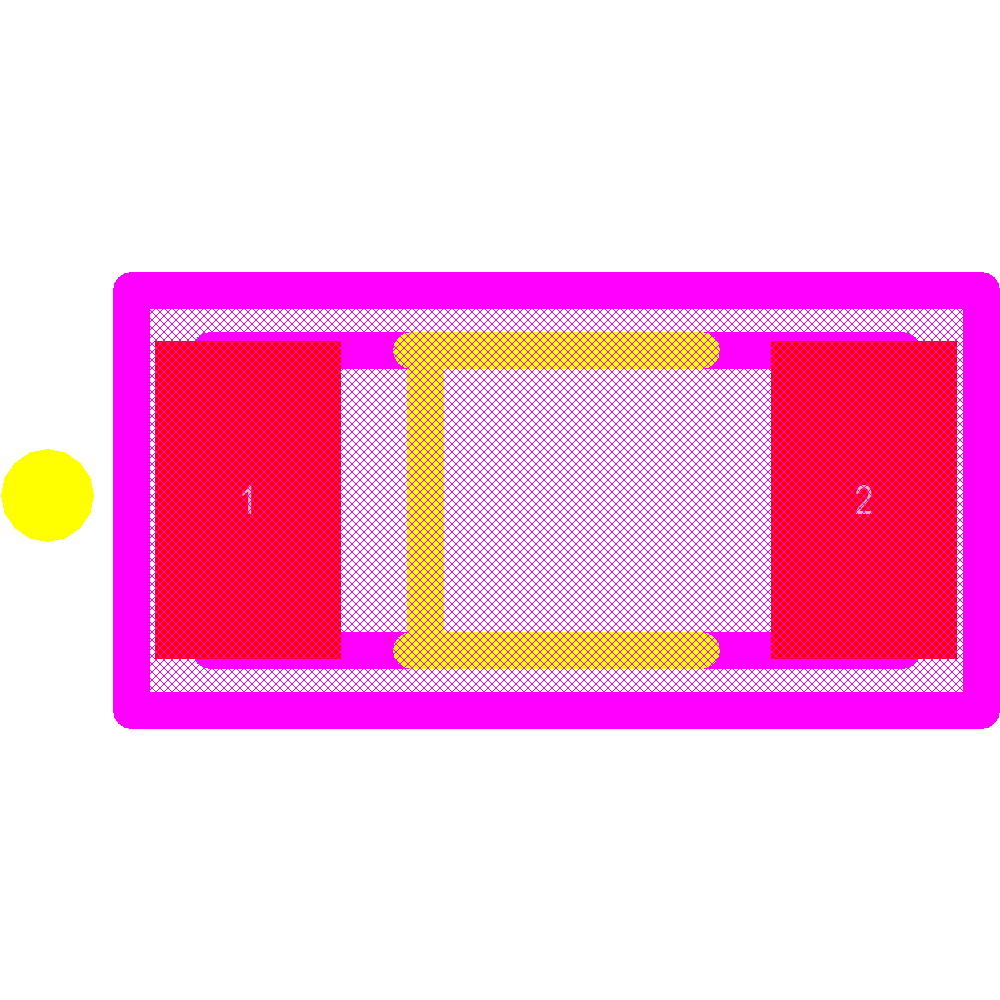

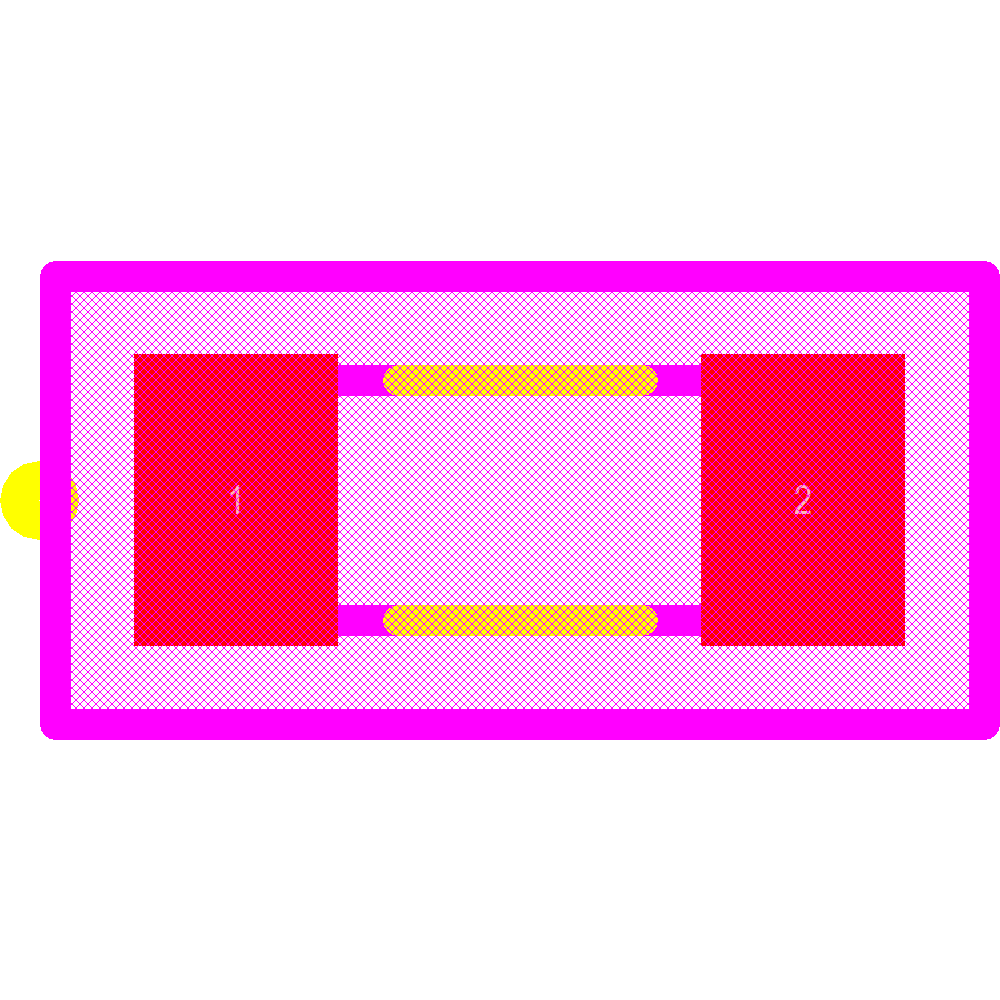

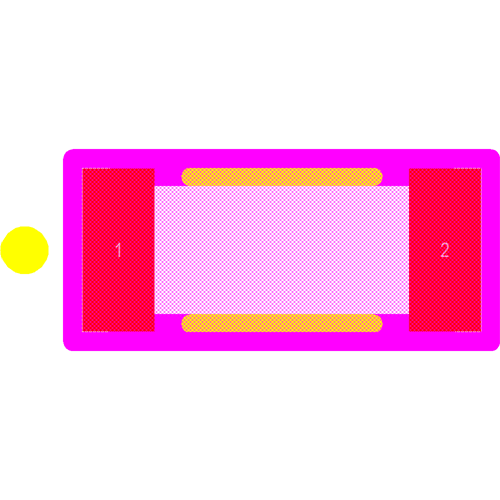

Footprint

Alternatives (Possible Substitutes)

Manufacturer Manufacturer Part No. Lifecycle Status Indicator Confidence
Nexperia
BZV55-C12,135
Production
Vishay
BZV55C12
Unknown
Multicomp
BZV55C12
Production
Nexperia
BZV55-C12
Production
MCC
BZV55C12-TP
Obsolete
onsemi
SZMMSZ5245BT1G
Production
onsemi
SZMMSZ5246BT1G
Production
onsemi
SZMMSZ5259BT1G
Production
Diodes Inc.
BZT52C12
Production
Vishay
BZT52C12-G3-08
Production

See more alternatives See less alternatives
