NUP1301,215 - Nexperia

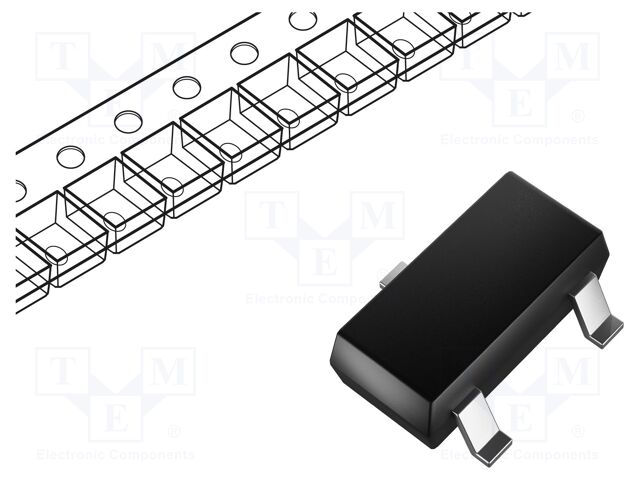

NEXPERIA - NUP1301, 215 - ESD Protection Device, TVS, 20 V, SOT-23, 3 Pins, 250 mW, NUP13 Series
Technical Details
| Breakdown Voltage | 100V |
| Capacitance | 750fF |
| Case/Package | SOT-23 |
| China RoHS | Compliant |
| Clamping Voltage | 20V |
| Contact Plating | Tin |
| Country of Origin | Mainland China |
| Depth | 1.4mm |
| Direction | Unidirectional |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Element Configuration | Single |
| Forward Voltage | 1.25V |
| Height | 6.35mm |
| Harmonized Tariff Schedule (HTS) Code | 8541.10.00.50 |
| Introduction Date | 2009-05-14 |
| Lead Free | Lead Free |
| Leakage Current | 100nA |
| Length | 3mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | RELEASED FOR SUPPLY |
| Max Breakdown Voltage | 100V |
| Max Operating Temperature | 150°C |
| Max Power Dissipation | 250mW |
| Min Breakdown Voltage | 100V |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Number of Bidirectional Channels | 1 |
| Number of Channels | 2 |
| Number of Elements | 2 |
| Number of Pins | 3 |
| Number of Terminals | 3 |
| Operating Supply Voltage | 1.25V |
| Peak Pulse Current | 11A |
| Peak Pulse Power | 220W |
| Peak Reverse Current | 35nA |
| Polarity | Unidirectional |
| Power Line Protection | No |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| Reverse Standoff Voltage | 80V |
| RoHS | Compliant |
| Schedule B | 8536300000|8536300000, 8541100080, 8541100080|8541100080|8541100080|8541100080|8541100080 |
| Termination | SMD/SMT |
| Weight | 4.535924g |
| Width | 6.35mm |
