PDTC114EU,135 - Nexperia
Bipolar Transistors - Pre-Biased Trans Digita BJT NPN 50V 100mA 3-Pin UMT
Technical Details
| Case/Package | SOT-323 |
| Collector Emitter Breakdown Voltage | 50V |
| Collector Emitter Voltage (VCEO) | 50V |
| Contact Plating | Tin |
| Current | 1A |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Element Configuration | Single |
| hFE Min | 30 |
| Introduction Date | 2004-08-06 |
| Lead Free | Lead Free |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | RELEASED FOR SUPPLY |
| Max Collector Current | 100mA |
| Max Operating Temperature | 150°C |
| Max Power Dissipation | 200mW |
| Min Operating Temperature | -65°C |
| Mount | Surface Mount |
| Number of Elements | 1 |
| Number of Pins | 3 |
| Number of Terminals | 3 |
| Packaging | Tape & Reel (TR) |
| Polarity | NPN |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Schedule B | 8541210080, 8541210080|8541210080|8541210080|8541210080|8541210080 |
| Transition Frequency | 230MHz |
| Voltage | 50V |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes

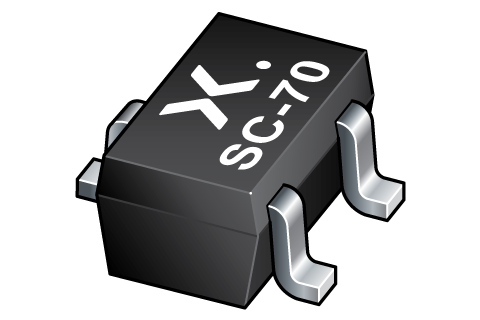

Images
