PESD15VU1UT,215 - Nexperia

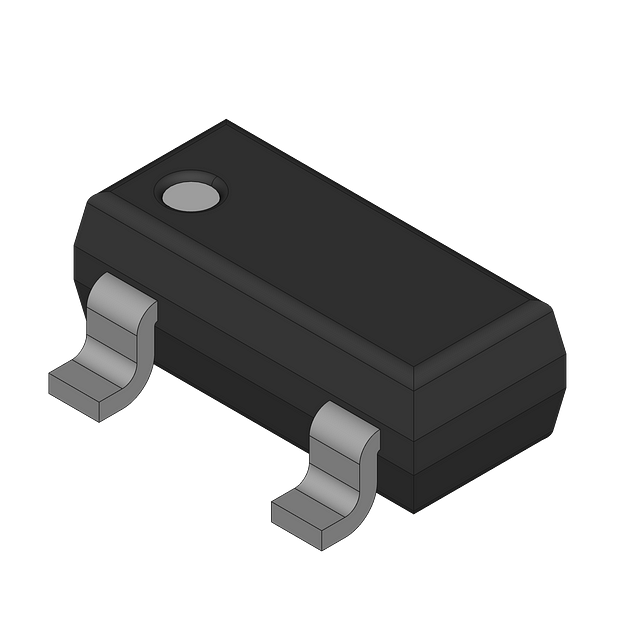

PESDxU1UT Series 20.3 V 1.5 pF Ultra Low Capacitance ESD Protection Diode-SOT-23
Technical Details
| Breakdown Voltage | 18.7V |
| Capacitance | 1.5pF |
| Case/Package | TO-236-3 |
| China RoHS | Compliant |
| Clamping Voltage | 53V |
| Composition | Zener |
| Contact Plating | Tin |
| Country of Origin | Mainland China |
| Depth | 1.4mm |
| Direction | Unidirectional |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Element Configuration | Single |
| ESD Protection | Yes |
| Height | 1mm |
| Harmonized Tariff Schedule (HTS) Code | 8541.10.00.50 |
| Introduction Date | 2009-09-04 |
| Lead Free | Lead Free |
| Leakage Current | 50nA |
| Length | 3mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | RELEASED FOR SUPPLY |
| Max Breakdown Voltage | 20.3V |
| Max Operating Temperature | 150°C |
| Max Power Dissipation | 200W |
| Max Reverse Leakage Current | 50nA |
| Max Surge Current | 5A |
| Min Breakdown Voltage | 17.1V |
| Min Operating Temperature | -65°C |
| Mount | Surface Mount |
| Number of Channels | 2 |
| Number of Elements | 1 |
| Number of Pins | 3 |
| Number of Terminals | 3 |
| Number of Unidirectional Channels | 1 |
| Operating Supply Voltage | 15V |
| Peak Pulse Current | 5A |
| Peak Pulse Power | 200W |
| Peak Reverse Current | 50nA |
| Polarity | Unidirectional |
| Power Line Protection | No |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| Reverse Standoff Voltage | 15V |
| RoHS | Compliant |
| Termination | SMD/SMT |
| Test Current | 5mA |
| Width | 1.4mm |
| Working Voltage | 15V |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes
