PESD24VF1BLYL - Nexperia
NEXPERIA - PESD24VF1BLYL - ESD Protection Device, 17 V, DFN1006, 2 Pins, 24 V, PESD2 Series
Technical Details
| Ambient Temperature Range High | 150°C |
| Breakdown Voltage | 28V |
| Capacitance | 300fF |
| Case/Package | DFN |
| China RoHS | Compliant |
| Clamping Voltage | 17V |
| Composition | Zener |
| Contact Plating | Tin |
| Country of Origin | Mainland China |
| Direction | Bidirectional |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Element Configuration | Single |
| Height | 500µm |
| Harmonized Tariff Schedule (HTS) Code | 8541.10.00.50 |
| Introduction Date | 2017-03-31 |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | RELEASED FOR SUPPLY |
| Max Breakdown Voltage | 31.5V |
| Max Junction Temperature (Tj) | 150°C |
| Max Operating Temperature | 150°C |
| Min Breakdown Voltage | 24.5V |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Number of Bidirectional Channels | 1 |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Number of Pins | 2 |
| Number of Terminals | 2 |
| Operating Supply Voltage | 24V |
| Packaging | Tape & Reel (TR) |
| Peak Pulse Current | 1A |
| Peak Reverse Current | 30nA |
| Polarity | Bidirectional |
| Power Line Protection | No |
| REACH SVHC | Yes |
| Reverse Standoff Voltage | 24V |
| RoHS | Compliant |
| Schedule B | 8536300000, 8536300000|8536300000|8536300000|8536300000|8536300000 |
| Working Voltage | 24V |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes
Images

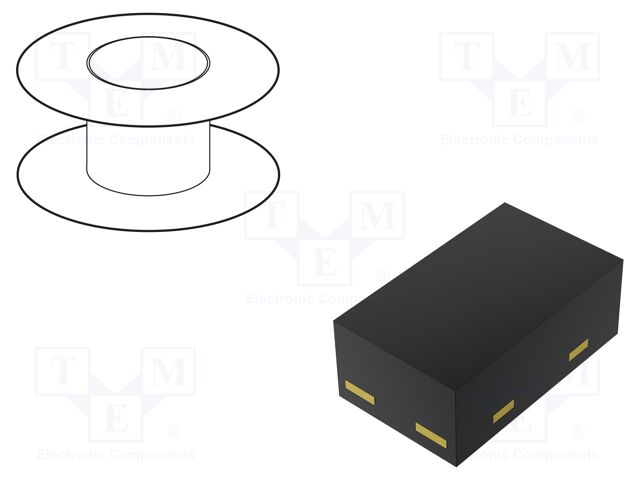

TME
