Technical Details
| Breakdown Voltage | 5.6V |
| Capacitance | 3.1pF |
| Case/Package | DFN |
| China RoHS | Compliant |
| Composition | Zener |
| Contact Plating | Tin |
| Country of Origin | Mainland China |
| Depth | 620µm |
| Direction | Unidirectional |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Element Configuration | Single |
| Harmonized Tariff Schedule (HTS) Code | 8541.10.00.50 |
| Introduction Date | 2008-10-31 |
| Lead Free | Lead Free |
| Leakage Current | 100nA |
| Length | 1.02mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | RELEASED FOR SUPPLY |
| Max Breakdown Voltage | 6.8V |
| Max Operating Temperature | 150°C |
| Min Breakdown Voltage | 4.5V |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Number of Pins | 2 |
| Number of Terminals | 2 |
| Number of Unidirectional Channels | 1 |
| Operating Supply Voltage | 3.3V |
| Peak Reverse Current | 100nA |
| Polarity | Unidirectional |
| Power Line Protection | No |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| Reverse Standoff Voltage | 3V |
| RoHS | Compliant |
| Schedule B | 8536300000|8536300000, 8541100050, 8541100050|8541100050|8541100050|8541100050|8541100050 |
| Termination | SMD/SMT |
| Working Voltage | 3.3V |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes

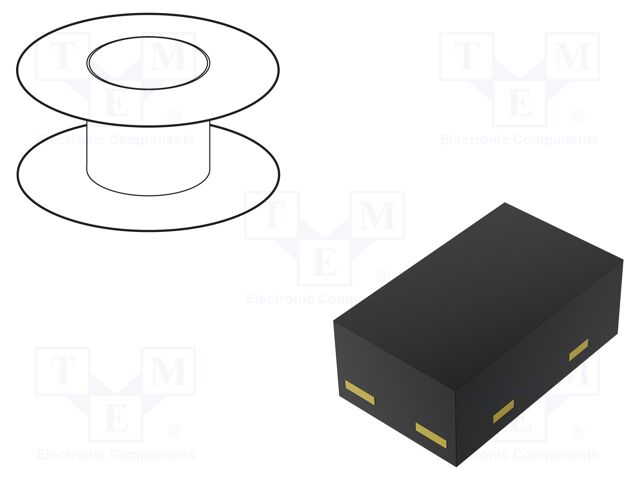

Images
