PESD3V3U1UT,215 - Nexperia
PESD Series 20 V 0.6 pF Ultra Low Capacitance ESD Protection Diode - SOT-23
Technical Details
| Breakdown Voltage | 6.35V |
| Capacitance | 1.5pF |
| Case/Package | SOT-23 |
| China RoHS | Compliant |
| Clamping Voltage | 20V |
| Composition | Zener |
| Contact Plating | Tin |
| Depth | 1.4mm |
| Direction | Unidirectional |
| Element Configuration | Single |
| ESD Protection | Yes |
| Height | 1mm |
| Lead Free | Lead Free |
| Leakage Current | 2µA |
| Length | 3mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | RELEASED FOR SUPPLY |
| Max Breakdown Voltage | 6.9V |
| Max Operating Temperature | 150°C |
| Max Power Dissipation | 80W |
| Max Reverse Leakage Current | 2µA |
| Max Surge Current | 5A |
| Min Breakdown Voltage | 5.8V |
| Min Operating Temperature | -65°C |
| Mount | Surface Mount |
| Number of Channels | 2 |
| Number of Elements | 1 |
| Number of Pins | 3 |
| Number of Terminals | 3 |
| Number of Unidirectional Channels | 1 |
| Operating Supply Voltage | 3.3V |
| Peak Pulse Current | 5A |
| Peak Pulse Power | 80W |
| Peak Reverse Current | 2µA |
| Polarity | Unidirectional |
| Power Line Protection | No |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| Reverse Breakdown Voltage | 5.8V |
| Reverse Standoff Voltage | 3.3V |
| RoHS | Compliant |
| Schedule B | 8536300000, 8541100050, 8541100050|8541100050|8541100050|8541100050|8541100050 |
| Termination | SMD/SMT |
| Test Current | 5mA |
| Width | 1.4mm |
| Working Voltage | 3.3V |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes

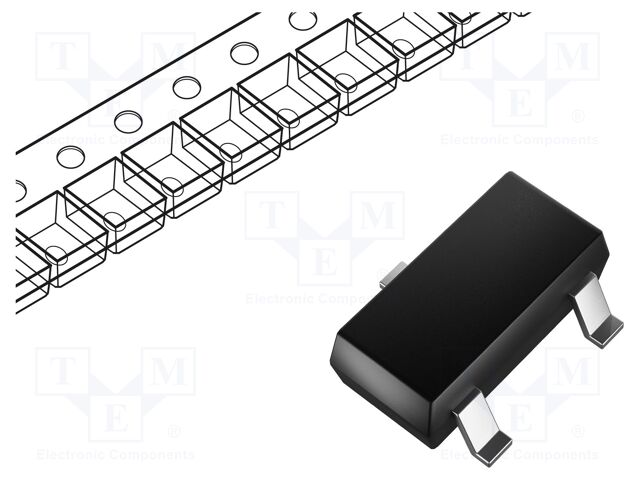

Images
