PESD5V0F1BRSFYL - Nexperia
Bi-Directional 28 W 5 V 0.25 pF Surface Mount ESD Protection Diode - SOD-962
Technical Details
| Breakdown Voltage | 8V |
| Capacitance | 250fF |
| Case/Package | DFN |
| China RoHS | Compliant |
| Clamping Voltage | 12.8V |
| Composition | Zener |
| Depth | 330µm |
| Direction | Bidirectional |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Element Configuration | Single |
| Harmonized Tariff Schedule (HTS) Code | 8541.10.00.50 |
| Introduction Date | 2013-02-13 |
| Leakage Current | 100nA |
| Length | 630µm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | RELEASED FOR SUPPLY |
| Max Breakdown Voltage | 10V |
| Max Operating Temperature | 150°C |
| Max Surge Current | 2.2A |
| Min Breakdown Voltage | 6V |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Number of Bidirectional Channels | 1 |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Number of Pins | 2 |
| Number of Terminals | 2 |
| Operating Supply Voltage | 5V |
| Peak Pulse Current | 2.2A |
| Peak Pulse Power | 28W |
| Peak Reverse Current | 100nA |
| Polarity | Bidirectional |
| Power Line Protection | No |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| Reverse Standoff Voltage | 5V |
| RoHS | Compliant |
| Schedule B | 8536300000, 8536300000|8536300000|8536300000|8536300000|8536300000 |
| Termination | SMD/SMT |
| Working Voltage | 5V |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes

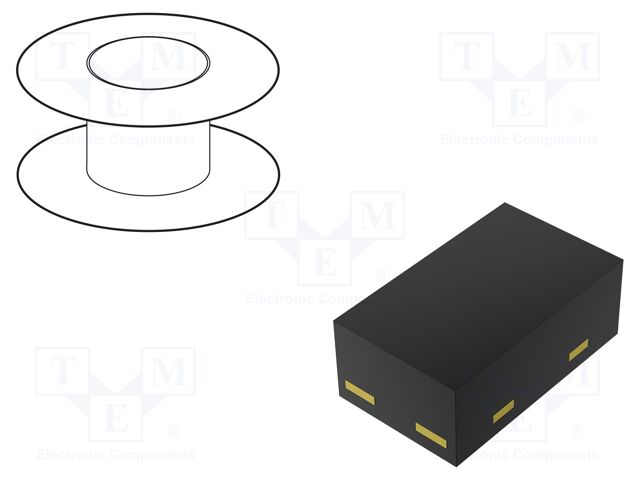

Images
