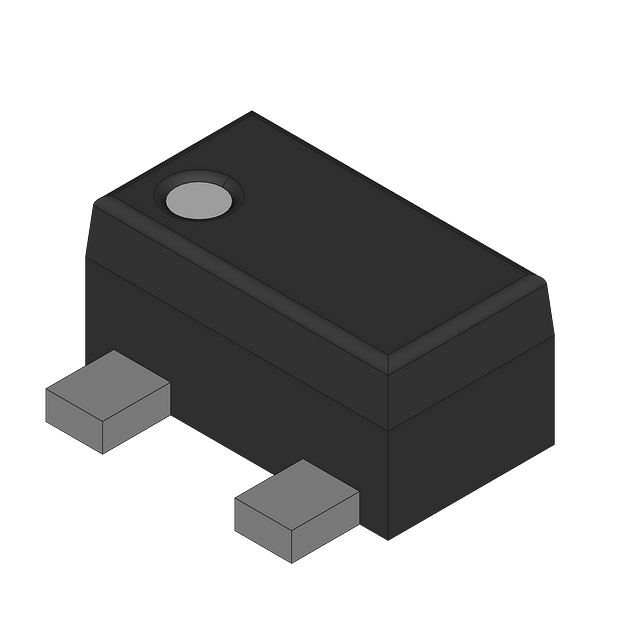

PESD5V0X1BQ,115 - Nexperia
PESD5V0X1BQ Series 5 V 0.9 pF Bi-Directional ESD Protection Diode - SOT-663
Technical Details
| Breakdown Voltage | 7.5V |
| Capacitance | 2.6pF |
| Case/Package | SOT-663 |
| China RoHS | Compliant |
| Composition | Zener |
| Contact Plating | Tin |
| Country of Origin | Malaysia |
| Depth | 1.3mm |
| Direction | Bidirectional |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Harmonized Tariff Schedule (HTS) Code | 8541.10.00.50 |
| Introduction Date | 2008-10-31 |
| Lead Free | Lead Free |
| Leakage Current | 100nA |
| Length | 1.7mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | RELEASED FOR SUPPLY |
| Max Breakdown Voltage | 9.5V |
| Max Operating Temperature | 150°C |
| Min Breakdown Voltage | 5.8V |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Number of Bidirectional Channels | 1 |
| Number of Channels | 2 |
| Number of Elements | 1 |
| Number of Pins | 3 |
| Number of Terminals | 3 |
| Number of Unidirectional Channels | 2 |
| Operating Supply Voltage | 5V |
| Packaging | Tape and Reel |
| Peak Reverse Current | 100nA |
| Polarity | Bidirectional, Unidirectional |
| Power Line Protection | No |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| Reverse Standoff Voltage | 5V |
| RoHS | Compliant |
| Termination | SMD/SMT |
| Working Voltage | 5V |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes
