NRSN06I4J220TRF - NIC Components
Res Thick Film Array 22 Ohm 5% ±200ppm/C ISOL Molded 8-Pin 1206(4 X 0603) Concave SMD T/R
Technical Details
| Case/Package | 1206 |
| China RoHS | Non-Compliant |
| Country of Origin | Japan, Mainland China, Taiwan |
| Depth | 1.6mm |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Height | 550µm |
| Harmonized Tariff Schedule (HTS) Code | 8533.21.00.20 |
| Introduction Date | 2006-08-07 |
| Length | 3.2mm |
| Lifecycle Status | Production |
| Max Operating Temperature | 125°C |
| Military Standard | Not |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Number of Circuits | 4 |
| Number of Elements | 1 |
| Number of Pins | 8 |
| Number of Resistors | 4 |
| Number of Terminals | 8 |
| Power Rating | 60mW |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| Resistance | 22Ω |
| RoHS | Compliant |
| Temperature Coefficient | 200ppm/°C |
| Terminal Pitch | 800µm |
| Termination | Concave |
| Tolerance | 5% |
| Width | 1.6mm |
| Working Voltage | 50V |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes

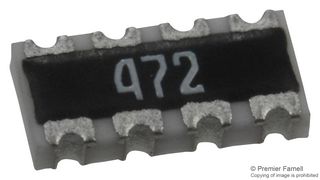

Images
Newark
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Cal-Chip Electronics | Production | ||
| Yageo Group | Production | ||
| Yageo Group | Production | ||
| Yageo Group | Obsolete | ||
| Yageo Group | Obsolete | ||
| Yageo Group | Obsolete | ||
| Yageo Group | Unknown | ||
| NIC Components | Obsolete | ||
| Yageo Group | Production | ||
| Yageo Group | Production |
Authorized Distributors
| Distributor | SKU | Stock | USD | 1 | 10 | 50 | 100 | 1000 | 10000 | Buy |
|---|---|---|---|---|---|---|---|---|---|---|
| Avnet |
US: 95000
|
$ | 0.0084 | |||||||
| Future Electronics |
CA: 25000
|
$ | 0.008 | |||||||
| Arrow Electronics |
US: 0
|
$ | 0.009 | |||||||
