Electromechanical  >  Switches  >  Slide Switches

Nidec Copal - CL-SB-22A-01T

CL-SB-22A-01T - Nidec Copal

Slide Switch, 2 Positions, DPDT, Latched, 0.2A, 12VDC, Solder Terminal, Surface Mount-straight

 Datasheets

Technical Details

Actuator Length 2.0066mm
Actuator Material Polyamide
Contact Current Rating 200mA
Contact Plating Gold
Contact Resistance 70mΩ
Contact Style Non-Shorting
Current Rating 200mA
Electrical Life 10kcycles
Height 3.5mm
Insulation Resistance 100MΩ
Lead Free Lead Free
Length 8.5mm
Life (Cycles) 10kcycles
Lifecycle Status Production
Max Current Rating 200mA
Max Operating Temperature 85°C
Max Voltage Rating (DC) 12V
Min Operating Temperature -40°C
Mount Surface Mount
Number of Positions 2
Operating Force 2.5N
Orientation Vertical
Packaging Tape & Reel (TR)
REACH SVHC Yes
RoHS Compliant
Switch Function On-On
Switch Travel 2mm
Throw Configuration DPDT
Voltage Rating (DC) 12V

Compliance

   RoHS : Unconfirmed
   REACH SVHC : Yes

Images

Nidec Copal CL-SB-22A-01T | TME

TME

Datasheets

 TME
 Farnell
 Mouser

Lifecycle Status Indicator

   Production

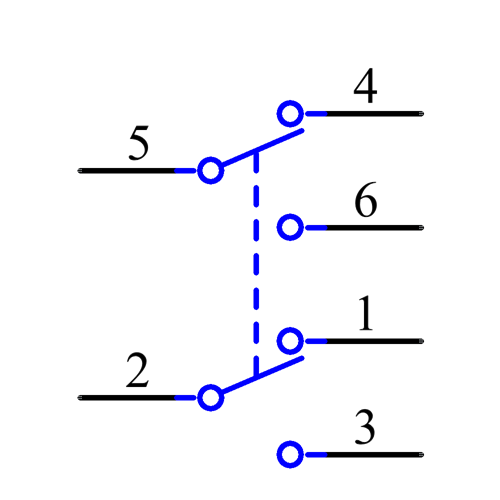

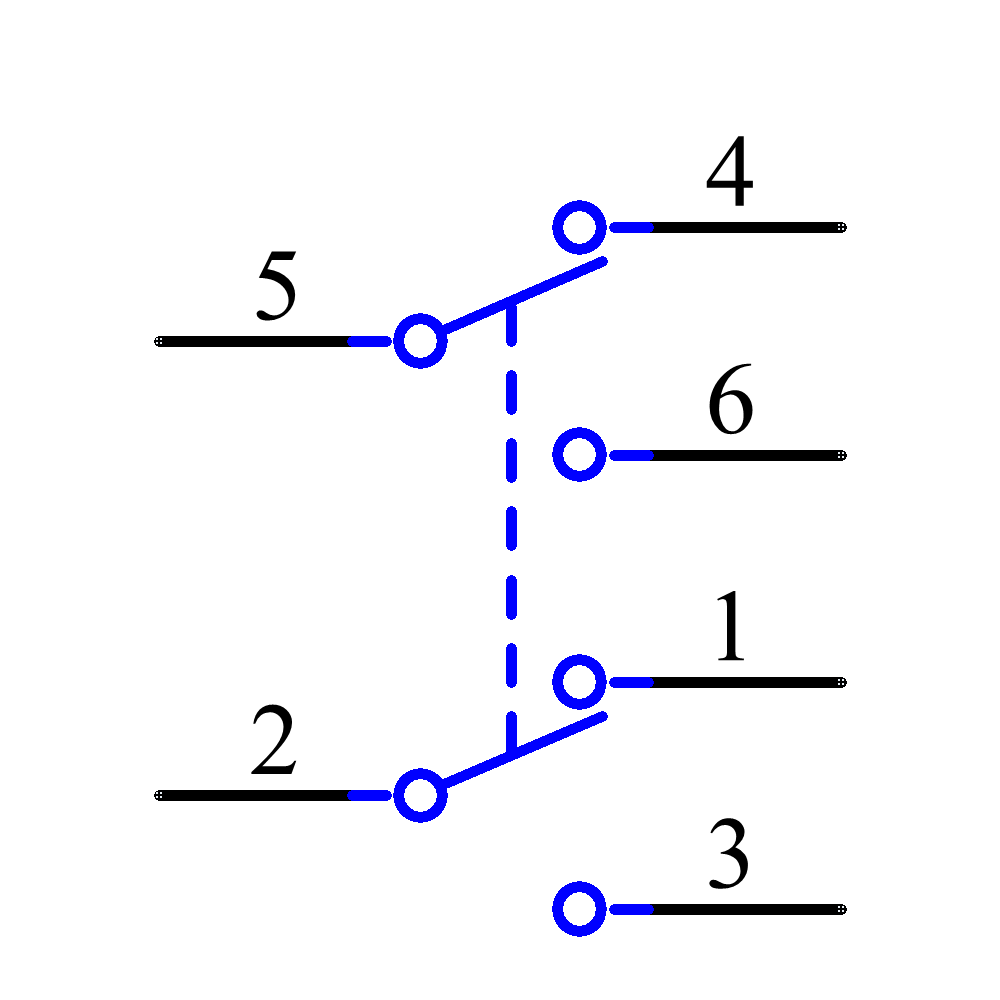

Symbol

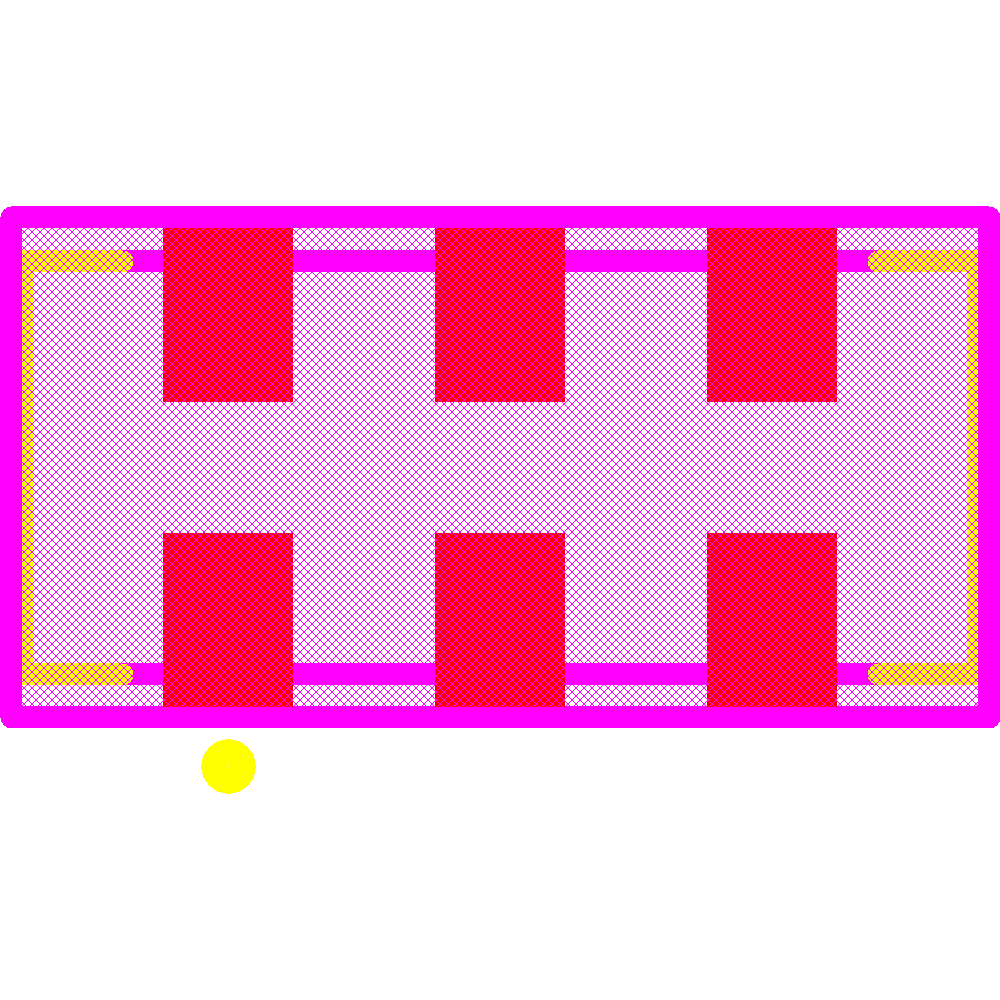

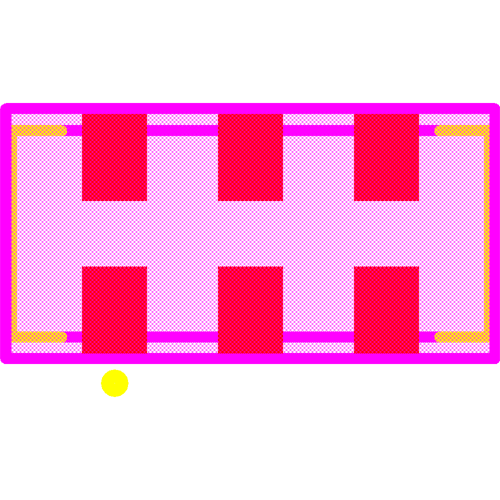

Footprint
