CUS-13TB - Nidec Copal
Switch Slide SP3T Side Slide 0.3A 20VDC Gull Wing SMD Embossed T/R
Technical Details
| Actuator Length | 1.5mm |
| Actuator Material | Nylon, Polyamide |
| Contact Current Rating | 100mA |
| Contact Plating | Gold |
| Contact Resistance | 70mΩ |
| Contact Style | Non-Shorting |
| Current Rating | 300mA |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Electrical Life | 10kcycles |
| Height | 1.4mm |
| Harmonized Tariff Schedule (HTS) Code | 8536.50.90.50 |
| Introduction Date | 2009-10-27 |
| Length | 9.7mm |
| Life (Cycles) | 10kcycles |
| Lifecycle Status | Production |
| Max Current Rating | 300mA |
| Max Operating Temperature | 70°C |
| Max Voltage Rating (DC) | 4V |
| Min Operating Temperature | -20°C |
| Mount | Surface Mount |
| Number of Positions | 3 |
| Operating Force | 3.7N |
| Orientation | Right Angle |
| Packaging | Tape & Reel (TR) |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Sealable | MOISTURE PROOF |
| Switch Function | On-On-On |
| Switch Travel | 1.5mm |
| Termination | Gull Wing |
| Throw Configuration | SP3T |
| Voltage Rating (DC) | 4V |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes

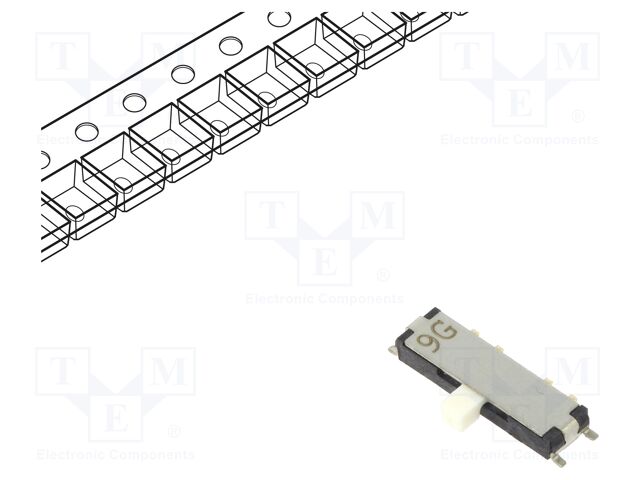

Images
