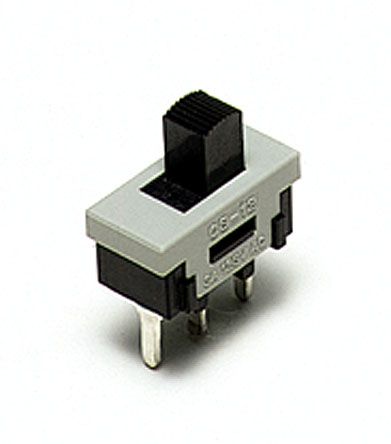

CS12ANW03 - NKK Switches
Switch Slide ON None ON SPDT Top Slide 3A 250VAC 50000Cycles PC Pins Thru-Hole
Technical Details
| Actuator Length | 5.1054mm |
| Actuator Material | Glass, Glass fibre, Nylon, Polyamide |
| China RoHS | Compliant |
| Contact Current Rating | 3A |
| Contact Material | Copper |
| Contact Plating | Silver |
| Contact Resistance | 10mΩ |
| Contact Style | Non-Shorting |
| Contact Voltage Rating (AC) | 125V |
| Current Rating | 3A |
| Depth | 7.5mm |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Electrical Life | 20kcycles |
| Flammability Rating | UL94 V-0 |
| Height | 6.4mm |
| Harmonized Tariff Schedule (HTS) Code | 8536.50.90.50 |
| Illumination Type | Non-Illuminated |
| Insulation Resistance | 1GΩ |
| Introduction Date | 2010-05-04 |
| Lead Free | Lead Free |
| Length | 14mm |
| Life (Cycles) | 20kcycles |
| Lifecycle Status | Production |
| Max Current Rating | 3A |
| Max Operating Temperature | 85°C |
| Max Voltage Rating (AC) | 250V |
| Mechanical Life | 50kcycles |
| Min Operating Temperature | -30°C |
| Mount | Through Hole |
| Number of Positions | 2 |
| Orientation | Vertical |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Sealable | EPOXY TERMINAL SEALED |
| Switch Function | On-On |
| Switch Travel | 2.2mm |
| Terminal Material | Copper |
| Termination | PC Pins |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 125V |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes
