Technical Details
| Actuator Length | 3.302mm |
| Contact Current Rating | 400mA |
| Contact Plating | Gold |
| Contact Resistance | 80mΩ |
| Electrical Life | 50kcycles |
| Flammability Rating | UL94 V-0 |
| Height | 7.493mm |
| Housing Material | Polyphenylene |
| Insulation Resistance | 500MΩ |
| Length | 10.9982mm |
| Life (Cycles) | 50kcycles |
| Lifecycle Status | Production |
| Max Operating Temperature | 85°C |
| Mechanical Life | 50kcycles |
| Min Operating Temperature | -30°C |
| Mount | Surface Mount |
| Number of Positions | 2 |
| Operating Force | 2N |
| Orientation | Vertical |
| Power Rating | 400mW |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Sealable | EPOXY |
| Switch Function | On-Mom |
| Termination | Gull Wing |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 28V |
| Voltage Rating (DC) | 28V |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes

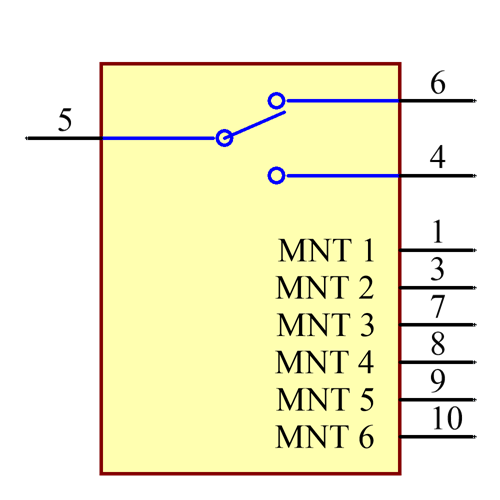

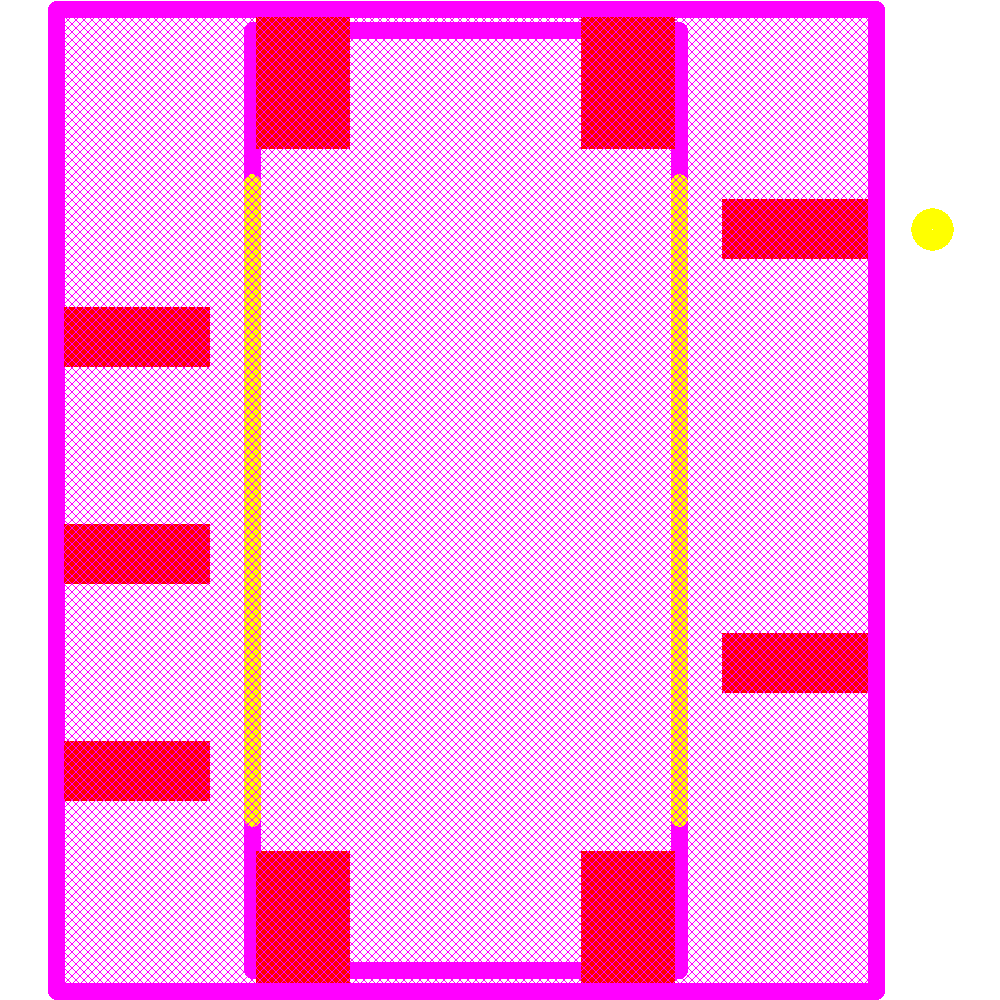

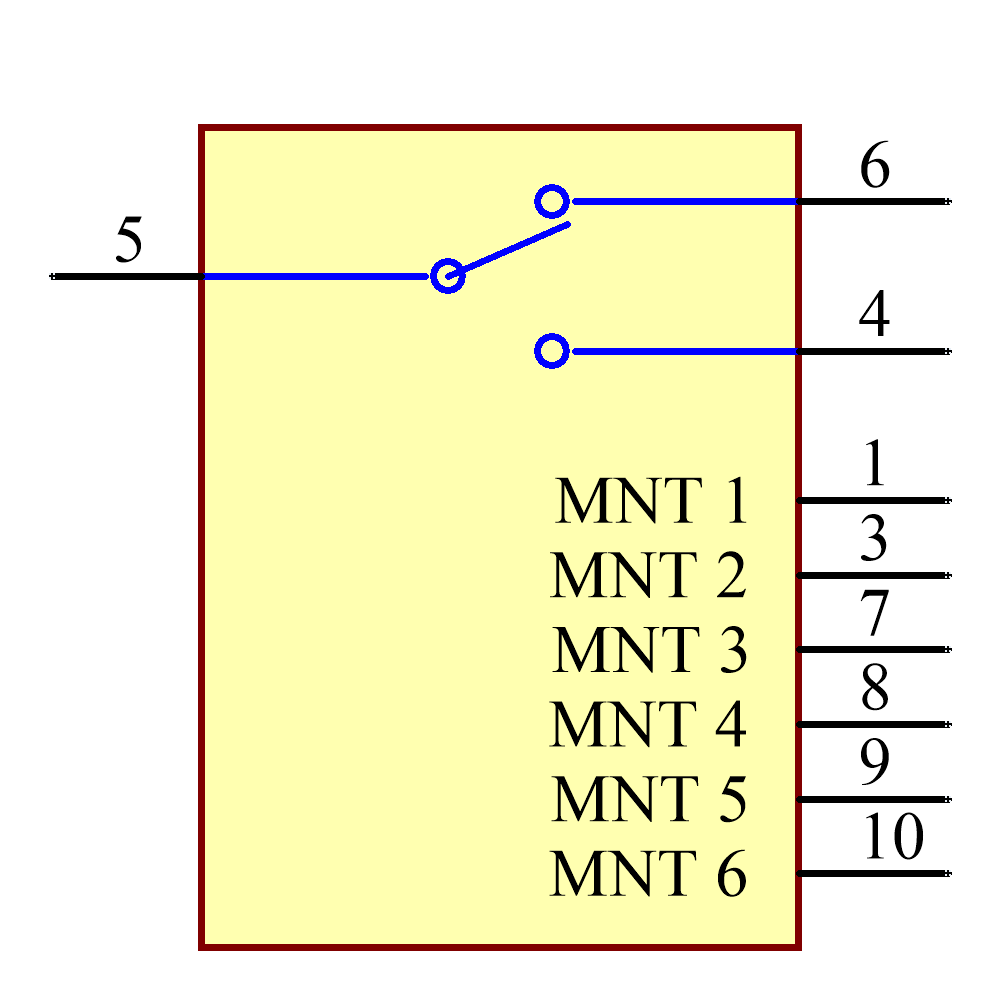

Images
