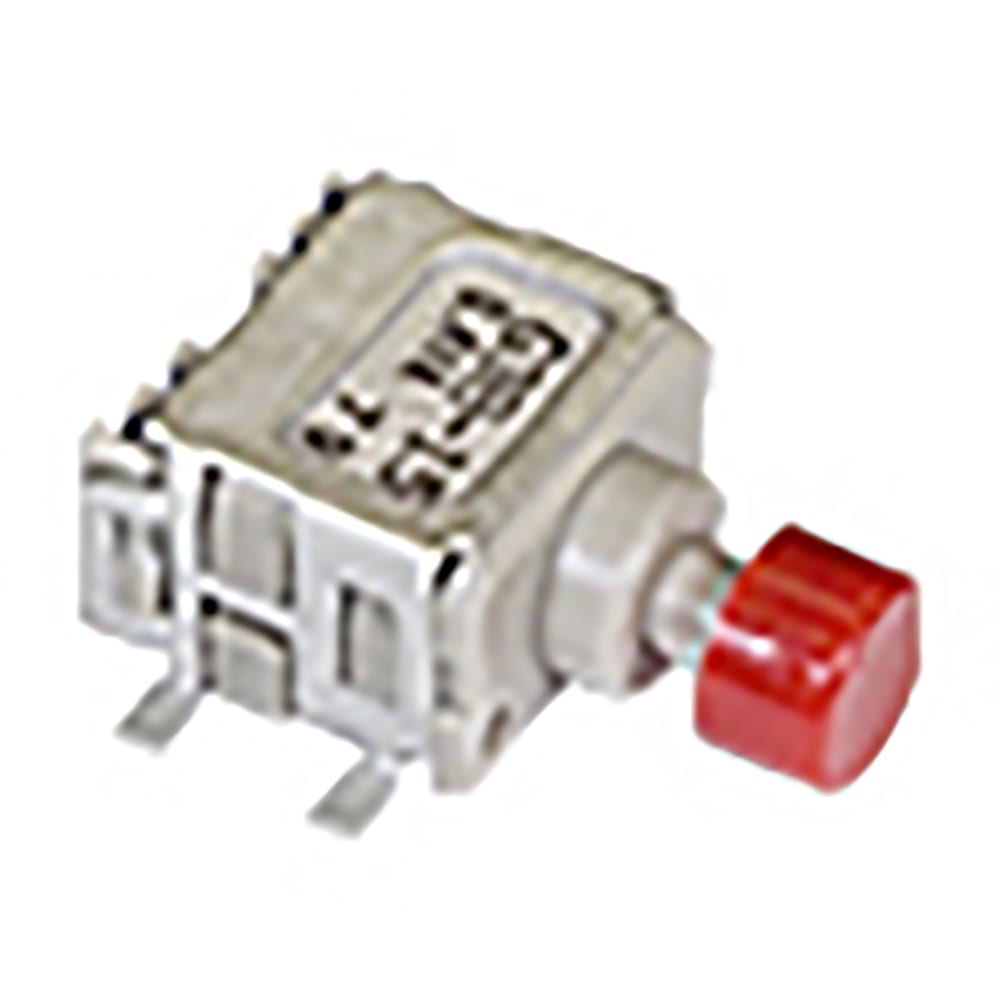

G3B15AB-S-YA - NKK Switches
Special Switch, SPDT, On-(on), Momentary, Solder Terminal, Surface Mount-straight
Technical Details
| Actuator Length | 3.302mm |
| Actuator Material | Polyphenylene |
| Contact Material | Bronze |
| Contact Plating | Gold |
| Contact Resistance | 80mΩ |
| Country of Origin | Mainland China |
| Depth | 7.6mm |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Electrical Life | 50kcycles |
| Flammability Rating | UL94 V-0 |
| Height | 7.493mm |
| Housing Material | Polyphenylene |
| Harmonized Tariff Schedule (HTS) Code | 8536.50.70.00 |
| Insulation Resistance | 500MΩ |
| Introduction Date | 2012-01-05 |
| Lead Free | Lead Free |
| Length | 10.9982mm |
| Lifecycle Status | Production |
| Max Current Rating | 100mA |
| Max Operating Temperature | 85°C |
| Max Voltage Rating (AC) | 28V |
| Max Voltage Rating (DC) | 28V |
| Mechanical Life | 50kcycles |
| Min Operating Temperature | -30°C |
| Mount | Surface Mount |
| Power Rating | 400mW |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Schedule B | 8536509030 |
| Sealable | EPOXY |
| Switch Function | On-Mom |
| Termination | Gull Wing |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 28V |
| Voltage Rating (DC) | 28V |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes
