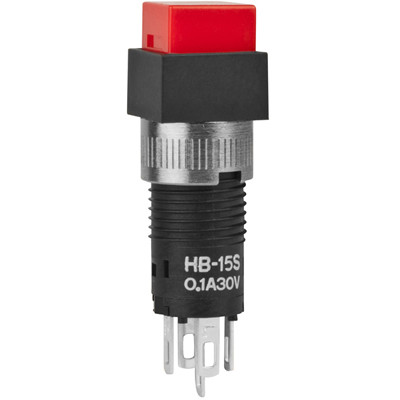

HB15SKW01-C - NKK Switches
Switch, Sub-mini P/b, SPDT, On-(on), Square, No Led, Red Cap, 0.1A, 30VAC/DC, Solder
Technical Details
| Actuator Length | 3.5052mm |
| Color | Black |
| Contact Current Rating | 100mA |
| Contact Material | Bronze |
| Contact Plating | Silver |
| Contact Resistance | 50mΩ |
| Contact Voltage Rating (AC) | 30V |
| Current Rating | 100mA |
| Depth | 9mm |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Electrical Life | 50kcycles |
| Height | 31.3182mm |
| Housing Material | Polyamide |
| Harmonized Tariff Schedule (HTS) Code | 8536.50.90.31 |
| Insulation Resistance | 100MΩ |
| Introduction Date | 1999-01-01 |
| Length | 8.9916mm |
| Lifecycle Status | Production |
| Max Current Rating | 100mA |
| Max Operating Temperature | 70°C |
| Max Voltage Rating (AC) | 30V |
| Max Voltage Rating (DC) | 30V |
| Mechanical Life | 100kcycles |
| Min Operating Temperature | -25°C |
| Mount | Front, Panel |
| Power Rating | 100mW |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Sealable | EPOXY |
| Switch Function | On-Mom |
| Termination | Solder |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 30V |
| Voltage Rating (DC) | 30V |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes
