NKK Switches - JB15KP-1A

JB15KP-1A - NKK Switches

Switch Tactile OFF (ON) SPST Square Button PC Pins 0.05A 24VDC 5000000Cycles 1.76N Thru-Hole

 Datasheets

Technical Details

Actuator Length 7.2898mm
Actuator Material Polyacetal
China RoHS Compliant
Contact Current Rating 50mA
Contact Material Brass, Stainless Steel
Contact Plating Silver
Contact Resistance 50mΩ
Current Rating 125mA
Depth 12mm
Export Control Classification Number (ECCN) Code EAR99
Electrical Life 5Mcycles
Height 4.191mm
Harmonized Tariff Schedule (HTS) Code 8536.50.90.40
Illumination Type Illuminated, Non-Illuminated
Insulation Resistance 500MΩ
Introduction Date 1999-01-01
Lead Free Lead Free
Length 10.0076mm
Life (Cycles) 5Mcycles
Lifecycle Status Production
Max Current Rating 50mA
Max Operating Temperature 70°C
Max Voltage Rating (DC) 24V
Mechanical Life 5Mcycles
Min Operating Temperature -25°C
Mount Through Hole
Number of Pins 4
Number of Positions 1
Operating Force 1.76N
Orientation Straight
Packaging Box
Ratings Dust Tight, IP67, Waterproof
REACH SVHC Yes
RoHS Compliant
Sealable ENVIRONMENTALLY SEALED
Switch Function Off-Mom
Switch Travel 250µm
Terminal Material Brass
Termination PC Pins
Throw Configuration SPST
Voltage Rating (DC) 24V

Compliance

   RoHS : Unconfirmed
   REACH SVHC : Yes

Images

NKK Switches JB15KP-1A | Future Electronics

Future Electronics

Datasheets

 Powell Electronics
 DigiKey
 Mouser

Lifecycle Status Indicator

   Production
Symbol

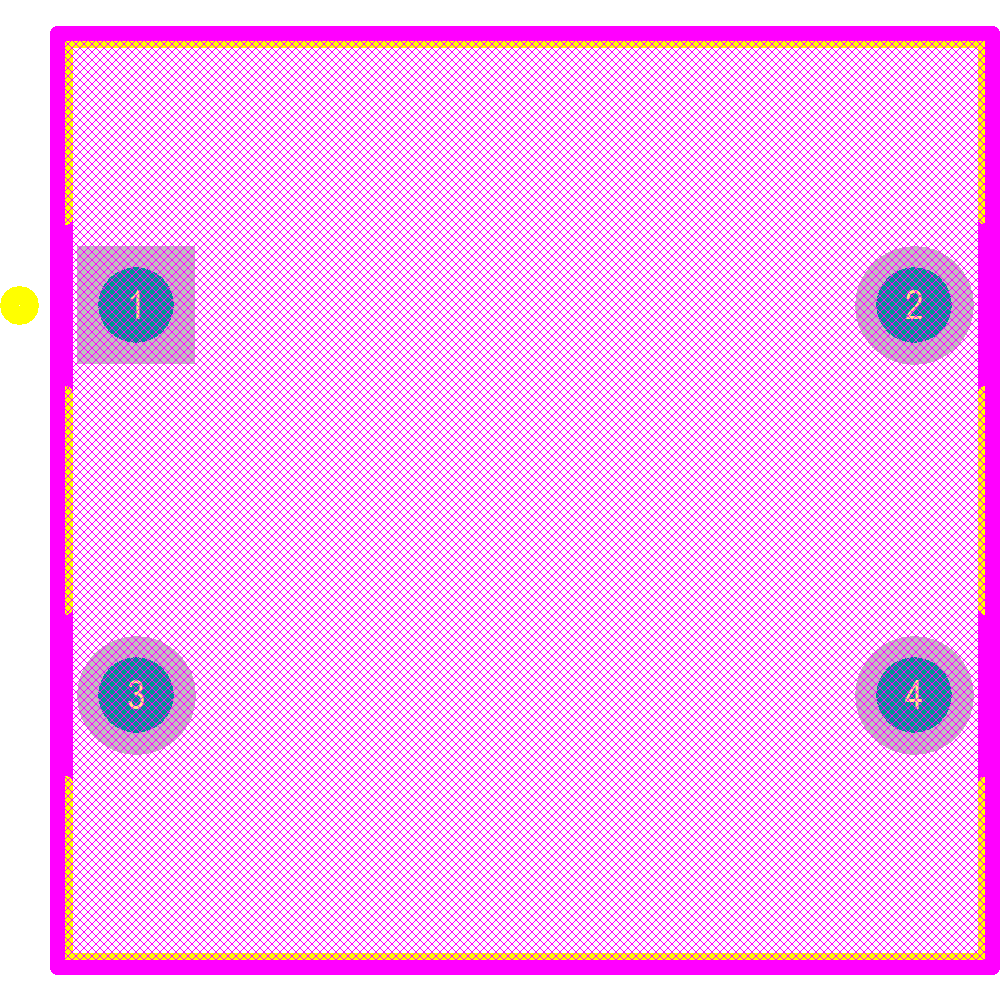

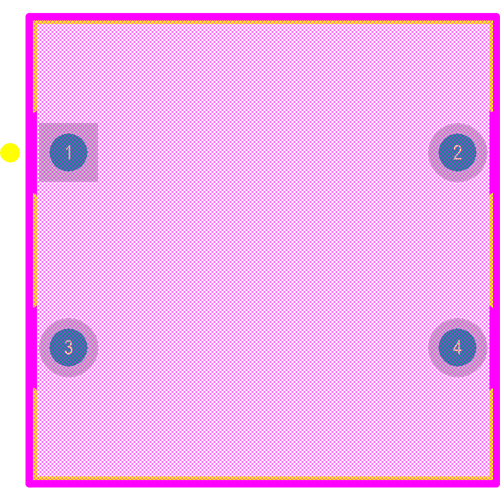

Footprint
