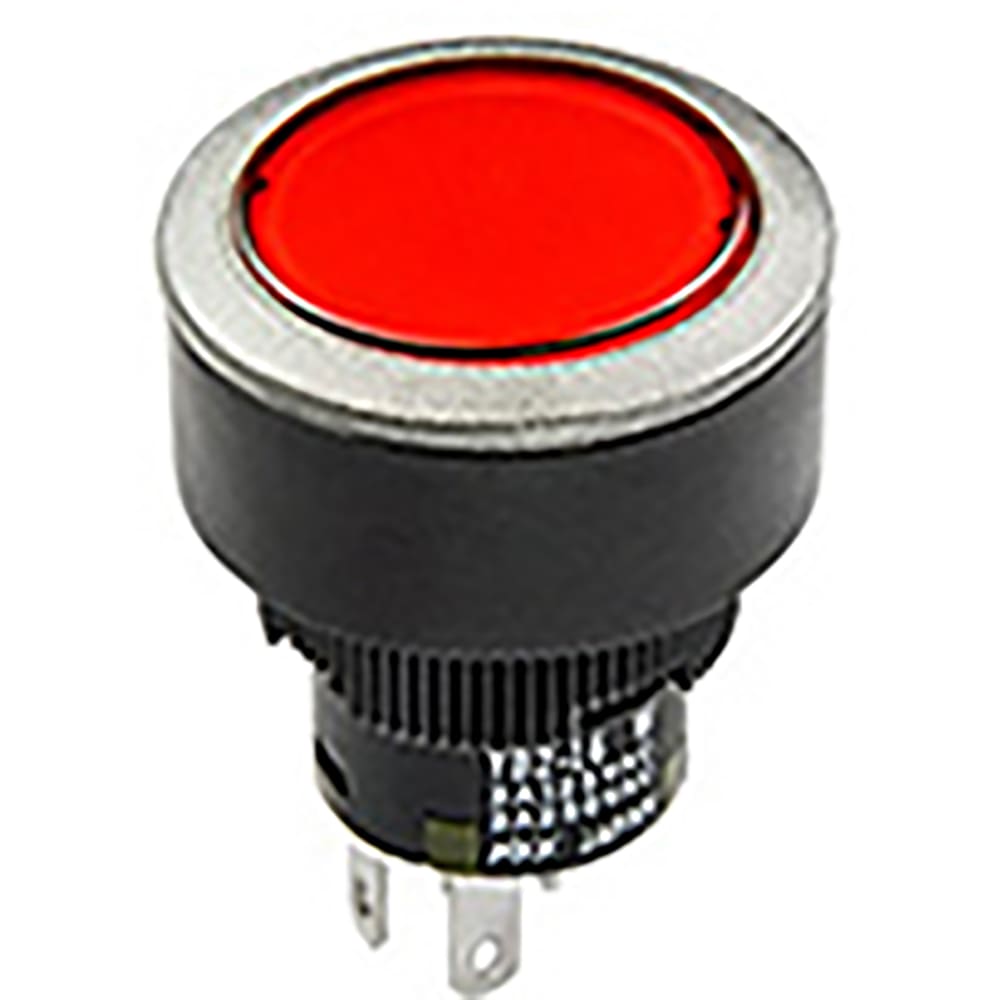

YB215CWCKG01/CUL-N-JB - NKK Switches
Special Switch, SPDT, On-(on), Momentary, Quick Connect Terminal, Panel Mount
Technical Details
| Color | Black |
| Contact Plating | Gold, Tin |
| Contact Resistance | 100mΩ |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Electrical Life | 100kcycles |
| Flammability Rating | UL94 V-0 |
| Height | 26.289mm |
| Housing Material | Polyamide |
| Harmonized Tariff Schedule (HTS) Code | 8536.50.70.00 |
| Illumination Type | Clear |
| Insulation Resistance | 200MΩ |
| Introduction Date | 2014-09-24 |
| Length | 24.9936mm |
| Lifecycle Status | NRND |
| Max Operating Temperature | 50°C |
| Min Operating Temperature | -25°C |
| Mount | Snap-In |
| Power Rating | 400mW |
| REACH SVHC | No |
| RoHS | Compliant |
| Sealable | EPOXY |
| Termination | Solder |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 28V |
| Voltage Rating (DC) | 28V |
Compliance
RoHS : Unconfirmed
REACH SVHC : No
