NTE193 - NTE Electronics
Transistor PNP Silicon 70V IC=1A TO-92HS Case Audio Power Amp | Nte Electronics Inc. NTE193
Technical Details
| Case/Package | TO-92 |
| Collector Base Voltage (VCBO) | 50V |
| Collector Emitter Breakdown Voltage | 50V |
| Collector Emitter Voltage (VCEO) | 50V |
| Emitter Base Voltage (VEBO) | 5V |
| Height | 12.7mm |
| hFE Min | 180 |
| Length | 152.4mm |
| Lifecycle Status | Obsolete |
| Max Collector Current | 500mA |
| Max Operating Temperature | 150°C |
| Max Power Dissipation | 700mW |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Number of Elements | 1 |
| Number of Pins | 3 |
| Number of Terminals | 3 |
| Polarity | PNP |
| Power Dissipation | 1W |
| RoHS | Compliant |
| Transition Frequency | 120MHz |
| Weight | 72.574779g |
| Width | 76.2mm |
Compliance
RoHS : Unconfirmed

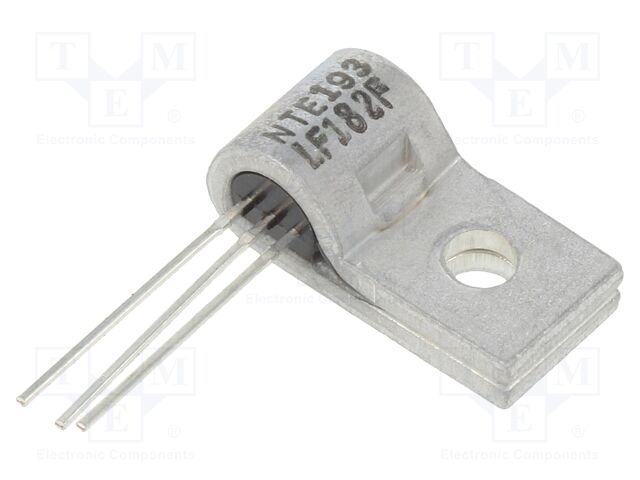

Images
TME
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| NTE Electronics | Obsolete | ||
| NTE Electronics | Obsolete | ||
| NTE Electronics | Obsolete | ||
| Diodes Inc. | Production | ||
| Diodes Inc. | Production | ||
| NTE Electronics | Obsolete | ||
| onsemi | Obsolete | ||
| Diodes Inc. | Production | ||
| STMicroelectronics | Obsolete | ||
| MCC | Obsolete |
Authorized Distributors
| Distributor | SKU | Stock | USD | 1 | 10 | 50 | 100 | 1000 | 10000 | Buy |
|---|---|---|---|---|---|---|---|---|---|---|
| Onlinecomponents.com |
US: 2
|
$ | 1.848 | 1.848 | 1.22 | 1.12 | ||||
| TME |
PL: 22
|
$ | 1.4053 | 1.3314 | 1.3067 | 1.3067 | 1.3067 | 1.3067 | ||
Non-Authorized Distributors
| Distributor | SKU | Stock | USD | 1 | 10 | 50 | 100 | 1000 | 10000 | Buy |
|---|---|---|---|---|---|---|---|---|---|---|
| Quest |
US: 5
|
$ | 2.05 | 1.886 | 1.886 | 1.886 | 1.886 | 1.886 | ||
| Classic Components |
US: 1
|
$ | ||||||||
