NTE2332 - NTE Electronics
Transistor Silicon NPN Darlington 60v+-10 IC-2A TO-220 Case W/internal Zener + Damper Diodes
Technical Details
| Case/Package | TO-220 |
| Collector Base Voltage (VCBO) | 70V |
| Collector Emitter Voltage (VCEO) | 50V |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Emitter Base Voltage (VEBO) | 6V |
| Height | 12.7mm |
| hFE Min | 1000 |
| Harmonized Tariff Schedule (HTS) Code | 8541.29.00.75 |
| Introduction Date | 1992-06-01 |
| Length | 152.4mm |
| Lifecycle Status | Obsolete |
| Max Collector Current | 2A |
| Max Power Dissipation | 20W |
| Mount | Through Hole |
| Number of Elements | 1 |
| Number of Pins | 3 |
| Number of Terminals | 3 |
| Power Dissipation | 20W |
| Transition Frequency | 180MHz |
| Weight | 72.574779g |
| Width | 76.2mm |
Compliance
RoHS : Unconfirmed

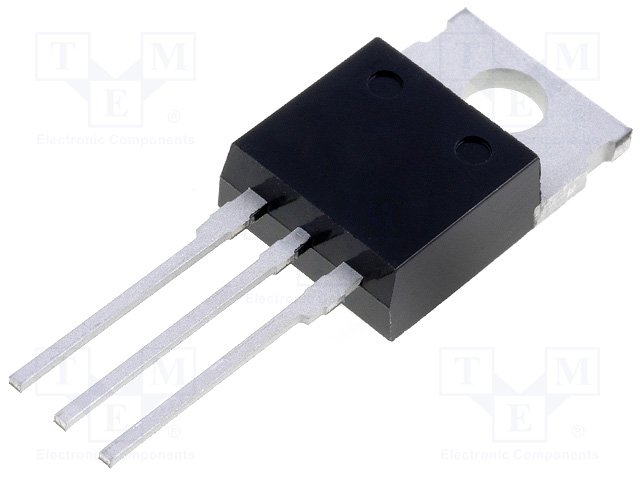

Images
TME
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Sanyo | Obsolete | ||
| ROHM | Obsolete | ||
| Renesas | Obsolete | ||
| NTE Electronics | Obsolete | ||
| NTE Electronics | Obsolete | ||
| Sanyo | Obsolete | ||
| NTE Electronics | Obsolete | ||
| Sanken | Obsolete | ||
| NTE Electronics | Obsolete | ||
| Toshiba | Obsolete |
