NTE241 - NTE Electronics
Transistor NPN Silicon 80V IC=4A TO-220 Case High Voltage Video Amplifier Comp To NTE242
Technical Details
| Case/Package | TO-220 |
| Collector Base Voltage (VCBO) | 80V |
| Collector Emitter Voltage (VCEO) | 80V |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Emitter Base Voltage (VEBO) | 5V |
| Height | 6.35mm |
| hFE Min | 7 |
| Harmonized Tariff Schedule (HTS) Code | 8541.29.00.95 |
| Introduction Date | 1992-06-01 |
| Length | 25.4mm |
| Lifecycle Status | Obsolete |
| Max Collector Current | 4A |
| Max Operating Temperature | 150°C |
| Max Power Dissipation | 60W |
| Min Operating Temperature | -65°C |
| Mount | Through Hole |
| Number of Elements | 1 |
| Number of Pins | 3 |
| Number of Terminals | 3 |
| Power Dissipation | 60W |
| RoHS | Compliant |
| Transition Frequency | 2.5MHz |
| Weight | 453.59237mg |
| Width | 6.35mm |
Compliance
RoHS : Unconfirmed

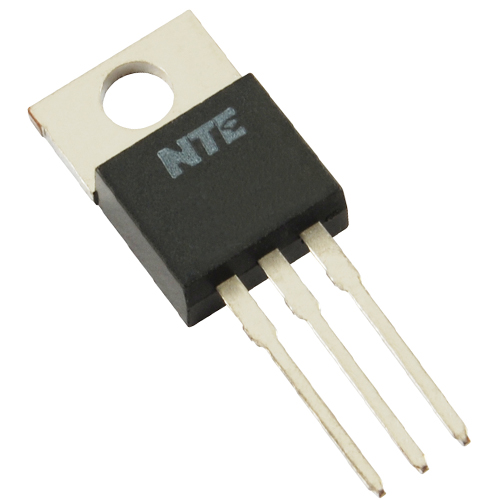

Images
Onlinecomponents.com
Authorized Distributors
| Distributor | SKU | Stock | USD | 1 | 10 | 50 | 100 | 1000 | 10000 | Buy |
|---|---|---|---|---|---|---|---|---|---|---|
| Onlinecomponents.com |
US: 15
|
$ | 1.573 | 1.573 | 1.04 | 0.959 | ||||
