Technical Details
| Current Rating | 1.5A |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Element Configuration | Single |
| Forward Current | 1.5A |
| Forward Voltage | 1V |
| Harmonized Tariff Schedule (HTS) Code | 8541.10.00.80 |
| Introduction Date | 1992-06-01 |
| Length | 9.4996mm |
| Lifecycle Status | Obsolete |
| Max Forward Surge Current (Ifsm) | 50A |
| Max Operating Temperature | 125°C |
| Max Output Current | 1.5A |
| Max Repetitive Reverse Voltage (Vrrm) | 800V |
| Min Breakdown Voltage | 800V |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Number of Elements | 4 |
| Number of Pins | 4 |
| Number of Terminals | 4 |
| Peak Reverse Current | 10µA |
| Reverse Standoff Voltage | 800V |
| RoHS | Non-Compliant |
| Width | 7.112mm |
Compliance
RoHS : Unconfirmed

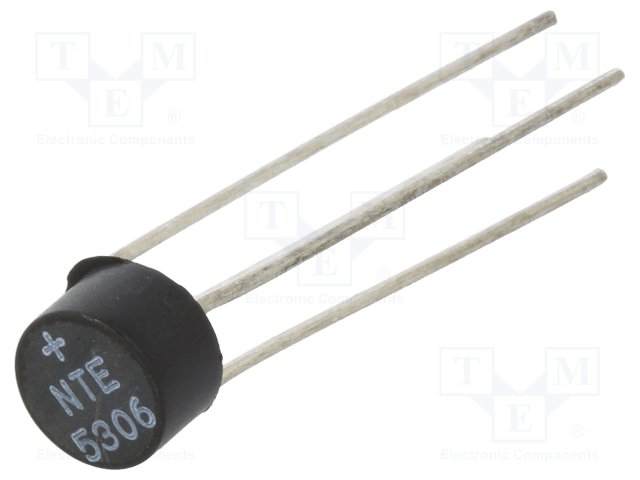

Images
