74HC109N,652 - NXP Semiconductors

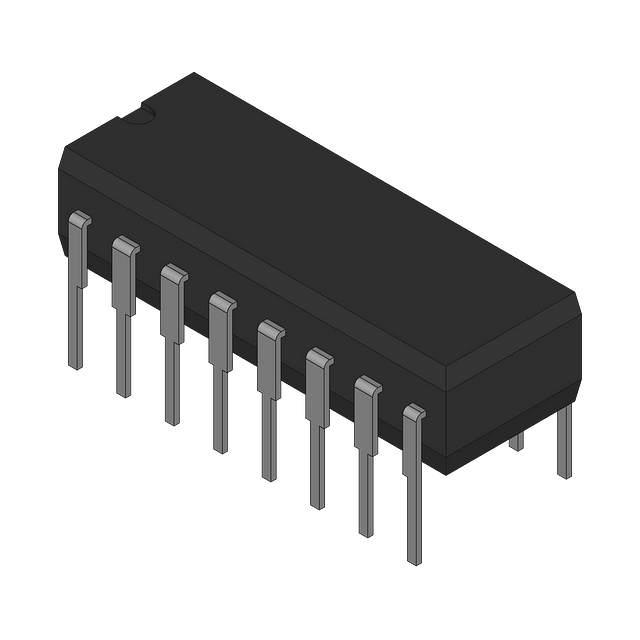

Flip Flop JK# -Type Pos-Edge 2-Element 16-Pin PDIP Bulk
Technical Details
| Case/Package | DIP |
| China RoHS | Compliant |
| Clock Edge Trigger Type | Positive Edge |
| Frequency | 20MHz |
| Height - Seated (Max) | 4.7mm |
| Harmonized Tariff Schedule (HTS) Code | 8542.39.00.01 |
| Introduction Date | 1993-11-01 |
| Length | 21.6mm |
| Lifecycle Status | Obsolete |
| Load Capacitance | 50pF |
| Low Level Output Current | 4mA |
| Max Operating Temperature | 125°C |
| Max Supply Voltage | 6V |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 2V |
| Number of Bits | 2 |
| Number of Circuits | 2 |
| Number of Terminals | 16 |
| Operating Supply Voltage | 4.5V |
| Packaging | Bulk |
| Propagation Delay | 265ns |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Temperature Grade | Automotive |
| Terminal Pitch | 2.54mm |
| Width | 7.62mm |
